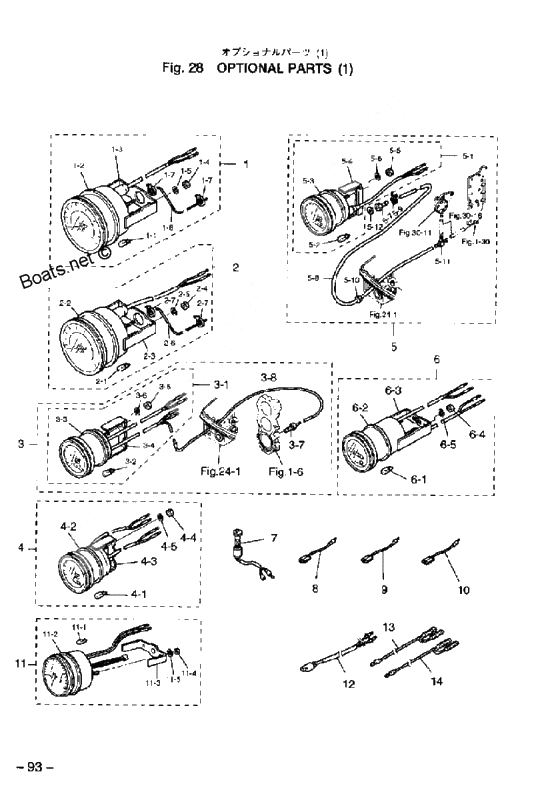

Gauges для Tohatsu M70B - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3E0-72649-0 Speedometer 75mph Kit B
    Speedometer 75mph Kit B
  • 1-1
    3B7-72659-0 Bulb, Meter 12V-1.7W
    Bulb, Meter 12V-1.7W
  • 1-2
    3B7-72656-0 Damper, Meter
    Damper, Meter
  • 1-3
    3B7-72661-0 Plate, Fitting
    Plate, Fitting
  • 1-4
    930203-0500 Nut
    Nut
  • 1-5
    941303-0500 Spring Washer
    Spring Washer
  • 1-6
    3B7-72650-0 Tube, Speedometer 6000mm
    Tube, Speedometer 6000mm
  • 1-7
    3B7-72651-0 Band, Speedometer
    Band, Speedometer
  • 2
    3E0-72648-0 Speedometer 50mph Kit B
    Speedometer 50mph Kit B
  • 3
    3E0-72526-0 Water temperature meter kit
    Water temperature meter kit
  • 3-1
    3E0-72597-0 Water temperature meter ass'y
    Water temperature meter ass'y
  • 3-2
    3B7-72657-0 Bulb, Meter 12V-1.7W
    Bulb, Meter 12V-1.7W
  • 3-3
    3B7-72655-0 Damper, Meter
    Damper, Meter
  • 3-4
    3B7-72662-0 Plate, Fitting
    Plate, Fitting
  • 3-5
    930203-0400 Nut
    Nut
  • 3-6
    941303-0400 Spring Washer
    Spring Washer
  • 3-7
    3B7-72514-0 Sender, water temperature
    Sender, water temperature
  • 3-8
    3B7-72518-0 Lead wire, water temperature meter
    Lead wire, water temperature meter
  • 4
    3E0-72529-0 Voltmeter Ass'y
    Voltmeter Ass'y
  • 5
    3E0-72527-0 Water Pressure Meter Kit
    Water Pressure Meter Kit
  • 5-1
    3E0-72598-0 Water Pressure Meter Ass'y
    Water Pressure Meter Ass'y
  • 5-10
    345-67193-0 Grommet,16-2.5
    Grommet,16-2.5
  • 5-11
    353-70013-0 Соединение трубки
    Соединение трубки
  • 5-12
    121-33159-0 Gasket 2-8-1
    Gasket 2-8-1
  • 5-4
    3B7-72663-0 Plate, Fitting
    Plate, Fitting
  • 5-7
    3B7-72641-0 Nipple, Water Pressure Meter
    Nipple, Water Pressure Meter
  • 5-9
    338-02215-0 Clip
    Clip
  • 6
    3E0-72524-0 Hourmeter Ass'y
    Hourmeter Ass'y
  • 6-3
    3B7-72664-0 Plate Fitting
    Plate Fitting
  • 7
    353-72521-1 Switch Meter Lamp
    Switch Meter Lamp
  • 8
    353-72547-0 Assist Cord(blue)
    Assist Cord(blue)
  • 9
    353-72548-0 Assist Cord(black)
    Assist Cord(black)
  • 10
    353-72546-0 Assist Cord(Red)
    Assist Cord(Red)
  • 11
    3B7-72530-1 Tachometer Ass'y
    UNIQUE-3B8-72530-1- FOR P-PREMIXING TYPE: STD-FOR F-PREMIXING TYPE: OPT
    Tachometer Ass'y
    UNIQUE-3B8-72530-1- FOR P-PREMIXING TYPE: STD-FOR F-PREMIXING TYPE: OPT
  • 12
    361-72539-0 Lead Wire Tachometer
    FOR F TYPE
    Lead Wire Tachometer
    FOR F TYPE
  • 13
    361-72542-0 Separate cord(white)
    FOR F TYPE
    Separate cord(white)
    FOR F TYPE
  • 14
    361-72543-0 Separate cord(yellow)
    FOR F TYPE
    Separate cord(yellow)
    FOR F TYPE
