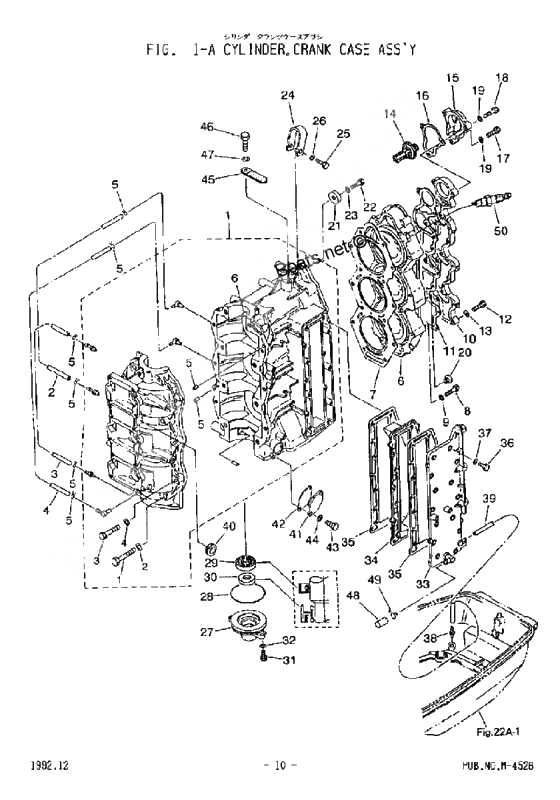

Cylinder, crank case assy для Tohatsu M70B - 2002 года выпуска

  • №
    Артикул
    Название
  • 00
    3F3-01001-0 Cylinder head
    NS60B,NS70B-GRAY
    Cylinder head
    NS60B,NS70B-GRAY
  • 00
    309-06972-0 Clamp,6.5-47.5P
    NS60B,NS70B
    Clamp,6.5-47.5P
    NS60B,NS70B
  • 00
    338-60218-1 Anode
    NS60B,NS70B
    Anode
    NS60B,NS70B
  • 00
    353-01138-0 Water Nipple
    NS60B,NS70B
    Water Nipple
    NS60B,NS70B
  • 00
    353-01030-0 サーモスタット
    NS60B,NS70B
    サーモスタット
    NS60B,NS70B
  • 00
    126-00121-0 Oil seal 30-45-8
    NS60B,NS70B
    Oil seal 30-45-8
    NS60B,NS70B
  • 00
    3F3-01100-0 Cylinder, crank case ass'y
    NS60B,NS70B-BLUE
    Cylinder, crank case ass'y
    NS60B,NS70B-BLUE
  • 00
    3F3-01005-0 Gasket, Cyl. Head
    NS60B,NS70B
    Gasket, Cyl. Head
    NS60B,NS70B
  • 00
    910121-0612 Bolt
    NS60B,NS70B
    Bolt
    NS60B,NS70B
  • 00
    910103-0620 Bolt
    NS60B,NS70B
    Bolt
    NS60B,NS70B
  • 00
    9807-3-0140 Lubrication pipe a
    NS60B,NS70B
    Lubrication pipe a
    NS60B,NS70B
  • 00
    9810-5-0260 Pipe, water nipple
    NS60B,NS70B
    Pipe, water nipple
    NS60B,NS70B
  • 00
    353-01031-0 Cap, thermostat
    NS60B,NS70B-BLUE
    Cap, thermostat
    NS60B,NS70B-BLUE
  • 00
    3F3-01215-0 Oil seal 16.8-28-8
    NS60B,NS70B
    Oil seal 16.8-28-8
    NS60B,NS70B
  • 00
    916-1F086-0 Bolt
    NS60B,NS70B
    Bolt
    NS60B,NS70B
  • 00
    941303-0600 New part
    NS60B,NS70B
    New part
    NS60B,NS70B
  • 00
    3C8-01513-0 NS60B,NS70B-BLUE
    NS60B,NS70B-BLUE
    NS60B,NS70B-BLUE
    NS60B,NS70B-BLUE
  • 00
    9807-3-0230 Lubrication pipe
    NS60B,NS70B
    Lubrication pipe
    NS60B,NS70B
  • 00
    3B7-76093-0 Grommet, 25-5
    NS60B,NS70B
    Grommet, 25-5
    NS60B,NS70B
  • 00
    353-01032-0 Прокладка крышки термостата
    NS60B,NS70B
    Прокладка крышки термостата
    NS60B,NS70B
  • 00
    3F3-02300-0 Exhaust cover, outer
    NS60B,NS70B-BLUE
    Exhaust cover, outer
    NS60B,NS70B-BLUE
  • 00
    3F3-01021-0 Cover, Cylinder Head
    NS60B,NS70B-BLUE
    Cover, Cylinder Head
    NS60B,NS70B-BLUE
  • 00
    3F3-01139-0 Seal cap 5
    NS60B,NS70B
    Seal cap 5
    NS60B,NS70B
  • 00
    9807-3-0360 Lubrication pipe c
    NS60B,NS70B
    Lubrication pipe c
    NS60B,NS70B
  • 00
    3C8-09081-0 Blind plate
    NS60B,NS70B-PREMIXING
    Blind plate
    NS60B,NS70B-PREMIXING
  • 00
    910114-0625 Bolt
    NS60B,NS70B
    Bolt
    NS60B,NS70B
  • 00
    3F3-01024-0 New part
    NS60B,NS70B
    New part
    NS60B,NS70B
  • 00
    338-02215-0 Clip
    NS60B,NS70B
    Clip
    NS60B,NS70B
  • 00
    940121-0800 Washer
    NS60B,NS70B
    Washer
    NS60B,NS70B
  • 00
    338-01133-0 Clip
    NS60B,NS70B
    Clip
    NS60B,NS70B
  • 00
    3C8-09082-0 Gasket blind plate
    NS60B,NS70B-PREMIXING
    Gasket blind plate
    NS60B,NS70B-PREMIXING
  • 00
    940-13060-0 Washer
    NS60B,NS70B
    Washer
    NS60B,NS70B
  • 00
    3F3-02302-0 Exhaust cover, inner
    NS60B,NS70B
    Exhaust cover, inner
    NS60B,NS70B
  • 00
    910-1E062-5 Bolt
    NS60B,NS70B
    Bolt
    NS60B,NS70B
  • 00
    9701-0-1009 New part
    NS60B,NS70B-NGK B8HS-10
    New part
    NS60B,NS70B-NGK B8HS-10
  • 00
    3F3-01291-0 Lower head crank case
    NS60B,NS70B
    Lower head crank case
    NS60B,NS70B
  • 00
    910103-0616 Bolt
    NS60B,NS70B-PREMIXING
    Bolt
    NS60B,NS70B-PREMIXING
  • 00
    3B7-01046-0 Plug
    NS60B,NS70B
    Plug
    NS60B,NS70B
  • 00
    3F3-02305-0 Gasket, exhaust cover
    NS60B,NS70B
    Gasket, exhaust cover
    NS60B,NS70B
  • 00
    940-1D060-0 Washer
    NS60B,NS70B
    Washer
    NS60B,NS70B
  • 00
    9701-0-1016 Spark plug ngk bp8hs-10
    NS60B,NS70B-NGK BE8HS-10 FOR CANADA
    Spark plug ngk bp8hs-10
    NS60B,NS70B-NGK BE8HS-10 FOR CANADA
  • 9701-0-1009 Spark plug ngk bp8hs-10
    Spark plug ngk bp8hs-10
  • 00
    151-00053-0 O-Ring
    NS60B,NS70B
    O-Ring
    NS60B,NS70B
  • 01
    3F3-01114-0 Bolt 10-60
    NS60B,NS70B
    Bolt 10-60
    NS60B,NS70B
  • 02
    3B7-01116-0 Washer
    NS60B,NS70B
    Washer
    NS60B,NS70B
  • 04
    345-01015-0 Washer
    NS60B,NS70B
    Washer
    NS60B,NS70B
  • 05
    345-01111-0 Dowel Pin 6-12
    NS60B,NS70B
    Dowel Pin 6-12
    NS60B,NS70B
  • 06
    345-00117-0 Dowel Pin
    NS60B,NS70B
    Dowel Pin
    NS60B,NS70B
