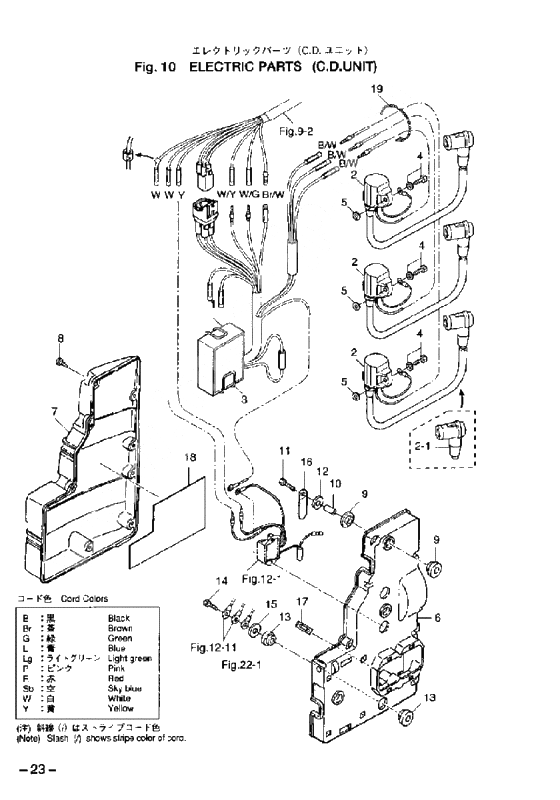

Electric parts (c.d. unit) для Tohatsu M70B - 2002 года выпуска`
-
№АртикулНазвание
-
003F3-06920-0 Mount Rubber 9-12-2
NS60B,NS70BMount Rubber 9-12-2
NS60B,NS70B -
003B7-06165-0 Band, c.d. unit
NS60B,NS70BBand, c.d. unit
NS60B,NS70B -
00309-06972-0 Clamp,6.5-47.5P
NS60B,NS70BClamp,6.5-47.5P
NS60B,NS70B -
00353-76079-0 Collar 6.2-9-9.3
NS60B,NS70BCollar 6.2-9-9.3
NS60B,NS70B -
00910103-0620 Bolt
NS60B,NS70BBolt
NS60B,NS70B -
00353-76213-0 Fuse(20ah)
NS60B,NS70BFuse(20ah)
NS60B,NS70B -
00910114-0625 Bolt
NS60B,NS70BBolt
NS60B,NS70B -
00940-13060-0 Washer
NS60B,NS70BWasher
NS60B,NS70B -
003F3-72028-0 Label wiring diagram
NS60B,NS70BLabel wiring diagram
NS60B,NS70B -
003C8-66308-0 New part
NS60B,NS70BNew part
NS60B,NS70B -
003F3-06901-0 Electric bracket
NS60B,NS70BElectric bracket
NS60B,NS70B -
00345-67113-0 Mount Rubber
NS60B,NS70BMount Rubber
NS60B,NS70B -
003F3-06902-0 Cover electric bracket
NS60B,NS70BCover electric bracket
NS60B,NS70B -
00910103-0616 Bolt
NS60B,NS70BBolt
NS60B,NS70B -
003C8-02423-0 Screw
NS60B,NS70BScrew
NS60B,NS70B -
003F3-06160-0 C.D. Unit
NS60B,NS70BC.D. Unit
NS60B,NS70B -
00346-67115-0 Washer
NS60B,NS70BWasher
NS60B,NS70B -
13F3-06060-1 C.D. UnitC.D. Unit
-
2-13C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
33B7-06165-0 Band, c.d. unitBand, c.d. unit
-
5151-33159-0 Gasket,combination gaugeGasket,combination gauge
-
63F3-06901-0 Electric bracketElectric bracket
-
73F3-06902-0 Cover electric bracketCover electric bracket
-
83F3-02423-0 Screw 5-30Screw 5-30
-
93F3-06920-0 Mount Rubber 9-12-2Mount Rubber 9-12-2
-
10353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
11910103-0625 BoltBolt
-
123C8-66308-0 New partNew part
-
13345-67113-0 Mount RubberMount Rubber
-
14910103-0616 BoltBolt
-
15346-67115-0 WasherWasher
-
16309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
17353-76213-0 Fuse(20ah)Fuse(20ah)
-
183F3-72028-0 Label wiring diagramLabel wiring diagram
-
19336-76091-0 Band Battery CordBand Battery Cord
