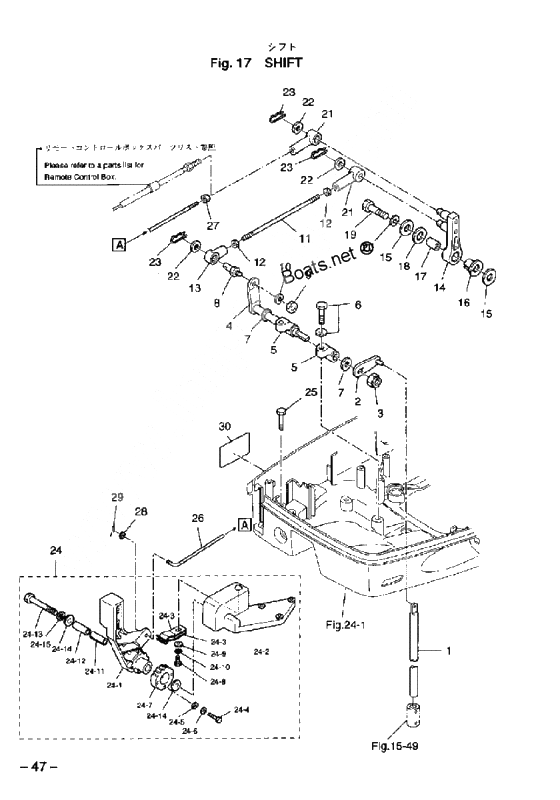

Shift для Tohatsu M60B - 2002 года выпуска
-
№АртикулНазвание
-
00353-66145-1 Holder shift lever shaft
NS60B,NS70BHolder shift lever shaft
NS60B,NS70B -
003B7-63732-0 Collar, 8.4-12-17
NS60B,NS70BCollar, 8.4-12-17
NS60B,NS70B -
003F3-05222-0 Rod 5-70
NS60B,NS70BRod 5-70
NS60B,NS70B -
00353-72013-0 Label clutch
NS60B,NS70B FOR EFO/EFTOLabel clutch
NS60B,NS70B FOR EFO/EFTO -
003B7-80403-0 Shift lever ass'y
NS60B,NS70B FOR EFO/EFTO-BLUEShift lever ass'y
NS60B,NS70B FOR EFO/EFTO-BLUE -
00910114-0825 Bolt
NS60B,NS70BBolt
NS60B,NS70B -
003B7-63731-0 Washer
NS60B,NS70BWasher
NS60B,NS70B -
003B2-83865-0 Nut(No,10-32VNF)
NS60B,NS70BNut(No,10-32VNF)
NS60B,NS70B -
00951403-3516 New part
NS60B,NS70B FOR EFO/EFTONew part
NS60B,NS70B FOR EFO/EFTO -
003B7S80403-0 Shift lever ass'y
NS60B,NS70B FOR EFO/EFTO-GRAYShift lever ass'y
NS60B,NS70B FOR EFO/EFTO-GRAY -
00940-13080-0 Washer
NS60B,NS70BWasher
NS60B,NS70B -
00916103-0835 Bolt
NS60B,NS70BBolt
NS60B,NS70B -
00353-66215-1 New part
NS60B,NS70BNew part
NS60B,NS70B -
003A3-83715-0 Cable Joint
NS60B,NS70BCable Joint
NS60B,NS70B -
00332-61315-0 Washer
NS60B,NS70BWasher
NS60B,NS70B -
00910114-0625 Bolt
NS60B,NS70B FOR EFO/EFTOBolt
NS60B,NS70B FOR EFO/EFTO -
00941303-0800 Spring Washer
NS60B,NS70BSpring Washer
NS60B,NS70B -
00353-66110-0 Shift Rod Lever
NS60B,NS70BShift Rod Lever
NS60B,NS70B -
003B7-66122-0 Shift Arm
NS60B,NS70BShift Arm
NS60B,NS70B -
00353-83728-0 Cable Pin
NS60B,NS70BCable Pin
NS60B,NS70B -
353-83728-1 Cable PinCable Pin
-
003F3-66134-0 Rod shift lever stopper
NS60B,NS70B FOR EFO/EFTORod shift lever stopper
NS60B,NS70B FOR EFO/EFTO -
003B7-83715-0 Cable Joint
NS60B,NS70BCable Joint
NS60B,NS70B -
00930403-1000 Nylon Nut
NS60B,NS70BNylon Nut
NS60B,NS70B -
003B7-63730-0 Washer
NS60B,NS70BWasher
NS60B,NS70B -
00930103-0600 Nut
NS60B,NS70BNut
NS60B,NS70B -
00940-13050-0 Washer
NS60B,NS70B FOR EFO/EFTOWasher
NS60B,NS70B FOR EFO/EFTO -
00353-83719-0 Washer
NS60B,NS70BWasher
NS60B,NS70B -
003B7-66225-0 Shift lever shaft(for p type)
NS60B,NS70BShift lever shaft(for p type)
NS60B,NS70B -
003B7-63713-0 Bushing
NS60B,NS70BBushing
NS60B,NS70B -
00941303-0600 New part
NS60B,NS70BNew part
NS60B,NS70B -
00951503-0212 Split Pin
NS60B,NS70B FOR EFO/EFTOSplit Pin
NS60B,NS70B FOR EFO/EFTO -
00951603-0800 R-Pin
NS60B,NS70BR-Pin
NS60B,NS70B -
013B7-66110-0 Shift Lever
NS60B,NS70B FOR EFO/EFTO-BLUEShift Lever
NS60B,NS70B FOR EFO/EFTO-BLUE -
1353-66215-1 New partNew part
-
023B7-66115-0 Bracket, shift lever
NS60B,NS70B FOR EFO/EFTO-BLUEBracket, shift lever
NS60B,NS70B FOR EFO/EFTO-BLUE -
02NS7-66115-0 Bracket, shift lever
NS60B,NS70B FOR EFO/EFTO-GRAYBracket, shift lever
NS60B,NS70B FOR EFO/EFTO-GRAY -
2353-66110-0 Shift Rod LeverShift Rod Lever
-
033B2-66112-0 Stopper, shift lever
NS60B,NS70B FOR EFO/EFTOStopper, shift lever
NS60B,NS70B FOR EFO/EFTO -
3930403-1000 Nylon NutNylon Nut
-
04910103-0420 Bolt
NS60B,NS70B FOR EFO/EFTOBolt
NS60B,NS70B FOR EFO/EFTO -
43B7-66225-0 Shift lever shaft(for p type)Shift lever shaft(for p type)
-
05940-13040-0 Washer, consent
NS60B,NS70B FOR EFO/EFTOWasher, consent
NS60B,NS70B FOR EFO/EFTO -
5353-66145-1 Holder shift lever shaftHolder shift lever shaft
-
06941303-0400 Spring Washer
NS60B,NS70B FOR EFO/EFTOSpring Washer
NS60B,NS70B FOR EFO/EFTO -
6910103-5825 BoltBolt
-
073B7-66121-0 Stopper plate, shift lever
NS60B,NS70B FOR EFO/EFTOStopper plate, shift lever
NS60B,NS70B FOR EFO/EFTO -
7332-61315-0 WasherWasher
-
08910103-0616 Bolt
NS60B,NS70B FOR EFO/EFTOBolt
NS60B,NS70B FOR EFO/EFTO -
8353-83728-0 Cable PinCable Pin
-
353-83728-1 Cable PinCable Pin
-
09940-13060-0 Washer
NS60B,NS70B FOR EFO/EFTOWasher
NS60B,NS70B FOR EFO/EFTO -
9930103-0600 NutNut
-
10941303-0600 New partNew part
-
11346-62437-0 Bushing
NS60B,NS70B FOR EFO/EFTOBushing
NS60B,NS70B FOR EFO/EFTO -
113F3-05222-0 Rod 5-70Rod 5-70
-
123B7-66124-0 Collar, 8.1-10.5-31.7
NS60B,NS70B FOR EFO/EFTOCollar, 8.1-10.5-31.7
NS60B,NS70B FOR EFO/EFTO -
123B2-83865-0 Nut(No,10-32VNF)Nut(No,10-32VNF)
-
133A3-83715-0 Cable JointCable Joint
-
13910-13088-0 Bolt
NS60B,NS70B FOR EFO/EFTOBolt
NS60B,NS70B FOR EFO/EFTO -
143B7-66122-0 Shift ArmShift Arm
-
153B7-63730-0 WasherWasher
-
163B7-63713-0 BushingBushing
-
173B7-63732-0 Collar, 8.4-12-17Collar, 8.4-12-17
-
183B7-63731-0 WasherWasher
-
19910103-0835 BoltBolt
-
20941303-0800 Spring WasherSpring Washer
-
213B7-83715-0 Cable JointCable Joint
-
22353-83719-0 WasherWasher
-
23951603-0800 R-PinR-Pin
-
243B7S80403-0 Shift lever ass'yShift lever ass'y
-
24-11346-62437-0 BushingBushing
-
24-123B7-66124-0 Collar, 8.1-10.5-31.7Collar, 8.1-10.5-31.7
-
24-13910103-0855 BoltBolt
-
24-14940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
24-23B7S66115-0 Bracket shift leverBracket shift lever
-
24-4910103-0420 BoltBolt
-
24-5940103-0400 WasherWasher
-
24-6941303-0400 Spring WasherSpring Washer
-
24-73B7-66121-0 Stopper plate, shift leverStopper plate, shift lever
-
24-8910103-0616 BoltBolt
-
24-9940103-0600 WasherWasher
-
25-33B2-66112-0 Stopper, shift leverStopper, shift lever
-
263F3-66134-0 Rod shift lever stopper
FOR F TYPERod shift lever stopper
FOR F TYPE -
28940103-0500 Washer
FOR F TYPEWasher
FOR F TYPE -
29951503-0212 Split Pin
FOR F TYPESplit Pin
FOR F TYPE -
30353-72013-0 Label clutch
FOR F TYPELabel clutch
FOR F TYPE
