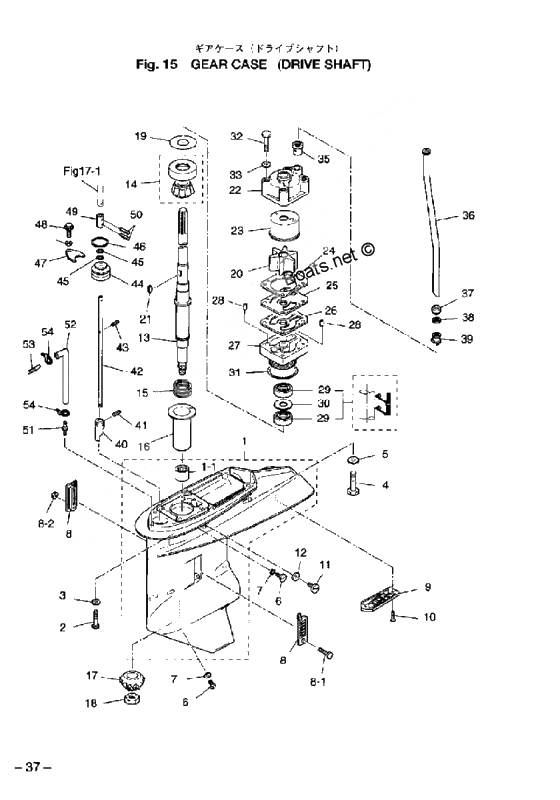

Gear case (drive shaft) (cont.) для Tohatsu M60B - 2002 года выпуска
-
№АртикулНазвание
-
13F3S60090-2 Gear case ass'y
W/SUB WATER PIPEGear case ass'y
W/SUB WATER PIPE -
1-1353-60211-0 New partNew part
-
3940203-0800 WasherWasher
-
43B7-60001-2 Bolt, 10-40Bolt, 10-40
-
6332-60005-1 Oil plugOil plug
-
332-60005-2 Oil plugOil plug
-
7332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
83B7-60235-0 Water Strainer SetWater Strainer Set
-
8-1921503-0438 Stud BoltStud Bolt
-
10921503-0612 Stud BoltStud Bolt
-
113B7-60015-0 Water PlugWater Plug
-
3B7-60015-1 Water PlugWater Plug
-
123B7-60016-0 O-RingO-Ring
-
133F3-64303-0 Drive Shaft UL
FOR TRANSOM XLDrive Shaft UL
FOR TRANSOM XL -
133F3-64302-0 Drive shaft l
FOR TRANSOM LDrive shaft l
FOR TRANSOM L -
143F3-60213-0 Taper roller bearing 33205jrTaper roller bearing 33205jr
-
15353-64327-0 Пружина валаПружина вала
-
163A3-64328-0 Guide Drive Shaft SpringGuide Drive Shaft Spring
-
173F3-64020-0 Bevel Gear BBevel Gear B
-
18353-64027-0 Nut Bevel Gear BNut Bevel Gear B
-
19353-64082-0 Shim 44-50.5-0.15Shim 44-50.5-0.15
-
19353-64083-0 Shim 44-50.5-0.3Shim 44-50.5-0.3
-
19353-64081-0 Shim 44-50.5-0.1Shim 44-50.5-0.1
-
203B7-65021-1 Impeller (60/70b-c 90a)Impeller (60/70b-c 90a)
-
3B7-65021-2 Impeller (60/70b-c 90a)Impeller (60/70b-c 90a)
-
213B7-65022-0 Key, water pump impellerKey, water pump impeller
-
223B7-65016-0 Upper pump case ass'yUpper pump case ass'y
-
233B7-65011-0 New partNew part
-
243B7-65018-0 Прокладка насосаПрокладка насоса
-
253F3-65025-1 Guide Plate Water PumpGuide Plate Water Pump
-
263B7-65029-0 Gasket, guide plateGasket, guide plate
-
273F3-65017-1 Pump Case LowerPump Case Lower
-
28334-65012-0 СтопорСтопор
-
293F3-60223-0 Oil Seal 22-37-8Oil Seal 22-37-8
-
303F3-64084-0 Shim,36.5-30-0.5Shim,36.5-30-0.5
-
31345-65015-0 O-RingO-Ring
-
33940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
353B7-65014-0 Lower seal rubber, water pipeLower seal rubber, water pipe
-
363F3-65110-0 Water Pipe L
FOR TRANSOM LWater Pipe L
FOR TRANSOM L -
363F3-65120-0 Water pipe xl
FOR TRANSOM XLWater pipe xl
FOR TRANSOM XL -
37345-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
38345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
39346-65204-0 Lock Rubber Water PipeLock Rubber Water Pipe
-
40353-66011-1 Clutch CamClutch Cam
-
41951403-3514 Spring WasherSpring Washer
-
42353-66013-1 Cam Rod L
FOR TRANSOM LCam Rod L
FOR TRANSOM L -
42353-66014-1 Cam Rod UL
FOR TRANSOM XLCam Rod UL
FOR TRANSOM XL -
43951403-3510 New partNew part
-
443B7-66031-1 Bushing, Cam Rod / O-Ring,1.9-6.8Bushing, Cam Rod / O-Ring,1.9-6.8
-
45345-66021-0 O-RingO-Ring
-
463B7-66023-0 O-RingO-Ring
-
47353-66024-0 StopperStopper
-
48910103-6612 BoltBolt
-
49353-66241-1 New partNew part
-
50951403-3516 New partNew part
-
513C7-60017-0 Nipple 6-1/8Nipple 6-1/8
-
533C7-60018-0 ЗолотникЗолотник
-
54353-84398-0 Band Lead WireBand Lead Wire
