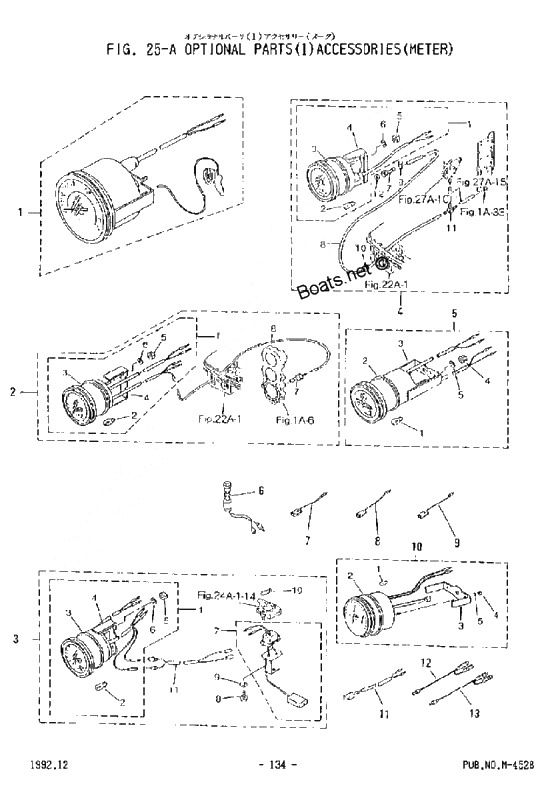

Meter для Tohatsu M60B - 2002 года выпуска

  • №
    Артикул
    Название
  • 00
    353-72521-1 Switch Meter Lamp
    NS60B,NS70B
    Switch Meter Lamp
    NS60B,NS70B
  • 00
    361-72539-0 Lead Wire Tachometer
    NS60B,NS70B FOR EFO/EFTO
    Lead Wire Tachometer
    NS60B,NS70B FOR EFO/EFTO
  • 00
    385-72522-0 СП
    NS60B,NS70B
    СП
    NS60B,NS70B
  • 00
    353-72547-0 Assist Cord(blue)
    NS60B,NS70B
    Assist Cord(blue)
    NS60B,NS70B
  • 00
    361-72542-0 Separate cord(white)
    NS60B,NS70B FOR EFO/EFTO
    Separate cord(white)
    NS60B,NS70B FOR EFO/EFTO
  • 00
    3B8-72526-0 Water temprature meter kit
    NS60B,NS70B UNIT SET
    Water temprature meter kit
    NS60B,NS70B UNIT SET
  • 00
    353-72548-0 Assist Cord(black)
    NS60B,NS70B
    Assist Cord(black)
    NS60B,NS70B
  • 00
    361-72543-0 Separate cord(yellow)
    NS60B,NS70B
    Separate cord(yellow)
    NS60B,NS70B
  • 00
    353-72546-0 Assist Cord(Red)
    NS60B,NS70B
    Assist Cord(Red)
    NS60B,NS70B
  • 01
    3E0-72597-0 Water temperature meter ass'y
    NS60B,NS70B
    Water temperature meter ass'y
    NS60B,NS70B
  • 01
    3B7-72598-0 Water Pressure Meter Ass'y
    NS60B,NS70B
    Water Pressure Meter Ass'y
    NS60B,NS70B
  • 01
    3B7-72659-0 Bulb, Meter 12V-1.7W
    NS60B,NS70B FOR EFO/EFTO
    Bulb, Meter 12V-1.7W
    NS60B,NS70B FOR EFO/EFTO
  • 02
    3B7-72657-0 Bulb, Meter 12V-1.7W
    NS60B,NS70B
    Bulb, Meter 12V-1.7W
    NS60B,NS70B
  • 02
    3B7-72656-0 Damper, Meter
    NS60B,NS70B FOR EFO/EFTO
    Damper, Meter
    NS60B,NS70B FOR EFO/EFTO
  • 03
    3B7-72655-0 Damper, Meter
    NS60B,NS70B
    Damper, Meter
    NS60B,NS70B
  • 03
    3B7-72664-0 Plate Fitting
    NS60B,NS70B
    Plate Fitting
    NS60B,NS70B
  • 03
    3B7-72661-0 Plate, Fitting
    NS60B,NS70B FOR EFO/EFTO
    Plate, Fitting
    NS60B,NS70B FOR EFO/EFTO
  • 04
    3B7-72663-0 Plate, Fitting
    NS60B,NS70B
    Plate, Fitting
    NS60B,NS70B
  • 04
    3B7-72662-0 Plate, Fitting
    NS60B,NS70B
    Plate, Fitting
    NS60B,NS70B
  • 05
    930203-0400 Nut
    NS60B,NS70B
    Nut
    NS60B,NS70B
  • 05
    930203-0500 Nut
    NS60B,NS70B
    Nut
    NS60B,NS70B
  • 06
    941303-0400 Spring Washer
    NS60B,NS70B
    Spring Washer
    NS60B,NS70B
  • 07
    3B7-72514-0 Sender, water temperature
    NS60B,NS70B
    Sender, water temperature
    NS60B,NS70B
  • 07
    3B7-72641-0 Nipple, Water Pressure Meter
    NS60B,NS70B
    Nipple, Water Pressure Meter
    NS60B,NS70B
  • 08
    9810-5-6000 Fuel pipe 5mm (1 ea.=1 meter)
    NS60B,NS70B
    Fuel pipe 5mm (1 ea.=1 meter)
    NS60B,NS70B
  • 98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)
    Fuel pipe 5mm (1 ea.=1 meter)
  • 08
    3B7-72518-0 Lead wire, water temperature meter
    NS60B,NS70B
    Lead wire, water temperature meter
    NS60B,NS70B
  • 08
    921503-5510 Stud Bolt
    NS60B,NS70B
    Stud Bolt
    NS60B,NS70B
  • 09
    941303-0500 Spring Washer
    NS60B,NS70B
    Spring Washer
    NS60B,NS70B
  • 09
    338-02215-0 Clip
    NS60B,NS70B
    Clip
    NS60B,NS70B
  • 10
    309-06972-0 Clamp,6.5-47.5P
    NS60B,NS70B
    Clamp,6.5-47.5P
    NS60B,NS70B
  • 10
    345-67193-0 Grommet,16-2.5
    NS60B,NS70B
    Grommet,16-2.5
    NS60B,NS70B
  • 11
    3B7-72652-0 Cord, fuel meter
    NS60B,NS70B
    Cord, fuel meter
    NS60B,NS70B
  • 11
    353-70013-0 Соединение трубки
    NS60B,NS70B
    Соединение трубки
    NS60B,NS70B
  • 12
    121-33159-0 Gasket 2-8-1
    NS60B,NS70B
    Gasket 2-8-1
    NS60B,NS70B
