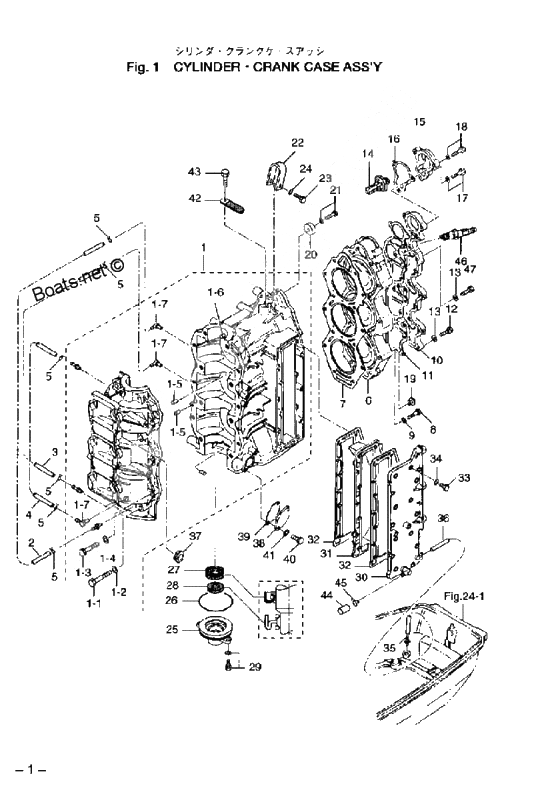

Cylinder, crank case ass'y для Tohatsu M60B - 2002 года выпуска`
-
№АртикулНазвание
-
13F3B01100-0 Cylinder, crank case ass'yCylinder, crank case ass'y
-
13F3-01114-0 Bolt 10-60Bolt 10-60
-
1-1353-00115-0 WasherWasher
-
1-2353-00118-0 Ball bearing 6306Ball bearing 6306
-
1-43F3-09060-0 Drive gear, oil pumpDrive gear, oil pump
-
23B7-01116-0 WasherWasher
-
4345-01015-0 WasherWasher
-
5345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
5338-01133-0 ClipClip
-
6345-00117-0 Dowel PinDowel Pin
-
63F3B01001-0 Головка цилиндровГоловка цилиндров
-
73B2-01160-0 Check valve nipple assyCheck valve nipple assy
-
73F3-01005-0 Gasket, Cyl. HeadGasket, Cyl. Head
-
103F3B01021-0 Cover, Cylinder HeadCover, Cylinder Head
-
113F3-01024-0 New partNew part
-
12910121-0625 BoltBolt
-
13940121-0600 WasherWasher
-
143C7-01030-0 New partNew part
-
153B7B01031-0 Cap thermostatCap thermostat
-
16353-01032-0 Прокладка крышки термостатаПрокладка крышки термостата
-
193B7-01046-0 PlugPlug
-
20338-60218-2 New partNew part
-
223C8B01513-0 HangerHanger
-
24940121-0800 WasherWasher
-
253F3-01291-0 Lower head crank caseLower head crank case
-
26151-00053-0 O-RingO-Ring
-
27126-00121-0 Oil seal 30-45-8Oil seal 30-45-8
-
283F3-01215-0 Oil seal 16.8-28-8Oil seal 16.8-28-8
-
303F3B02300-0 Exhaust cover, outerExhaust cover, outer
-
313F3B02302-0 Exhaust cover,innerExhaust cover,inner
-
323F3-02305-1 Gasket,exhaust coverGasket,exhaust cover
-
33910124-0625 BoltBolt
-
35353-01138-0 Water NippleWater Nipple
-
373B7-76093-0 Grommet, 25-5Grommet, 25-5
-
383C8-09081-1 Blind plate
FOR PREMIXINGBlind plate
FOR PREMIXING -
393C8-09082-0 Gasket blind plate
FOR PREMIXINGGasket blind plate
FOR PREMIXING -
40910103-0616 Bolt
FOR PREMIXINGBolt
FOR PREMIXING -
41940103-0600 Washer
FOR PREMIXINGWasher
FOR PREMIXING -
42309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
43910103-0612 New partNew part
-
443F3-01139-0 Seal cap 5Seal cap 5
-
45338-02215-0 ClipClip
-
469701-0-1009 New part
NGK-B8HS-10New part
NGK-B8HS-10 -
47916124-0628 BoltBolt
