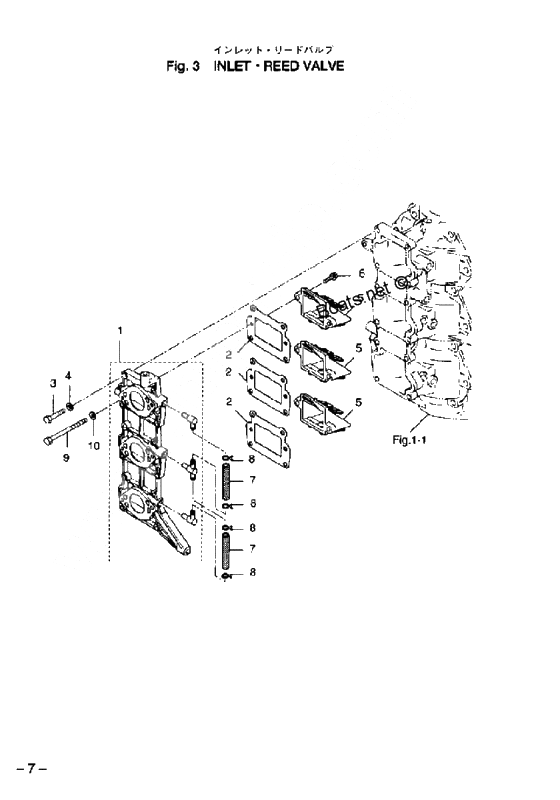

Inlet, reed valve для Tohatsu M60B - 2002 года выпуска
-
№АртикулНазвание
-
003F3-02100-0 Reed Valve Ass'y
NS60B,NS70BReed Valve Ass'y
NS60B,NS70B -
003B7-05229-0 Cap b, ball joint
NS60B,NS70BCap b, ball joint
NS60B,NS70B -
003F3-02415-0 Cover air silencer
NS60B,NS70BCover air silencer
NS60B,NS70B -
00921521-6516 Stud Bolt
NS60B,NS70BStud Bolt
NS60B,NS70B -
003B7-05243-0 New part
NS60B,NS70BNew part
NS60B,NS70B -
003F3-02020-0 Inlet manifold ass'y
NS60B,NS70B-BLUEInlet manifold ass'y
NS60B,NS70B-BLUE -
003F3-02418-0 Seal rubber air silencer
NS60B,NS70BSeal rubber air silencer
NS60B,NS70B -
009810-5-0087 Pipe a, l-nipple
NS60B,NS70BPipe a, l-nipple
NS60B,NS70B -
003F3-02012-0 O-Ring
NS60B,NS70BO-Ring
NS60B,NS70B -
003C8-02423-0 Screw
NS60B,NS70BScrew
NS60B,NS70B -
00338-02215-0 Clip
NS60B,NS70BClip
NS60B,NS70B -
003F3-72015-0 Label choke
NS60B,NS70BLabel choke
NS60B,NS70B -
003F3-02104-0 Gasket inlet manifold
NS60B,NS70BGasket inlet manifold
NS60B,NS70B -
003F3-67191-0 C-link 3-97
NS60B,NS70BC-link 3-97
NS60B,NS70B -
00916-1D069-5 Bolt
NS60B,NS70BBolt
NS60B,NS70B -
003C7-03271-0 O-Ring
NS60B,NS70BO-Ring
NS60B,NS70B -
00910124-0625 Bolt
NS60B,NS70BBolt
NS60B,NS70B -
00346-67196-1 Rod Snap 3-b
NS60B,NS70BRod Snap 3-b
NS60B,NS70B -
003F3-02411-0 Air Silencer
NS60B,NS70BAir Silencer
NS60B,NS70B -
00940-1D060-0 Washer
NS60B,NS70BWasher
NS60B,NS70B -
003F3-63709-0 Rod 5-77
NS60B,NS70BRod 5-77
NS60B,NS70B -
003C8-02417-0 Lock plate air silencer
NS60B,NS70BLock plate air silencer
NS60B,NS70B -
13F3B02020-0 Inlet manifold ass'yInlet manifold ass'y
-
23F3-02104-0 Gasket inlet manifoldGasket inlet manifold
-
3910124-0625 BoltBolt
-
4940121-0600 WasherWasher
-
53F3-02100-0 Reed Valve Ass'yReed Valve Ass'y
-
6921521-6516 Stud BoltStud Bolt
-
8338-02215-0 ClipClip
