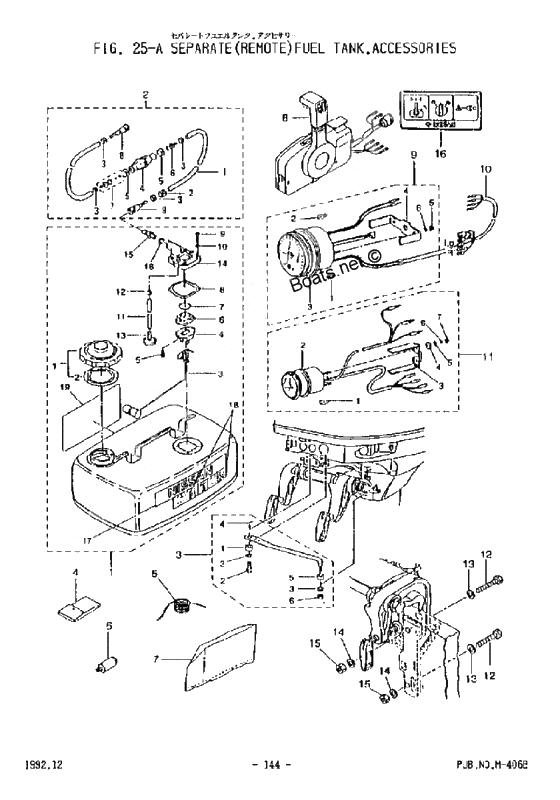

Fuel tank (remote) для Tohatsu M50D - 2002 года выпуска`
-
№АртикулНазвание
-
00930-13120-0 Nut, p1.75
NS40D,NS50DNut, p1.75
NS40D,NS50D -
003B1-84330-1 Single remote control box ass'y (rc4a)
NS40D,NS50D-BLUESingle remote control box ass'y (rc4a)
NS40D,NS50D-BLUE -
003B8-70140-1 Fuel tank ass'y
NS40D,NS50D JAPANESE DOMESTIC SPECIFICATIONFuel tank ass'y
NS40D,NS50D JAPANESE DOMESTIC SPECIFICATION -
003B1-84339-0 Instruction label
NS40D,NS50DInstruction label
NS40D,NS50D -
003B1-84330-2 Single remote control box ass'y (rc8a)
NS40D,NS50D-GRAYSingle remote control box ass'y (rc8a)
NS40D,NS50D-GRAY -
003B8-70142-1 Fuel tank ass'y
NS40D,NS50DFuel tank ass'y
NS40D,NS50D -
003B1-84340-1 Single remote control box ass'y (rc4b)
NS40D,NS50D-BLUESingle remote control box ass'y (rc4b)
NS40D,NS50D-BLUE -
003B7-70200-1 Primer bulb assy
NS40D,NS50DPrimer bulb assy
NS40D,NS50D -
003C8-84910-0 Drag link e ass'y
NS40D,NS50DDrag link e ass'y
NS40D,NS50D -
003B1-84340-2 Single remote control box ass'y (rc8b)
NS40D,NS50D-GRAYSingle remote control box ass'y (rc8b)
NS40D,NS50D-GRAY -
00353-62133-0 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003C8-72100-0 TOOL ASS'Y
NS40D,NS50DTOOL ASS'Y
NS40D,NS50D -
003B7-70200-3 New part
NS40D,NS50DNew part
NS40D,NS50D -
003A3-72537-0 Lead wire meter
NS40D,NS50D EPTO/EPO TYPE-STDLead wire meter
NS40D,NS50D EPTO/EPO TYPE-STD -
00940-13120-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003B7-72201-0 Канат
NS40D,NS50DКанат
NS40D,NS50D -
00353-61334-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003B7-60007-0 Flushing Plug
NS40D,NS50DFlushing Plug
NS40D,NS50D -
01334-70020-0 Fuel tank cap ass'y
NS40D,NS50DFuel tank cap ass'y
NS40D,NS50D -
013C8-84914-0 Collar, 9.6-13-6.5
NS40D,NS50DCollar, 9.6-13-6.5
NS40D,NS50D -
013B7-72658-0 Bulb, Meter 12V-1.7W
NS40D,NS50D EPTO/EPO TYPE-STDBulb, Meter 12V-1.7W
NS40D,NS50D EPTO/EPO TYPE-STD -
0198AB-7-1000 Rubber pipe
NS40D,NS50DRubber pipe
NS40D,NS50D -
0198AB-7-1600 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
NS40D,NS50DFuel pipe 7mm/5/16in (1 ea.=1 meter)
NS40D,NS50D -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
023B7-70280-0 Mark, Fuel Connector
NS40D,NS50DMark, Fuel Connector
NS40D,NS50D -
02334-70021-0 Gasket fuel tank cap
NS40D,NS50DGasket fuel tank cap
NS40D,NS50D -
023C8-84917-0 Bolt 3/8-19
NS40D,NS50DBolt 3/8-19
NS40D,NS50D -
023B7-72659-0 Bulb, Meter 12V-1.7W
NS40D,NS50D EPTO/EPO TYPE-STDBulb, Meter 12V-1.7W
NS40D,NS50D EPTO/EPO TYPE-STD -
033B7-72656-0 Damper, Meter
NS40D,NS50D EPTO/EPO TYPE-STDDamper, Meter
NS40D,NS50D EPTO/EPO TYPE-STD -
03332-70201-0 Clamp
NS40D,NS50DClamp
NS40D,NS50D -
03334-70120-0 Датчик топлива
NS40D,NS50DДатчик топлива
NS40D,NS50D -
033B7-72665-0 Plate, Fitting
NS40D,NS50D EPTO TYPE-STDPlate, Fitting
NS40D,NS50D EPTO TYPE-STD -
03353-84916-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
04951503-0215 Split Pin
NS40D,NS50DSplit Pin
NS40D,NS50D -
043B7-72661-0 Plate, Fitting
NS40D,NS50D EPTO/EPO TYPE-STDPlate, Fitting
NS40D,NS50D EPTO/EPO TYPE-STD -
04334-70121-0 Bracket fuel gauge
NS40D,NS50DBracket fuel gauge
NS40D,NS50D -
043B7-72666-0 Insulated washer
NS40D,NS50D EPTO TYPE-STDInsulated washer
NS40D,NS50D EPTO TYPE-STD -
05940-13040-0 Washer, consent
NS40D,NS50D EPTO TYPE-STDWasher, consent
NS40D,NS50D EPTO TYPE-STD -
053C8-84916-0 Collar 9.6-19-6
NS40D,NS50DCollar 9.6-19-6
NS40D,NS50D -
05930203-0500 Nut
NS40D,NS50D EPTO/EPO TYPE-STDNut
NS40D,NS50D EPTO/EPO TYPE-STD -
05332-70217-0 Clamp, primer bulb
NS40D,NS50DClamp, primer bulb
NS40D,NS50D -
06941303-0400 Spring Washer
NS40D,NS50D EPTO TYPE-STDSpring Washer
NS40D,NS50D EPTO TYPE-STD -
06353-84918-0 Nylon Nut 3/8
NS40D,NS50DNylon Nut 3/8
NS40D,NS50D -
06941303-0500 Spring Washer
NS40D,NS50D EPTO/EPO TYPE-STDSpring Washer
NS40D,NS50D EPTO/EPO TYPE-STD -
06345-70212-0 Connector a primer bulb
NS40D,NS50DConnector a primer bulb
NS40D,NS50D -
07334-70123-1 O-Ring
NS40D,NS50DO-Ring
NS40D,NS50D -
07930203-0400 Nut
NS40D,NS50D EPTO TYPE-STDNut
NS40D,NS50D EPTO TYPE-STD -
07345-70213-0 Connector b primer bulb
NS40D,NS50DConnector b primer bulb
NS40D,NS50D -
083B2-70250-1 New part
NS40D,NS50DNew part
NS40D,NS50D -
093B2-70281-0 New part
NS40D,NS50DNew part
NS40D,NS50D -
09922-23052-0 Screw
NS40D,NS50DScrew
NS40D,NS50D -
1098AB-7-1300 Fuel pipe b
NS40D,NS50DFuel pipe b
NS40D,NS50D -
1098AB-7-0700 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
NS40D,NS50DFuel pipe 7mm/5/16in (1 ea.=1 meter)
NS40D,NS50D -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
10334-70128-0 Gasket 5.1-12-0.8
NS40D,NS50DGasket 5.1-12-0.8
NS40D,NS50D -
1198AB-7-0168 Fuel suction pipe
NS40D,NS50DFuel suction pipe
NS40D,NS50D -
133B7-70127-0 Housing, fuel gauge assy
NS40D,NS50DHousing, fuel gauge assy
NS40D,NS50D -
143B2-70127-0 Fuel gauge housing ass'y (b)
NS40D,NS50DFuel gauge housing ass'y (b)
NS40D,NS50D -
16336-70112-0 Gasket 10.2-16-0.5
NS40D,NS50DGasket 10.2-16-0.5
NS40D,NS50D -
18360-70443-1 Bbrand-caution label, b2
NS40D,NS50D JAPANESE DOMESTIC SPECIFICATIONBbrand-caution label, b2
NS40D,NS50D JAPANESE DOMESTIC SPECIFICATION -
19360-70341-0 Caution label, a
NS40D,NS50D JAPANESE DOMESTIC SPECIFICATIONCaution label, a
NS40D,NS50D JAPANESE DOMESTIC SPECIFICATION
