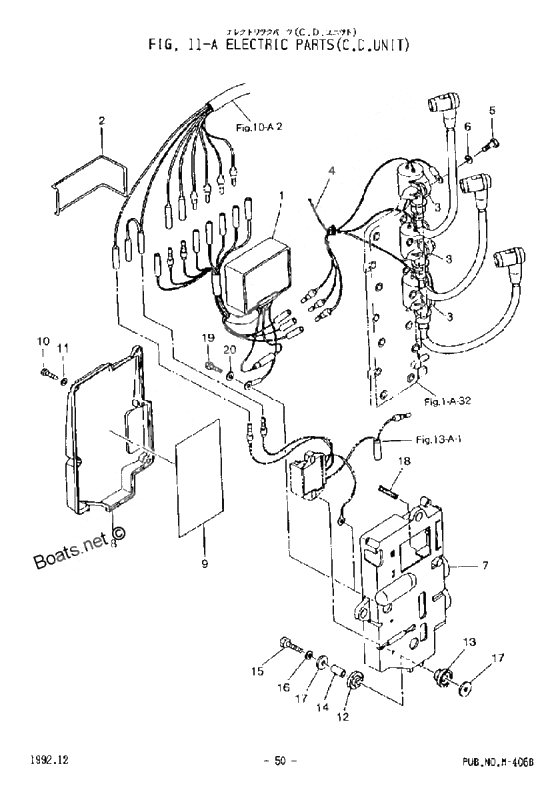

Electric parts (c.d. unit) для Tohatsu M50D - 2002 года выпуска`
-
№АртикулНазвание
-
00346-67113-0 Mount Rubber
NS40D,NS50DMount Rubber
NS40D,NS50D -
00940-13060-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003C8-06160-0 C.D. Unit
NS40D,NS50DC.D. Unit
NS40D,NS50D -
003B7-06920-0 Mount Rubber, 8.5-14-2.5
NS40D,NS50DMount Rubber, 8.5-14-2.5
NS40D,NS50D -
003C8-06901-0 Electric bracket
NS40D,NS50D-BLUEElectric bracket
NS40D,NS50D-BLUE -
003B7-60103-0 O-Ring
NS40D,NS50DO-Ring
NS40D,NS50D -
00346-67114-0 Spacer 6.2-9-15.7
NS40D,NS50DSpacer 6.2-9-15.7
NS40D,NS50D -
003C8-06902-0 Cover electric bracket
NS40D,NS50DCover electric bracket
NS40D,NS50D -
003C7-06050-0 Ignition coil ass'y
NS40D,NS50DIgnition coil ass'y
NS40D,NS50D -
00941303-0600 New part
NS40D,NS50DNew part
NS40D,NS50D -
003C8-72028-0 Label wiring diagram
NS40D,NS50DLabel wiring diagram
NS40D,NS50D -
003C7-06040-0 Ignition Coil
NS40D,NS50D FOR CANADAIgnition Coil
NS40D,NS50D FOR CANADA -
00346-67115-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
00921503-5514 Stud Bolt
NS40D,NS50DStud Bolt
NS40D,NS50D -
00336-76091-0 Band Battery Cord
NS40D,NS50DBand Battery Cord
NS40D,NS50D -
00353-76213-0 Fuse(20ah)
NS40D,NS50DFuse(20ah)
NS40D,NS50D -
00940-13050-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
00910103-0620 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
00910103-6612 Bolt
NS40D,NS50DBolt
NS40D,NS50D
