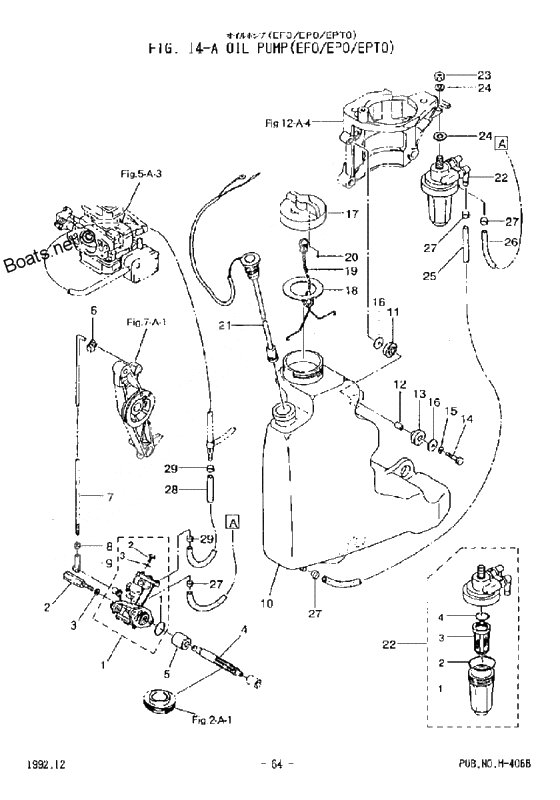

Oil pump (efo-epo-epto) для Tohatsu M50D - 2002 года выпуска`
-
№АртикулНазвание
-
00346-67114-0 Spacer 6.2-9-15.7
NS40D,NS50DSpacer 6.2-9-15.7
NS40D,NS50D -
00930-16080-0 Nut
NS40D,NS50DNut
NS40D,NS50D -
003C8-09065-0 Driven Gear Oil Pump
NS40D,NS50DDriven Gear Oil Pump
NS40D,NS50D -
003C8-71020-0 Oil Level Sensor
NS40D,NS50DOil Level Sensor
NS40D,NS50D -
3C8-71020-1 Oil Level SensorOil Level Sensor
-
003C8-09000-1 Oil Pump Ass'y
NS40D,NS50DOil Pump Ass'y
NS40D,NS50D -
00346-67113-0 Mount Rubber
NS40D,NS50DMount Rubber
NS40D,NS50D -
00940-13080-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003C8-09069-0 Bushing
NS40D,NS50DBushing
NS40D,NS50D -
003C7-71030-0 Filter Ass'y
NS40D,NS50DFilter Ass'y
NS40D,NS50D -
00346-67115-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
0099AA-6-0480 Oil pipe (1 ea.=1.5 meter/59.05 inches)
NS40D,NS50DOil pipe (1 ea.=1.5 meter/59.05 inches)
NS40D,NS50D -
99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)Oil pipe (1 ea.=1.5 meter/59.05 inches)
-
003B7-05244-0 Ball joint c
NS40D,NS50DBall joint c
NS40D,NS50D -
003C8-71015-0 Cap Oil Tank
NS40D,NS50DCap Oil Tank
NS40D,NS50D -
0099AA-6-0580 Oil pipe b
NS40D,NS50DOil pipe b
NS40D,NS50D -
003B7-05243-0 New part
NS40D,NS50DNew part
NS40D,NS50D -
003C8-71016-0 Gasket 36-52-2
NS40D,NS50DGasket 36-52-2
NS40D,NS50D -
003B7-09054-0 Clip @ 9.5
NS40D,NS50DClip @ 9.5
NS40D,NS50D -
3AB-35143-0 Clip @ 9.5Clip @ 9.5
-
003C8-71010-0 Oil Tank
NS40D,NS50DOil Tank
NS40D,NS50D -
003C8-09050-0 Bolt oil pump
NS40D,NS50DBolt oil pump
NS40D,NS50D -
003C8-71017-0 Hook Tank Cap
NS40D,NS50DHook Tank Cap
NS40D,NS50D -
0099AA-4-0230 Vinyl pipe (1 ea.=1 meter)
NS40D,NS50DVinyl pipe (1 ea.=1 meter)
NS40D,NS50D -
99AA-4-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
003B7-06920-0 Mount Rubber, 8.5-14-2.5
NS40D,NS50DMount Rubber, 8.5-14-2.5
NS40D,NS50D -
00941303-0600 New part
NS40D,NS50DNew part
NS40D,NS50D -
003C8-71018-0 Check Valve Oil Tank
NS40D,NS50DCheck Valve Oil Tank
NS40D,NS50D -
003C7-09055-0 Clip 8
NS40D,NS50DClip 8
NS40D,NS50D -
013B7-09002-0 O-Ring
NS40D,NS50DO-Ring
NS40D,NS50D -
013B7-02237-0 Cup
NS40D,NS50DCup
NS40D,NS50D -
023B7-09004-0 Bolt, Air Vent
NS40D,NS50DBolt, Air Vent
NS40D,NS50D -
023B7-02235-0 O-Ring A
NS40D,NS50DO-Ring A
NS40D,NS50D -
033B7-09060-0 Drive gear, oil pump
NS40D,NS50DDrive gear, oil pump
NS40D,NS50D -
033C7-71033-0 Filter
NS40D,NS50DFilter
NS40D,NS50D -
043B7-02236-0 O???? b
NS40D,NS50DO???? b
NS40D,NS50D
