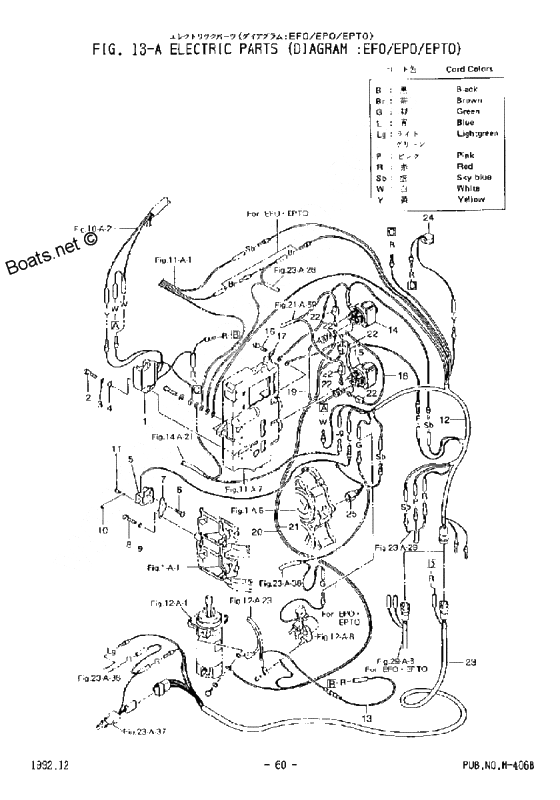

Electric parts (diagram efo-epo-epto) для Tohatsu M50D - 2002 года выпуска`
-
№АртикулНазвание
-
003C8-72580-0 Solenoid switch a, ptt (up)
NS40D,NS50D FOR EPTOSolenoid switch a, ptt (up)
NS40D,NS50D FOR EPTO -
003C8-76055-0 Bracket choke solenoid
NS40D,NS50DBracket choke solenoid
NS40D,NS50D -
003A3-76145-0 Cap Starter Terminal
NS40D,NS50D FOR EPTOCap Starter Terminal
NS40D,NS50D FOR EPTO -
003C8-76060-0 Rectifier complete
NS40D,NS50DRectifier complete
NS40D,NS50D -
003C8-72581-0 Solenoid switch b, ptt (dn)
NS40D,NS50D FOR EPTOSolenoid switch b, ptt (dn)
NS40D,NS50D FOR EPTO -
00910103-0616 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003C8-76119-0 Cord ass'y c
NS40D,NS50D FOR EFOCord ass'y c
NS40D,NS50D FOR EFO -
00921503-7625 Stud Bolt
NS40D,NS50DStud Bolt
NS40D,NS50D -
00910103-6612 Bolt
NS40D,NS50D FOR EPTOBolt
NS40D,NS50D FOR EPTO -
003C8-76057-0 Hook choke solenoid
NS40D,NS50DHook choke solenoid
NS40D,NS50D -
003A3-76171-0 Over-heat Buzzer
NS40D,NS50D OPTION EFO-EPO-EPTOOver-heat Buzzer
NS40D,NS50D OPTION EFO-EPO-EPTO -
3C8-76171-0 Over-heat BuzzerOver-heat Buzzer
-
00941303-0600 New part
NS40D,NS50DNew part
NS40D,NS50D -
003C8-72582-0 Cord a solenoid switch
NS40D,NS50D FOR EPTOCord a solenoid switch
NS40D,NS50D FOR EPTO -
00951-43031-2 Screw
NS40D,NS50DScrew
NS40D,NS50D -
003C8-76172-0 Over-heat sensor ass'y
NS40D,NS50D OPTION EFO-EPO-EPTOOver-heat sensor ass'y
NS40D,NS50D OPTION EFO-EPO-EPTO -
00940-13060-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003C8-72583-0 Cord b solenoid switch
NS40D,NS50D FOR EPTOCord b solenoid switch
NS40D,NS50D FOR EPTO -
003C8-76110-0 Cord ass'y a
NS40D,NS50DCord ass'y a
NS40D,NS50D -
00361-76050-0 Choke Solenoid
NS40D,NS50DChoke Solenoid
NS40D,NS50D -
003C8-72588-0 Cord c solenoid switch
NS40D,NS50D FOR EPTOCord c solenoid switch
NS40D,NS50D FOR EPTO -
00353-76062-1 Fuse wire ass'y
NS40D,NS50DFuse wire ass'y
NS40D,NS50D -
00910103-6616 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003C8-72589-0 Cord d solenoid switch
NS40D,NS50D FOR EPTOCord d solenoid switch
NS40D,NS50D FOR EPTO
