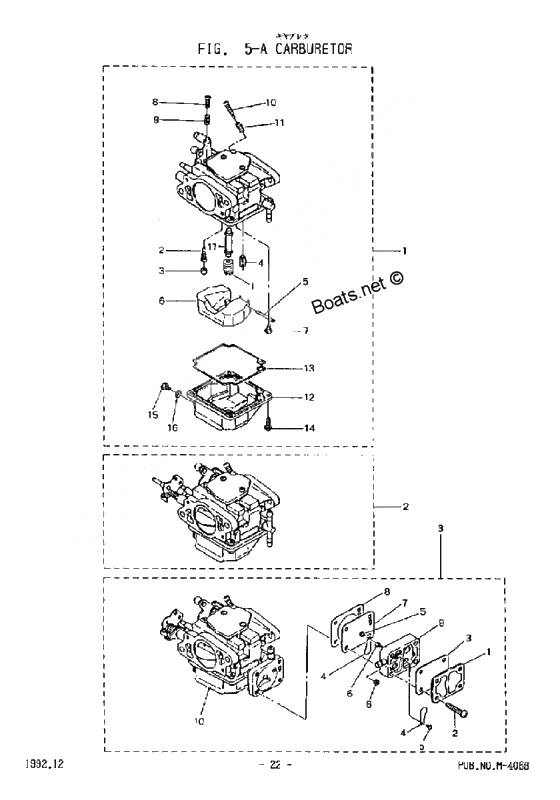

Carburetor для Tohatsu M50D - 2002 года выпуска

  • №
    Артикул
    Название
  • 00
    3C8-03207-1 Carburetor center ass'y
    NS40D
    Carburetor center ass'y
    NS40D
  • 00
    3E3-03210-0 Carburetor lower ass'y
    NS50D
    Carburetor lower ass'y
    NS50D
  • 00
    3C8-03200-0 Carburetor upper ass'y
    NS40D
    Carburetor upper ass'y
    NS40D
  • 00
    3C8-03207-2 Carburetor center ass'y
    NS40D
    Carburetor center ass'y
    NS40D
  • 00
    3E3-03210-1 Carburetor lower ass'y
    NS40D,NS50D
    Carburetor lower ass'y
    NS40D,NS50D
  • 00
    3C8-03200-1 Carburetor upper ass'y
    NS40D
    Carburetor upper ass'y
    NS40D
  • 00
    3E3-03207-0 Carburetor center ass'y
    NS50D
    Carburetor center ass'y
    NS50D
  • 00
    3C8-03200-2 Carburetor upper ass'y
    NS40D
    Carburetor upper ass'y
    NS40D
  • 00
    3E3-03207-1 Carburetor center ass'y
    NS50D
    Carburetor center ass'y
    NS50D
  • 00
    3E3-03200-0 Carburetor upper ass'y
    NS50D
    Carburetor upper ass'y
    NS50D
  • 00
    3C8-03210-0 Carburetor lower ass'y
    NS40D
    Carburetor lower ass'y
    NS40D
  • 00
    3E3-03200-1 Carburetor upper ass'y
    NS50D
    Carburetor upper ass'y
    NS50D
  • 00
    3C8-03210-1 Carburetor lower ass'y
    NS40D
    Carburetor lower ass'y
    NS40D
  • 00
    3C8-03207-0 Carburetor center ass'y
    NS40D
    Carburetor center ass'y
    NS40D
  • 00
    3C8-03210-2 Carburetor lower ass'y
    NS40D
    Carburetor lower ass'y
    NS40D
  • 01
    3E3-03151-0 Main jet #120
    NS50D
    Main jet #120
    NS50D
  • 01
    3E3-03151-1 Жиклер главный
    NS50D
    Жиклер главный
    NS50D
  • 01
    3C8-04004-0 Pump cover
    NS40D,NS50D
    Pump cover
    NS40D,NS50D
  • 01
    3C8-03151-0 Жиклер главный
    NS40D
    Жиклер главный
    NS40D
  • 02
    3C8-03152-0 Slow jet #60
    NS40D
    Slow jet #60
    NS40D
  • 02
    3C8-03152-1 Slow jet #66
    NS40D
    Slow jet #66
    NS40D
  • 02
    922-5H652-5 Screw
    NS40D,NS50D
    Screw
    NS40D,NS50D
  • 02
    3E3-03152-0 Slow jet (#74)
    NS50D
    Slow jet (#74)
    NS50D
  • 03
    3C8-04018-0 New part
    NS40D,NS50D
    New part
    NS40D,NS50D
  • 03
    3C8-03169-0 Plug
    NS40D,NS50D
    Plug
    NS40D,NS50D
  • 04
    3C8-03147-0 Float Valve
    NS40D,NS50D
    Float Valve
    NS40D,NS50D
  • 04
    350-04014-0 New part
    NS40D,NS50D
    New part
    NS40D,NS50D
  • 05
    921703-0305 Stud Bolt
    NS40D,NS50D
    Stud Bolt
    NS40D,NS50D
  • 05
    3C8-03126-0 Float Arm Pin
    NS40D,NS50D
    Float Arm Pin
    NS40D,NS50D
  • 06
    930203-0300 Nut
    NS40D,NS50D
    Nut
    NS40D,NS50D
  • 06
    3C8-03125-0 Float
    NS40D,NS50D
    Float
    NS40D,NS50D
  • 07
    350-04005-0 New part
    NS40D,NS50D
    New part
    NS40D,NS50D
  • 08
    3C8-03179-0 Stop Screw
    NS40D,NS50D
    Stop Screw
    NS40D,NS50D
  • 08
    3C8-04028-0 Packing pump body
    NS40D,NS50D
    Packing pump body
    NS40D,NS50D
  • 09
    3C8-03157-0 Spring
    NS40D,NS50D
    Spring
    NS40D,NS50D
  • 3V2-03157-0 Spring
    Spring
  • 09
    3C8-04002-0 Pump body
    NS40D,NS50D
    Pump body
    NS40D,NS50D
  • 10
    3C8-03156-0 Adjust Screw
    NS40D,NS50D
    Adjust Screw
    NS40D,NS50D
  • 10
    3C8-03123-0 Float Chamber
    NS40D,NS50D
    Float Chamber
    NS40D,NS50D
  • 12
    3C8-03120-0 Float Chamber
    NS40D,NS50D
    Float Chamber
    NS40D,NS50D
  • 13
    3C8-03121-0 O-Ring
    NS40D,NS50D
    O-Ring
    NS40D,NS50D
  • 15
    910-3H040-5 Drain Screw
    NS40D,NS50D
    Drain Screw
    NS40D,NS50D
  • 16
    3C8-03193-0 Packing
    NS40D,NS50D
    Packing
    NS40D,NS50D
  • 17
    3C8-03141-0 Main Nozzle
    NS40D
    Main Nozzle
    NS40D
  • 17
    3E3-03141-0 Main Nozzle
    NS50D
    Main Nozzle
    NS50D
