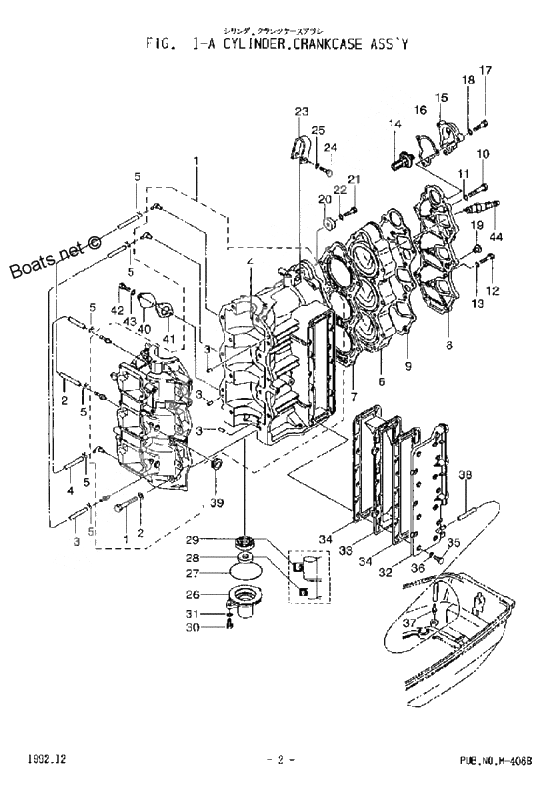

Cylinder, crankcase ass'y для Tohatsu M40D - 2002 года выпуска`
-
№АртикулНазвание
-
003C8-01001-0 Cllinder head
NS40D,NS50D-BLUECllinder head
NS40D,NS50D-BLUE -
003C8-09081-0 Blind plate
NS40D,NS50D PREMIXINGBlind plate
NS40D,NS50D PREMIXING -
00910114-0625 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003C8-02302-0 Exhaust Cover Inner
NS40D,NS50DExhaust Cover Inner
NS40D,NS50D -
00916-1F086-5 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003C8-01291-0 Lower Head Crank Case
NS40D,NS50DLower Head Crank Case
NS40D,NS50D -
003C8-01100-0 Cylinder, crank case ass'y
NS40D-BLUECylinder, crank case ass'y
NS40D-BLUE -
003C8-09082-0 Gasket blind plate
NS40D,NS50D PREMIXINGGasket blind plate
NS40D,NS50D PREMIXING -
003C8-02420-0 Bolt 5-16 Precoated
NS40D,NS50DBolt 5-16 Precoated
NS40D,NS50D -
003C8-02305-0 Прокладка крышки выхода
NS40D,NS50DПрокладка крышки выхода
NS40D,NS50D -
00910121-0620 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
00346-01216-0 O-Ring
NS40D,NS50DO-Ring
NS40D,NS50D -
003C8-01005-0 Gasket, cylinder head
NS40D,NS50DGasket, cylinder head
NS40D,NS50D -
00910103-0616 Bolt
NS40D,NS50D PREMIXINGBolt
NS40D,NS50D PREMIXING -
00940-13060-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
009807-3-0200 Lubrication pipe a
NS40D,NS50DLubrication pipe a
NS40D,NS50D -
00910-1E062-5 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
00940-1D060-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003C8-01215-0 Oil Seal 16-28-7
NS40D,NS50DOil Seal 16-28-7
NS40D,NS50D -
003E3-01100-0 Cylinder, crank case ass'y
NS50D-BLUECylinder, crank case ass'y
NS50D-BLUE -
003C8-01005-1 Gasket, cylinder head
NS40D,NS50DGasket, cylinder head
NS40D,NS50D -
009701-0-1005 9701-1-1005
NS40D,NGK,B7HS-109701-1-1005
NS40D,NGK,B7HS-10 -
003B7-01046-0 Plug
NS40D,NS50DPlug
NS40D,NS50D -
009807-3-0230 Lubrication pipe
NS40D,NS50DLubrication pipe
NS40D,NS50D -
00353-01138-0 Water Nipple
NS40D,NS50DWater Nipple
NS40D,NS50D -
00353-01030-0 サーモスタット
NS40D,NS50Dサーモスタット
NS40D,NS50D -
00334-00122-0 Oil seal 25-40-8
NS40D,NS50DOil seal 25-40-8
NS40D,NS50D -
003C8-01021-0 Cover, Cylinder Head
NS40D,NS50D-BLUECover, Cylinder Head
NS40D,NS50D-BLUE -
009701-0-1015 Spark plug (resister type)
NS40D, NGK, BR7HS-10 FOR CANADASpark plug (resister type)
NS40D, NGK, BR7HS-10 FOR CANADA -
00338-60218-1 Anode
NS40D,NS50DAnode
NS40D,NS50D -
009807-3-0400 Lubricative pipe c
NS40D,NS50DLubricative pipe c
NS40D,NS50D -
009810-5-0260 Pipe, water nipple
NS40D,NS50DPipe, water nipple
NS40D,NS50D -
00353-01031-0 Cap, thermostat
NS40D,NS50D-BLUECap, thermostat
NS40D,NS50D-BLUE -
003C8-02301-0 Exhaust cover, outer
NS40D,NS50D-BLUEExhaust cover, outer
NS40D,NS50D-BLUE -
00SC8-01021-0 Cover, Cylinder Head
NS40D,NS50D-GRAYCover, Cylinder Head
NS40D,NS50D-GRAY -
009701-0-1009 New part
NS50D NGK, B8HS-10New part
NS50D NGK, B8HS-10 -
00910103-0620 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
00338-01133-0 Clip
NS40D,NS50DClip
NS40D,NS50D -
003B7-76093-0 Grommet, 25-5
NS40D,NS50DGrommet, 25-5
NS40D,NS50D -
00353-01032-0 Прокладка крышки термостата
NS40D,NS50DПрокладка крышки термостата
NS40D,NS50D -
003C8-01024-0 3c8-01005-4, 3c8-01024-1
NS40D,NS50D3c8-01005-4, 3c8-01024-1
NS40D,NS50D -
009701-0-1016 Spark plug ngk bp8hs-10
NS50D NGK, BR8HS-10 FOR CANADASpark plug ngk bp8hs-10
NS50D NGK, BR8HS-10 FOR CANADA -
9701-0-1009 Spark plug ngk bp8hs-10Spark plug ngk bp8hs-10
-
003C8-01513-0 NS40D,NS50D-GRAY
NS40D,NS50D-GRAYNS40D,NS50D-GRAY
NS40D,NS50D-GRAY -
01916124-0845 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
02940121-0800 Washer
NS40D,NS50DWasher
NS40D,NS50D -
03345-01111-0 Dowel Pin 6-12
NS40D,NS50DDowel Pin 6-12
NS40D,NS50D -
04345-00117-0 Dowel Pin
NS40D,NS50DDowel Pin
NS40D,NS50D
