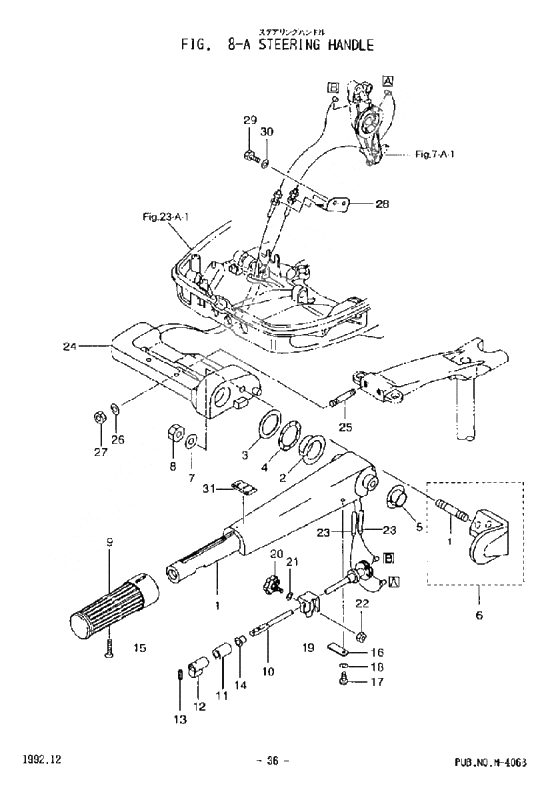

Steering handle для Tohatsu M40D - 2002 года выпуска`
-
№АртикулНазвание
-
003C8-63041-1 Throttle Shaft
NS50DThrottle Shaft
NS50D -
003C8S62001-2 Sterring bracket
NS40D,NS50D GRAYSterring bracket
NS40D,NS50D GRAY -
003C8-63027-0 Holder ass'y, steering handle
NS40D,NS50D BLUEHolder ass'y, steering handle
NS40D,NS50D BLUE -
00940-13060-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003C8-63011-0 Steering handle
NS40D,NS50D BLUESteering handle
NS40D,NS50D BLUE -
00345-63048-0 Rubber Throttle Shaft A
NS40D,NS50DRubber Throttle Shaft A
NS40D,NS50D -
00940-13080-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003C8S63027-0 Holder ass'y steering handle
NS40D,NS50D GRAYHolder ass'y steering handle
NS40D,NS50D GRAY -
003B2-63035-1 Friction Piece Grip
NS40D,NS50DFriction Piece Grip
NS40D,NS50D -
003C8S63011-1 Рулевой рычаг и кабель
NS40D,NS50D GRAYРулевой рычаг и кабель
NS40D,NS50D GRAY -
00398-63053-0 Spacer Throttle Shaft
NS40D,NS50DSpacer Throttle Shaft
NS40D,NS50D -
00930403-0800 Nylon Nut
NS40D,NS50DNylon Nut
NS40D,NS50D -
003B2-63034-0 Adjust Screw
NS40D,NS50DAdjust Screw
NS40D,NS50D -
003C8-63101-0 Bushing A, Steering-handle
NS40D,NS50DBushing A, Steering-handle
NS40D,NS50D -
00951-43022-0 Spring Pin
NS40D,NS50DSpring Pin
NS40D,NS50D -
003C8-63508-0 Bracket throttle wire
NS40D,NS50DBracket throttle wire
NS40D,NS50D -
00930103-0600 Nut
NS40D,NS50DNut
NS40D,NS50D -
003B2-63108-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
00350-63046-0 Bushing
NS40D,NS50DBushing
NS40D,NS50D -
00910114-0614 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003A0-63012-0 Grip
NS40D,NS50DGrip
NS40D,NS50D -
003C8-63600-0 Throttle Wire
NS40D,NS50DThrottle Wire
NS40D,NS50D -
003B2-63109-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003C8-63063-0 Supporter Throttle Shaft
NS40D,NS50DSupporter Throttle Shaft
NS40D,NS50D -
00334-72019-0 Label throttle
NS40D,NS50DLabel throttle
NS40D,NS50D -
00398-63012-0 Grip
NS40DGrip
NS40D -
003C8-62001-0 Steering bracket
NS40D,NS50D BLUESteering bracket
NS40D,NS50D BLUE -
003C8-63102-0 Bushing b, steering handle
NS40D,NS50DBushing b, steering handle
NS40D,NS50D -
00910103-0612 New part
NS40D,NS50DNew part
NS40D,NS50D -
01915303-1022 Stud Bolt
NS40D,NS50DStud Bolt
NS40D,NS50D
