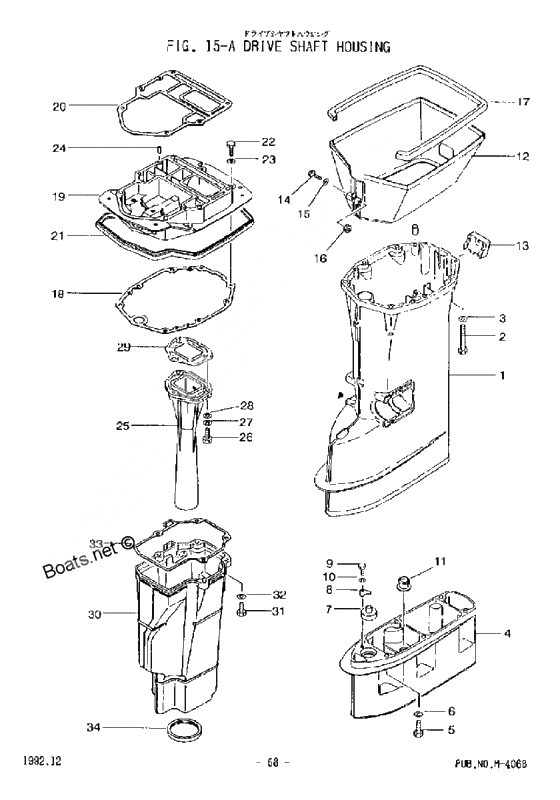

Drive shaft housing для Tohatsu M40D - 2002 года выпуска`
-
№АртикулНазвание
-
00941303-0600 New part
NS40D,NS50D FOR TRANSUM XLNew part
NS40D,NS50D FOR TRANSUM XL -
00910114-0625 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003C8-61110-0 Extension housing xl
NS40D,NS50D FOR TRANSUM XL-BLUEExtension housing xl
NS40D,NS50D FOR TRANSUM XL-BLUE -
003C8-61213-0 Seal Rubber Splash Pan
NS40D,NS50DSeal Rubber Splash Pan
NS40D,NS50D -
003C8-02312-0 Gasket exhaust pipe
NS40D,NS50DGasket exhaust pipe
NS40D,NS50D -
003C8-61191-0 Drive shaft housing s
NS40D,NS50D FOR TRANSUM S-BLUEDrive shaft housing s
NS40D,NS50D FOR TRANSUM S-BLUE -
00346-65204-0 Lock Rubber Water Pipe
NS40D,NS50DLock Rubber Water Pipe
NS40D,NS50D -
00940-13060-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003C8S61110-0 Extension housing ul
NS40D,NS50D FOR TRANSUM XL-GRAYExtension housing ul
NS40D,NS50D FOR TRANSUM XL-GRAY -
003C8-61012-0 Gasket drive shaft housing
NS40D,NS50DGasket drive shaft housing
NS40D,NS50D -
003C8-61180-0 Exhaust Housing
NS40D,NS50DExhaust Housing
NS40D,NS50D -
003C8S61191-0 Drive shaft housing s
NS40D,NS50D FOR TRANSUM S-GRAYDrive shaft housing s
NS40D,NS50D FOR TRANSUM S-GRAY -
003C8-61210-0 Splash pan
NS40D,NS50D-BLUESplash pan
NS40D,NS50D-BLUE -
00345-01111-0 Dowel Pin 6-12
NS40D,NS50DDowel Pin 6-12
NS40D,NS50D -
00916103-0835 Bolt
NS40D,NS50D FOR TRANSUM XLBolt
NS40D,NS50D FOR TRANSUM XL -
003C8-01301-0 Engine base
NS40D,NS50D-BLUEEngine base
NS40D,NS50D-BLUE -
003C8-61181-0 Gasket exhaust housing
NS40D,NS50DGasket exhaust housing
NS40D,NS50D -
003C8-61192-0 Driver shaft housing l
NS40D,NS50D FOR TRANSUM L,XL-BLUEDriver shaft housing l
NS40D,NS50D FOR TRANSUM L,XL-BLUE -
003C8S61210-0 Splash pan
NS40D,NS50D-GRAYSplash pan
NS40D,NS50D-GRAY -
003C8-02311-0 Exhaust Pipe
NS40D,NS50DExhaust Pipe
NS40D,NS50D -
00346-66037-0 Holder Cam Rod
NS40D,NS50D FOR TRANSUM XLHolder Cam Rod
NS40D,NS50D FOR TRANSUM XL -
003C8S01301-0 Engine base
NS40D,NS50D-GRAYEngine base
NS40D,NS50D-GRAY -
003C8-61182-0 Grommet exhaust housing
NS40D,NS50DGrommet exhaust housing
NS40D,NS50D -
003C8S61192-0 Drive shaft housing l
NS40D,NS50D FOR TRANSUM L,XL-GRAYDrive shaft housing l
NS40D,NS50D FOR TRANSUM L,XL-GRAY -
003C8-61212-0 Grommet Splash Pan
NS40D,NS50DGrommet Splash Pan
NS40D,NS50D -
003E3-02311-0 Exhaust Pipe
NS40D,NS50DExhaust Pipe
NS40D,NS50D -
00353-66024-0 Stopper
NS40D,NS50D FOR TRANSUM XLStopper
NS40D,NS50D FOR TRANSUM XL -
003C8-01303-0 Gasket engine base
NS40D,NS50DGasket engine base
NS40D,NS50D -
00910-13088-0 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
00940-13050-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
00910114-0830 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
00910121-0612 Bolt
NS40D,NS50D FOR TRANSUM XLBolt
NS40D,NS50D FOR TRANSUM XL -
003C8-67116-0 Seal Rubber Engine Base
NS40D,NS50DSeal Rubber Engine Base
NS40D,NS50D -
00940-13080-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
00930403-0500 Nylon Nut
NS40D,NS50DNylon Nut
NS40D,NS50D -
00941303-0800 Spring Washer
NS40D,NS50DSpring Washer
NS40D,NS50D
