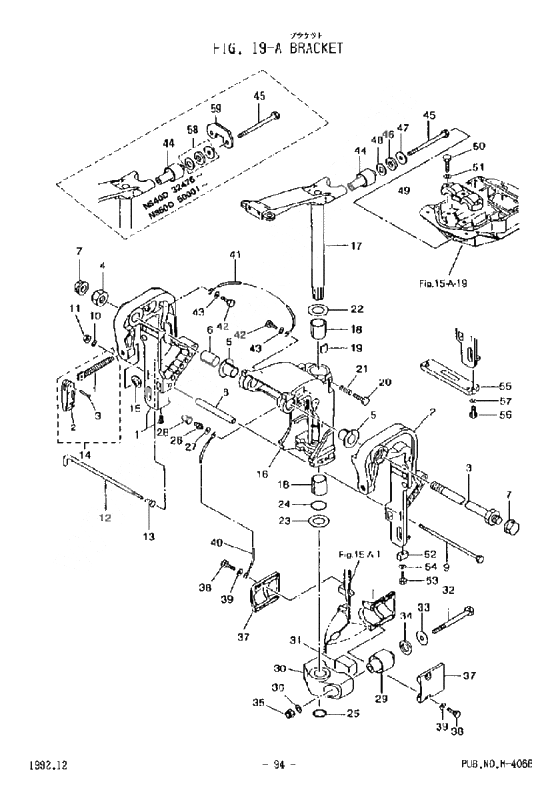

Bracket для Tohatsu M40D - 2002 года выпуска

  • №
    Артикул
    Название
  • 00
    940-13080-0 Washer
    NS40D,NS50D
    Washer
    NS40D,NS50D
  • 00
    3B7-62396-0 Ground Wire
    NS40D,NS50D
    Ground Wire
    NS40D,NS50D
  • 00
    910114-0830 Bolt
    NS40D,NS50D
    Bolt
    NS40D,NS50D
  • 00
    910-13063-5 Bolt
    NS40D,NS50D
    Bolt
    NS40D,NS50D
  • 00
    346-62125-0 Bracket nut b
    NS40D,NS50D
    Bracket nut b
    NS40D,NS50D
  • 00
    353-61334-0 Washer
    NS40D,NS50D
    Washer
    NS40D,NS50D
  • 00
    3E3-61333-0 Upper Damper Rubber
    NS40D,NS50D
    Upper Damper Rubber
    NS40D,NS50D
  • 00
    940-13060-0 Washer
    NS40D,NS50D
    Washer
    NS40D,NS50D
  • 00
    3C8-62110-0 Stern bracket r ass'y
    NS40D,NS50D-BLUE
    Stern bracket r ass'y
    NS40D,NS50D-BLUE
  • 00
    930103-0800 Nut
    NS40D,NS50D
    Nut
    NS40D,NS50D
  • 00
    398-62396-0 Ground Wire
    NS40D,NS50D
    Ground Wire
    NS40D,NS50D
  • 00
    346-62421-0 Spring, friction plate
    NS40D,NS50D
    Spring, friction plate
    NS40D,NS50D
  • 00
    941303-0600 New part
    NS40D,NS50D
    New part
    NS40D,NS50D
  • 00
    346-62126-1 Bushing, Bracket Bolt
    NS40D,NS50D
    Bushing, Bracket Bolt
    NS40D,NS50D
  • 00
    353-61338-0 Damper rubber 21-34-5
    NS40D,NS50D
    Damper rubber 21-34-5
    NS40D,NS50D
  • 00
    332-62101-0 Pad clamp screw
    NS40D,NS50D
    Pad clamp screw
    NS40D,NS50D
  • 00
    3C8-61341-0 Cap Upper Mount Rubber
    NS40D,NS50D-BLUE
    Cap Upper Mount Rubber
    NS40D,NS50D-BLUE
  • 00
    3C8-61302-0 Lower Mount Rubber
    NS40D,NS50D
    Lower Mount Rubber
    NS40D,NS50D
  • 00
    3C8S62112-0 Stern bracket right
    NS40D,NS50D-GRAY
    Stern bracket right
    NS40D,NS50D-GRAY
  • 00
    3C8-62121-0 Thrust Rod
    NS40D,NS50D
    Thrust Rod
    NS40D,NS50D
  • 00
    910121-0612 Bolt
    NS40D,NS50D
    Bolt
    NS40D,NS50D
  • 00
    3C8-62423-0 Thrust plate upper
    NS40D,NS50D
    Thrust plate upper
    NS40D,NS50D
  • 00
    3C7-60218-0 Anode, Stern Bracket
    NS40D,NS50D OPTION
    Anode, Stern Bracket
    NS40D,NS50D OPTION
  • 00
    3C8-62132-0 Bushing
    NS40D,NS50D
    Bushing
    NS40D,NS50D
  • 00
    930403-1200 Nylon Nut
    NS40D,NS50D
    Nylon Nut
    NS40D,NS50D
  • 00
    3C8-62310-0 Swivel bracket
    NS40D,NS50D
    Swivel bracket
    NS40D,NS50D
  • 00
    3C8S61341-0 Cap upper mount rubber
    NS40D,NS50D-GRAY
    Cap upper mount rubber
    NS40D,NS50D-GRAY
  • 00
    3C8-61411-0 Mounting bracket
    NS40D,NS50D-BLUE
    Mounting bracket
    NS40D,NS50D-BLUE
  • 00
    3C8-62113-0 Stern bracket l ass'y
    NS40D,NS50D-BLUE
    Stern bracket l ass'y
    NS40D,NS50D-BLUE
  • 00
    345-62122-0 Spring, thrust rod
    NS40D,NS50D
    Spring, thrust rod
    NS40D,NS50D
  • 00
    3E3-61301-0 Upper, mount rubber
    NS40D,NS50D
    Upper, mount rubber
    NS40D,NS50D
  • 00
    346-62424-0 Thrust plate 26.5-46-1
    NS40D,NS50D
    Thrust plate 26.5-46-1
    NS40D,NS50D
  • 00
    346-62127-0 Cap,Bracket Bolt
    NS40D,NS50D
    Cap,Bracket Bolt
    NS40D,NS50D
  • 00
    3C8-61342-0 Cap, lower mounting rubber
    NS40D,NS50D-BLUE
    Cap, lower mounting rubber
    NS40D,NS50D-BLUE
  • 00
    3C8-62010-0 Steering shaft ass'y
    NS40D,NS50D-BLUE
    Steering shaft ass'y
    NS40D,NS50D-BLUE
  • 00
    916103-0835 Bolt
    NS40D,NS50D
    Bolt
    NS40D,NS50D
  • 00
    3C8S61411-2 Mount bracket
    NS40D,NS50D-GRAY
    Mount bracket
    NS40D,NS50D-GRAY
  • 00
    3C8S62113-0 Stern bracket l
    NS40D,NS50D-GRAY
    Stern bracket l
    NS40D,NS50D-GRAY
  • 00
    3C8-62100-0 Clampscrew ass'y
    NS40D,NS50D-BLUE
    Clampscrew ass'y
    NS40D,NS50D-BLUE
  • 00
    353-61307-0 Bolt mount rubber upper
    NS40D,NS50D
    Bolt mount rubber upper
    NS40D,NS50D
  • 00
    3C8-62415-0 O-Ring
    NS40D,NS50D
    O-Ring
    NS40D,NS50D
  • 00
    3E3-61335-0 Upper Lock Plate
    NS40D,NS50D
    Upper Lock Plate
    NS40D,NS50D
  • 00
    3C8-62117-0 Distance Piece
    NS40D,NS50D
    Distance Piece
    NS40D,NS50D
  • 00
    3C8S61342-0 Cap lower mount rubber
    NS40D,NS50D-GRAY
    Cap lower mount rubber
    NS40D,NS50D-GRAY
  • 00
    3C8S62010-1 Steering shaft ass'y
    NS40D,NS50D-GRAY
    Steering shaft ass'y
    NS40D,NS50D-GRAY
  • 00
    941303-0800 Spring Washer
    NS40D,NS50D
    Spring Washer
    NS40D,NS50D
  • 00
    346-62191-0 Bracket Bolt Ass'y
    NS40D,NS50D-BLUE
    Bracket Bolt Ass'y
    NS40D,NS50D-BLUE
  • 00
    3C8-61336-0 Damper Rubber
    NS40D,NS50D
    Damper Rubber
    NS40D,NS50D
  • 00
    NC8-62100-0 Clamp Screw Ass'y
    NS40D,NS50D-GRAY
    Clamp Screw Ass'y
    NS40D,NS50D-GRAY
  • 00
    353-61333-0 Plate damper rubber upper
    NS40D,NS50D
    Plate damper rubber upper
    NS40D,NS50D
  • 00
    945103-2500 Clip
    NS40D,NS50D
    Clip
    NS40D,NS50D
  • 00
    3C8-62120-0 Bolt 8-170
    NS40D,NS50D
    Bolt 8-170
    NS40D,NS50D
  • 00
    910103-0620 Bolt
    NS40D,NS50D
    Bolt
    NS40D,NS50D
  • 00
    345-62441-0 Friction Plate
    NS40D,NS50D
    Friction Plate
    NS40D,NS50D
  • 00
    3B7-60218-0 Anode
    NS40D,NS50D
    Anode
    NS40D,NS50D
  • 00
    3Z5-62191-0 Bracket bolt
    NS40D,NS50D-GRAY
    Bracket bolt
    NS40D,NS50D-GRAY
  • 00
    3C8-61321-0 Bolt Lower Mount Rubber
    NS40D,NS50D
    Bolt Lower Mount Rubber
    NS40D,NS50D
  • 00
    353-61335-0 Washer
    NS40D,NS50D
    Washer
    NS40D,NS50D
  • 00
    344-67177-0 Масленка
    NS40D,NS50D
    Масленка
    NS40D,NS50D
  • 01
    3C8-62103-0 Винт струбцины
    NS40D,NS50D
    Винт струбцины
    NS40D,NS50D
  • 02
    332-62102-0 Handle, clamp screw
    NS40D,NS50D-BLUE
    Handle, clamp screw
    NS40D,NS50D-BLUE
