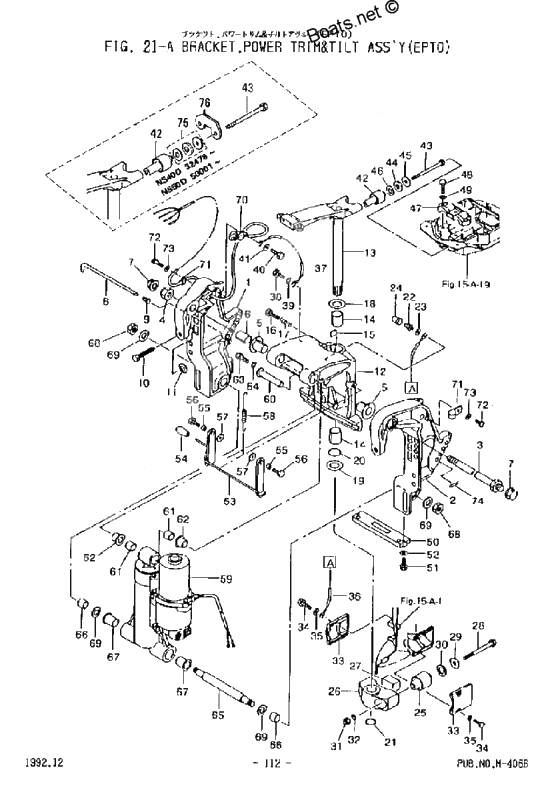

Bracket, power trim & tilt ass'y (epto) для Tohatsu M40D - 2002 года выпуска
-
№АртикулНазвание
-
003C8-77214-0 Винт струбцины
NS40D,NS50DВинт струбцины
NS40D,NS50D -
003E3-61333-0 Upper Damper Rubber
NS40D,NS50DUpper Damper Rubber
NS40D,NS50D -
003C8-61302-0 Lower Mount Rubber
NS40D,NS50DLower Mount Rubber
NS40D,NS50D -
003C8-77071-0 Upper Cylinder Pin
NS40D,NS50DUpper Cylinder Pin
NS40D,NS50D -
00346-62124-0 Bracket Nut(Nylon)
NS40D,NS50DBracket Nut(Nylon)
NS40D,NS50D -
00910121-0612 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003E3-61335-0 Upper Lock Plate
NS40D,NS50DUpper Lock Plate
NS40D,NS50D -
003C8-62423-0 Thrust plate upper
NS40D,NS50DThrust plate upper
NS40D,NS50D -
003C8-62472-0 Tilt Stopper
NS40D,NS50D-BLUETilt Stopper
NS40D,NS50D-BLUE -
00930403-1200 Nylon Nut
NS40D,NS50DNylon Nut
NS40D,NS50D -
003C8-77111-0 Washer, 19-34-3
NS40D,NS50DWasher, 19-34-3
NS40D,NS50D -
003C8-77211-0 Stern bracket r
NS40D,NS50D-BLUEStern bracket r
NS40D,NS50D-BLUE -
00332-62101-0 Pad clamp screw
NS40D,NS50DPad clamp screw
NS40D,NS50D -
003C8-61341-0 Cap Upper Mount Rubber
NS40D,NS50D-BLUECap Upper Mount Rubber
NS40D,NS50D-BLUE -
003C8-61411-0 Mounting bracket
NS40D,NS50D-BLUEMounting bracket
NS40D,NS50D-BLUE -
003C8-77075-0 New part
NS40D,NS50DNew part
NS40D,NS50D -
003C8-77213-0 Bushing Bracket Bolt
NS40D,NS50DBushing Bracket Bolt
NS40D,NS50D -
00332-66308-0 Washer, fuel tank
NS40D,NS50DWasher, fuel tank
NS40D,NS50D -
00346-62424-0 Thrust plate 26.5-46-1
NS40D,NS50DThrust plate 26.5-46-1
NS40D,NS50D -
003C8S62472-1 Tilt stopper p-t/t
NS40D,NS50D-GRAYTilt stopper p-t/t
NS40D,NS50D-GRAY -
003C8-61342-0 Cap, lower mounting rubber
NS40D,NS50D-BLUECap, lower mounting rubber
NS40D,NS50D-BLUE -
003B7-72574-0 Trim sender
NS40D,NS50DTrim sender
NS40D,NS50D -
003Z5S77211-0 Stern bracket r
NS40D,NS50D-GRAYStern bracket r
NS40D,NS50D-GRAY -
003C8-77215-0 Swivel bracket
NS40D,NS50D-BLUESwivel bracket
NS40D,NS50D-BLUE -
003C8S61341-0 Cap upper mount rubber
NS40D,NS50D-GRAYCap upper mount rubber
NS40D,NS50D-GRAY -
003C8S61411-2 Mount bracket
NS40D,NS50D-GRAYMount bracket
NS40D,NS50D-GRAY -
003C8-77076-0 Bushing, 18-24-21.5
NS40D,NS50DBushing, 18-24-21.5
NS40D,NS50D -
003C8-62132-0 Bushing
NS40D,NS50DBushing
NS40D,NS50D -
003E3-61301-0 Upper, mount rubber
NS40D,NS50DUpper, mount rubber
NS40D,NS50D -
003C8-62415-0 O-Ring
NS40D,NS50DO-Ring
NS40D,NS50D -
00369-62433-1 Grip Tilt Stopper
NS40D,NS50DGrip Tilt Stopper
NS40D,NS50D -
003C8S61342-0 Cap lower mount rubber
NS40D,NS50D-GRAYCap lower mount rubber
NS40D,NS50D-GRAY -
00336-06973-0 Clamp Lead Wire
NS40D,NS50DClamp Lead Wire
NS40D,NS50D -
003C8-77212-0 Stern bracket l
NS40D,NS50D-BLUEStern bracket l
NS40D,NS50D-BLUE -
003C8-62010-0 Steering shaft ass'y
NS40D,NS50D-BLUESteering shaft ass'y
NS40D,NS50D-BLUE -
00916103-0835 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
003C8-61336-0 Damper Rubber
NS40D,NS50DDamper Rubber
NS40D,NS50D -
00345-05122-0 New part
NS40D,NS50DNew part
NS40D,NS50D -
00346-62127-0 Cap,Bracket Bolt
NS40D,NS50DCap,Bracket Bolt
NS40D,NS50D -
00353-61307-0 Bolt mount rubber upper
NS40D,NS50DBolt mount rubber upper
NS40D,NS50D -
00945103-2500 Clip
NS40D,NS50DClip
NS40D,NS50D -
003C8-62473-2 Spring Tilt Stopper
NS40D,NS50DSpring Tilt Stopper
NS40D,NS50D -
00910103-0620 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
00910103-0612 New part
NS40D,NS50DNew part
NS40D,NS50D -
003Z5S77212-0 Stern bracket l
NS40D,NS50D-GRAYStern bracket l
NS40D,NS50D-GRAY -
003C8S62010-1 Steering shaft ass'y
NS40D,NS50D-GRAYSteering shaft ass'y
NS40D,NS50D-GRAY -
00941303-0800 Spring Washer
NS40D,NS50DSpring Washer
NS40D,NS50D -
003C8-61321-0 Bolt Lower Mount Rubber
NS40D,NS50DBolt Lower Mount Rubber
NS40D,NS50D -
003C8-77101-0 Cylinder pin lower
NS40D,NS50DCylinder pin lower
NS40D,NS50D -
003C8-77118-0 Thrust Rod
NS40D,NS50DThrust Rod
NS40D,NS50D -
00353-61333-0 Plate damper rubber upper
NS40D,NS50DPlate damper rubber upper
NS40D,NS50D -
00344-67177-0 Масленка
NS40D,NS50DМасленка
NS40D,NS50D -
003C8-77150-0 Power trim & tilt ass'y
NS40D,NS50D-BLUEPower trim & tilt ass'y
NS40D,NS50D-BLUE -
003B7-62191-0 Bracket Bolt Ass'y
NS40D,NS50D-BLUEBracket Bolt Ass'y
NS40D,NS50D-BLUE -
003C8-62396-0 Ground Wire
NS40D,NS50DGround Wire
NS40D,NS50D -
00345-62441-0 Friction Plate
NS40D,NS50DFriction Plate
NS40D,NS50D -
003C7-60218-0 Anode, Stern Bracket
NS40D,NS50DAnode, Stern Bracket
NS40D,NS50D -
00353-61334-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003C8-77103-0 Bushing
NS40D,NS50DBushing
NS40D,NS50D -
00345-62122-0 Spring, thrust rod
NS40D,NS50DSpring, thrust rod
NS40D,NS50D -
00940-13060-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
003E5S77150-0 Power trim & tilt ass'y
NS40D,NS50D-GRAYPower trim & tilt ass'y
NS40D,NS50D-GRAY -
00NB7-62191-0 Bracket Bolt Ass'y
NS40D,NS50D-GRAYBracket Bolt Ass'y
NS40D,NS50D-GRAY -
003C8-62158-0 Ground Wire
NS40D,NS50DGround Wire
NS40D,NS50D -
00346-62421-0 Spring, friction plate
NS40D,NS50DSpring, friction plate
NS40D,NS50D -
00941303-0600 New part
NS40D,NS50DNew part
NS40D,NS50D -
00353-61338-0 Damper rubber 21-34-5
NS40D,NS50DDamper rubber 21-34-5
NS40D,NS50D -
003C8-77104-0 Nut 18
NS40D,NS50DNut 18
NS40D,NS50D
