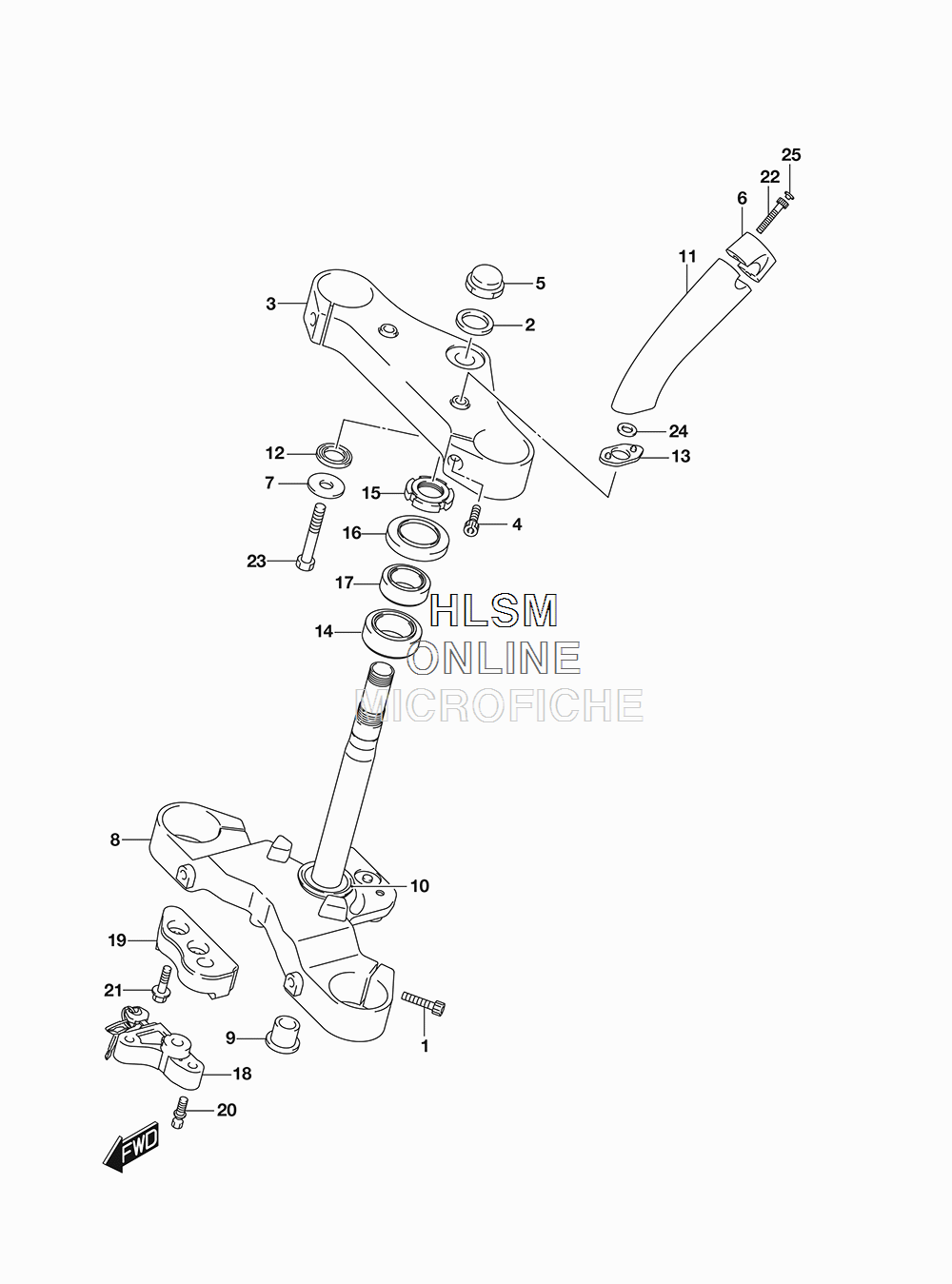

STEERING STEM для Suzuki VZ1500 M90 - 2018 года выпуска
-
№АртикулНазвание
-
151451-32E40 BOLTBOLT
-
251356-10D03 WASHER, LOWERWASHER, LOWER
-
351311-40H30 BRACKET, UPPERBRACKET, UPPER
-
451328-05H00 BOLTBOLT
-
551353-24B00 NUT, CAPNUT, CAP
-
656211-39G60 HOLDER, HANDLEHOLDER, HANDLE
-
751355-16G00 WASHERWASHER
-
851410-40H30 BRACKET, UNDERBRACKET, UNDER
-
951482-44G00 CAPCAP
-
1051644-12C00 SEAL, STEERING LOWERSEAL, STEERING LOWER
-
1156221-39G60 HOLDER, HANDLEHOLDER, HANDLE
-
1256245-16G00 RUBBER, HANDLE HOLDERRUBBER, HANDLE HOLDER
-
1356245-39G00 RUBBER, HANDLE HOLDERRUBBER, HANDLE HOLDER
-
1409265-30020 BEARING (30X55X17)BEARING (30X55X17)
-
1551631-31F00 NUT, STEERING STEMNUT, STEERING STEM
-
1651643-40502 SEAL, STEERING UPPER DUSTSEAL, STEERING UPPER DUST
-
1709265-25038 BEARING (25X47X15)BEARING (25X47X15)
-
1851900-22820 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1951921-40H00 BRACKET, STEERING LOCKBRACKET, STEERING LOCK
-
2051925-48G00 SCREW, STEERING LOCKSCREW, STEERING LOCK
-
2109103-08197 BOLT (8X30)BOLT (8X30)
-
2251451-32E40 BOLTBOLT
-
2351226-23H00 BOLTBOLT
-
2451354-42F00 WASHERWASHER
-
2509250-06011 CAP (OD:11)CAP (OD:11)
