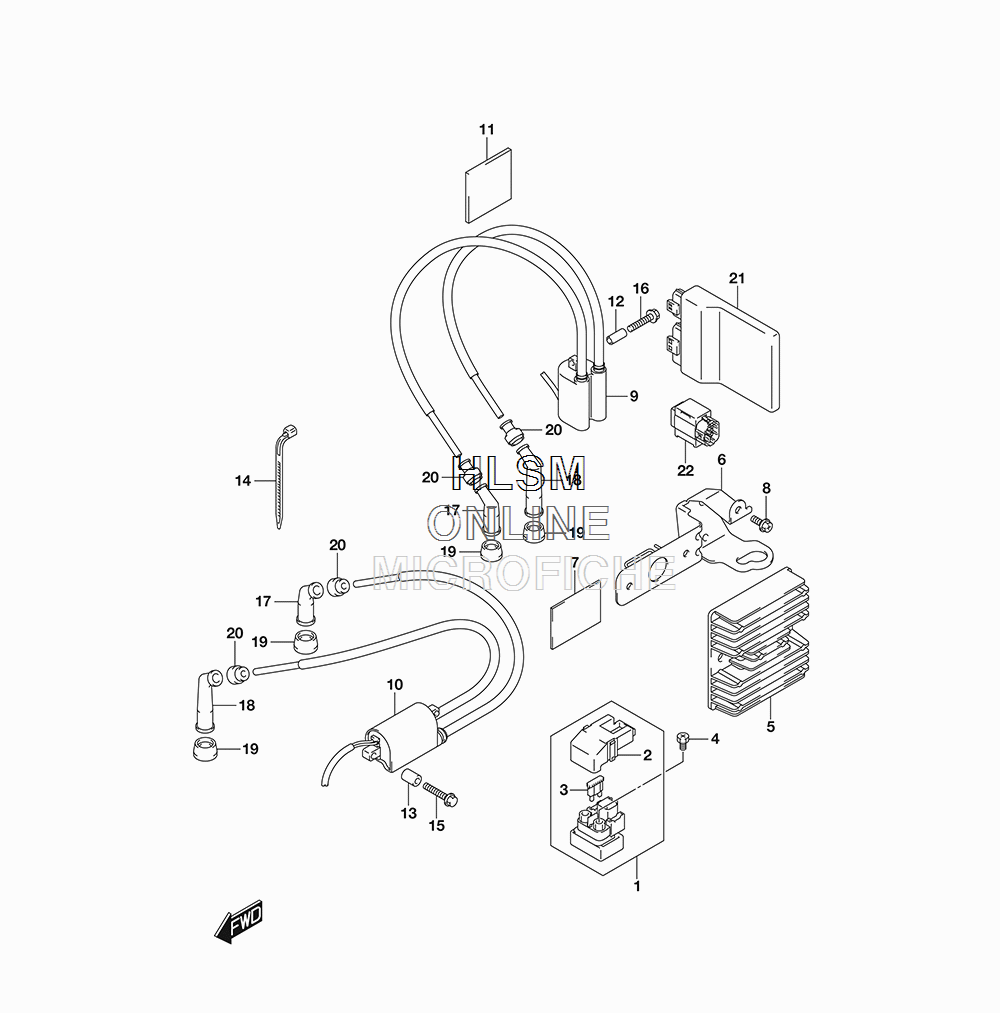

ELECTRICAL - COILS W/ STARTER RELAY - RECTIFIER (CANADA) для Suzuki VZ1500 M90 - 2018 года выпуска
-
№АртикулНазвание
-
131800-06G00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-47E00 ...COVER...COVER
-
309481-30101 ...FUSE (30A)...FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-10G30 RECTIFIER ASSYRECTIFIER ASSY
-
632830-40H10 BRACKET, RECT FTGBRACKET, RECT FTG
-
733652-07D00 PROTECTOR, RECTIFIER (CUT AS REQUIRED)PROTECTOR, RECTIFIER (CUT AS REQUIRED)
-
802162-0616A SCREWSCREW
-
933410-40H00 COIL ASSY, IGNITION, REARCOIL ASSY, IGNITION, REAR
-
1033420-40H01 COIL ASSY, IGNITION, FRONTCOIL ASSY, IGNITION, FRONT
-
1133442-41F00 CUSHION, HIGH TENSION CORDCUSHION, HIGH TENSION CORD
-
1209180-06178 SPACER (6.4X10X22)SPACER (6.4X10X22)
-
1309180-06198 SPACER (6.2X12X16)SPACER (6.2X12X16)
-
1409407-18402 CLAMP (L:165)CLAMP (L:165)
-
1501547-0635A BOLTBOLT
-
1601547-0640A BOLTBOLT
-
1733510-38B00 CAP ASSY, SPARK (SIDE)CAP ASSY, SPARK (SIDE)
-
1833510-45010 CAP ASSY, SPARK (CENTER)CAP ASSY, SPARK (CENTER)
-
1933541-47D00 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
2033542-48H01 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
2132920-40HC0 CONTROL UNIT, FICONTROL UNIT, FI
-
2233960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
