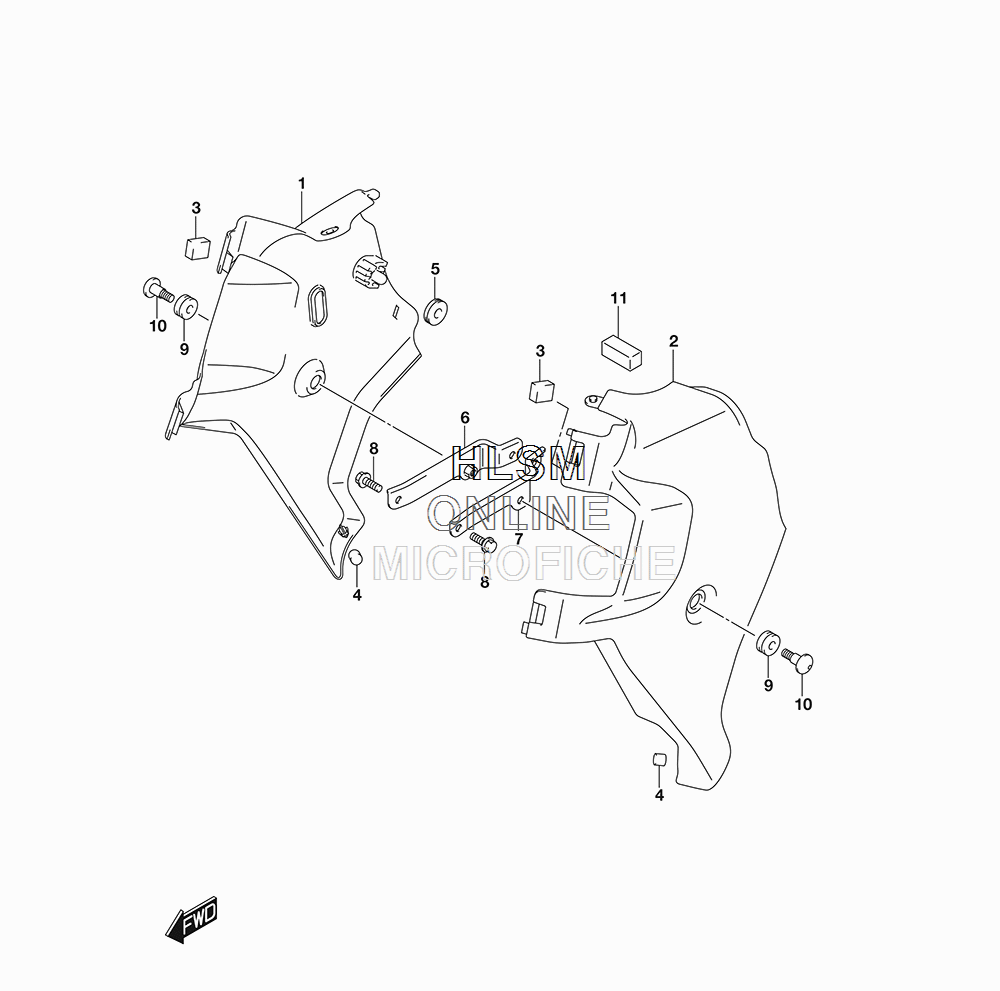

FRAME HEAD COVER для Suzuki VZ1500 M90 - 2018 года выпуска`
-
№АртикулНазвание
-
147351-40H00-019 COVER, FRAME HEAD (RH) (019 - BLACK)COVER, FRAME HEAD (RH) (019 - BLACK)
-
247361-40H00-019 COVER, FRAME HEAD (LH) (019 - BLACK)COVER, FRAME HEAD (LH) (019 - BLACK)
-
317798-39G00 CUSHION (CUT AS REQUIRED)CUSHION (CUT AS REQUIRED)
-
409250-12013 CAP (OD:12.3)CAP (OD:12.3)
-
509320-08018 CUSHIONCUSHION
-
647370-40H01 PLATE, HEAD COVER (RH)PLATE, HEAD COVER (RH)
-
747380-40H01 PLATE, HEAD COVER (LH)PLATE, HEAD COVER (LH)
-
801550-0616A BOLTBOLT
-
909320-09016 CUSHIONCUSHION
-
1009139-06179 BOLT (6X20)BOLT (6X20)
-
1147191-22D00 CUSHION, UPPER (CUT AS REQUIRED)CUSHION, UPPER (CUT AS REQUIRED)
