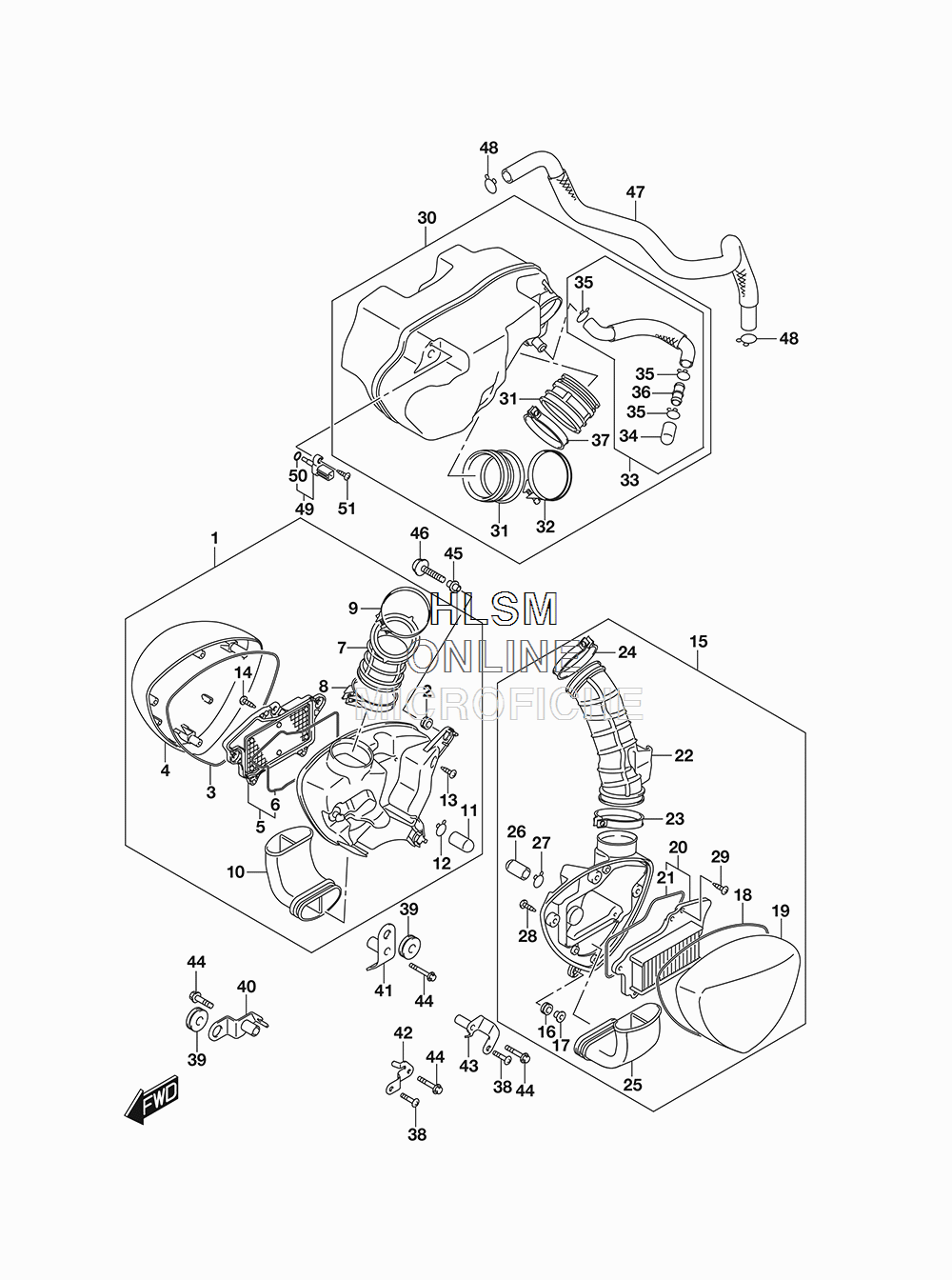

AIR CLEANER для Suzuki VZ1500 M90 - 2018 года выпуска

№

Артикул

Название
1

13701-40H20 CLEANER, AIR, RIGHT

CLEANER, AIR, RIGHT
2

09320-09016 ...CUSHION

...CUSHION
3

13756-40H00 ...GASKET, CASE

...GASKET, CASE
4

13741-40HB0 ...CAP, AIR CLEANER

...CAP, AIR CLEANER
5

13780-40H00 ...FILTER ASSY

...FILTER ASSY
6

13787-40H00 ...GASKET

...GASKET
7

13738-400H0 ...TUBE, JOINT, LEFT

...TUBE, JOINT, LEFT
8

13826-40HA0 ...CLAMP

...CLAMP
9

13826-40H00 ...CLAMP

...CLAMP
10

13897-40H01 ...TUBE, INLET

...TUBE, INLET
11

13878-09F00 ...PLUG, DRAIN

...PLUG, DRAIN
12

09401-14101 ...CLIP, BREATHER

...CLIP, BREATHER
13

03211-0520A ...SCREW

...SCREW
14

03541-0516A ...SCREW

...SCREW
15

13702-40HB0 CLEANER AIR, LEFT

CLEANER AIR, LEFT
16

09320-09016 ...CUSHION

...CUSHION
17

13812-29C50 ...COLLAR, CLEANER

...COLLAR, CLEANER
18

13756-40H00 ...GASKET, CASE

...GASKET, CASE
19

13741-40HB0 ...CAP, AIR CLEANER

...CAP, AIR CLEANER
20

13780-40HB0 ...FILTER ASSY

...FILTER ASSY
21

13787-40H00 ...GASKET

...GASKET
22

13739-40H00 ...TUBE, JOINT LH

...TUBE, JOINT LH
23

13826-40HA0 ...CLAMP

...CLAMP
24

13827-40H01 ...CLAMP

...CLAMP
25

13891-40H01 ...TUBE, INLET

...TUBE, INLET
26

13878-09F00 ...PLUG, DRAIN

...PLUG, DRAIN
27

09401-14101 ...CLIP, BREATHER

...CLIP, BREATHER
28

03211-0520A ...SCREW

...SCREW
29

03541-0516A ...SCREW

...SCREW
30

13710-40H01 ...CHAMBER, AIR CLEANER

...CHAMBER, AIR CLEANER
31

13881-40H01 ...PLUG, DRAIN TUBE

...PLUG, DRAIN TUBE
32

13170-40H01 ...CLAMP, INTAKE PIPE

...CLAMP, INTAKE PIPE
33

13870-40H00 ...TUBE, DRAIN

...TUBE, DRAIN
34

13859-41B10 ...PLUG, DRAIN TUBE

...PLUG, DRAIN TUBE
35

09401-14101 ...CLIP, BREATHER

...CLIP, BREATHER
36

13888-19B00 ...JOINT, 2ND AIR CLEANER

...JOINT, 2ND AIR CLEANER
37

13826-40HB0 ...CLAMP

...CLAMP
38

09139-06056 ...SCREW

...SCREW
39

09320-08028 ...CUSHION

...CUSHION
40

13760-40H00 ...BRACKET, AIR CLEANER NO 1 (RH)

...BRACKET, AIR CLEANER NO 1 (RH)
41

13770-40H00 ...BRACKET, AIR CLEANER NO 1 (LH)

...BRACKET, AIR CLEANER NO 1 (LH)
42

13770-40H11 ...BRACKET, AIR CLEANER NO 2 (LH)

...BRACKET, AIR CLEANER NO 2 (LH)
43

13770-40H20 ...BRACKET, AIR CLEANER NO 3 (LH)

...BRACKET, AIR CLEANER NO 3 (LH)
44

09103-06509 ...BOLT, 6X30

...BOLT, 6X30
45

13838-40H00 ...SPACER, AIR CLEANER

...SPACER, AIR CLEANER
46

09136-06167 ...SCREW

...SCREW
47

13850-40H00 ...TUBE, BREATHER

...TUBE, BREATHER
48

09401-20405 ...CLIP

...CLIP
49

13650-41H10 ...SENSOR, AIR TEMP

...SENSOR, AIR TEMP
50

13655-41F10 ...O-RING

...O-RING
51

03511-0516B ...SCREW

...SCREW
