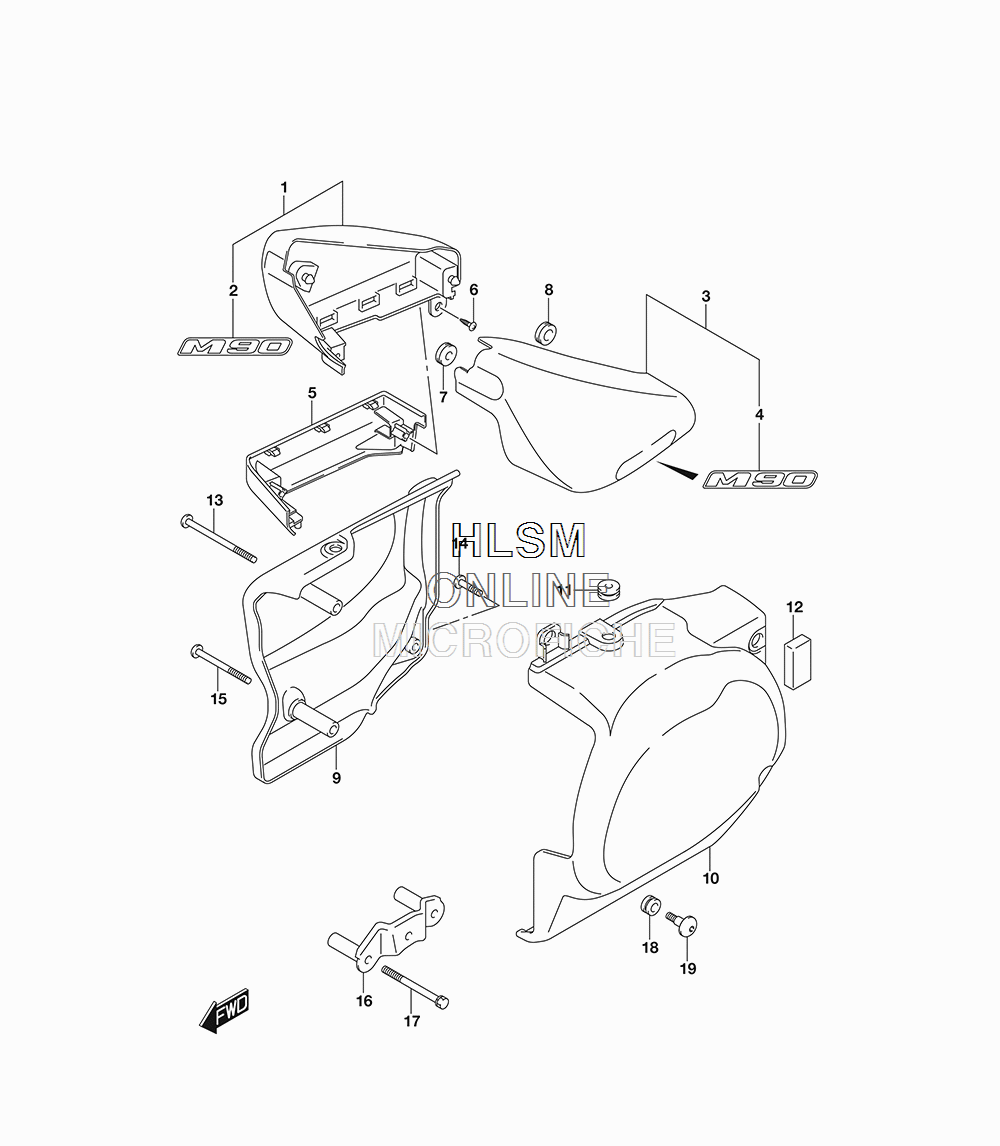

SIDE COVER для Suzuki VZ1500 M90 - 2018 года выпуска
-
№АртикулНазвание
-
147110-40HA0-YKV COVER, SIDE (RH) (YKV - BLACK)COVER, SIDE (RH) (YKV - BLACK)
-
268131-40HA0-DEY ...EMBLEM (DEY - BLACK/BLACK)...EMBLEM (DEY - BLACK/BLACK)
-
347210-40HA0-YKV COVER, SIDE (LH) (YKV - BLACK)COVER, SIDE (LH) (YKV - BLACK)
-
468131-40HA0-DEY ...EMBLEM "M90" (DEY - BLACK/BLACK)...EMBLEM "M90" (DEY - BLACK/BLACK)
-
547121-40H00 COVER, SIDE LOWER (RH)COVER, SIDE LOWER (RH)
-
603541-0516A SCREWSCREW
-
709320-08049 CUSHIONCUSHION
-
809320-08018 CUSHIONCUSHION
-
947130-40H20 COVER, LOWER (RH)COVER, LOWER (RH)
-
1047231-40H20 COVER, LOWER (LH)COVER, LOWER (LH)
-
1109320-06504 CUSHIONCUSHION
-
1251827-01A00 CUSHION, (LH)CUSHION, (LH)
-
1347139-40H00 SCREW, (RH) FRONT UPPERSCREW, (RH) FRONT UPPER
-
1409139-06140 SCREW (6X16)SCREW (6X16)
-
1547138-40H00 SCREW, (RH) FRONT LOWERSCREW, (RH) FRONT LOWER
-
1647250-06J00 BRACKET, LOWER (LH)BRACKET, LOWER (LH)
-
1701547-0650A BOLTBOLT
-
1809320-09016 CUSHIONCUSHION
-
1909139-06126 SCREW (6X20)SCREW (6X20)
