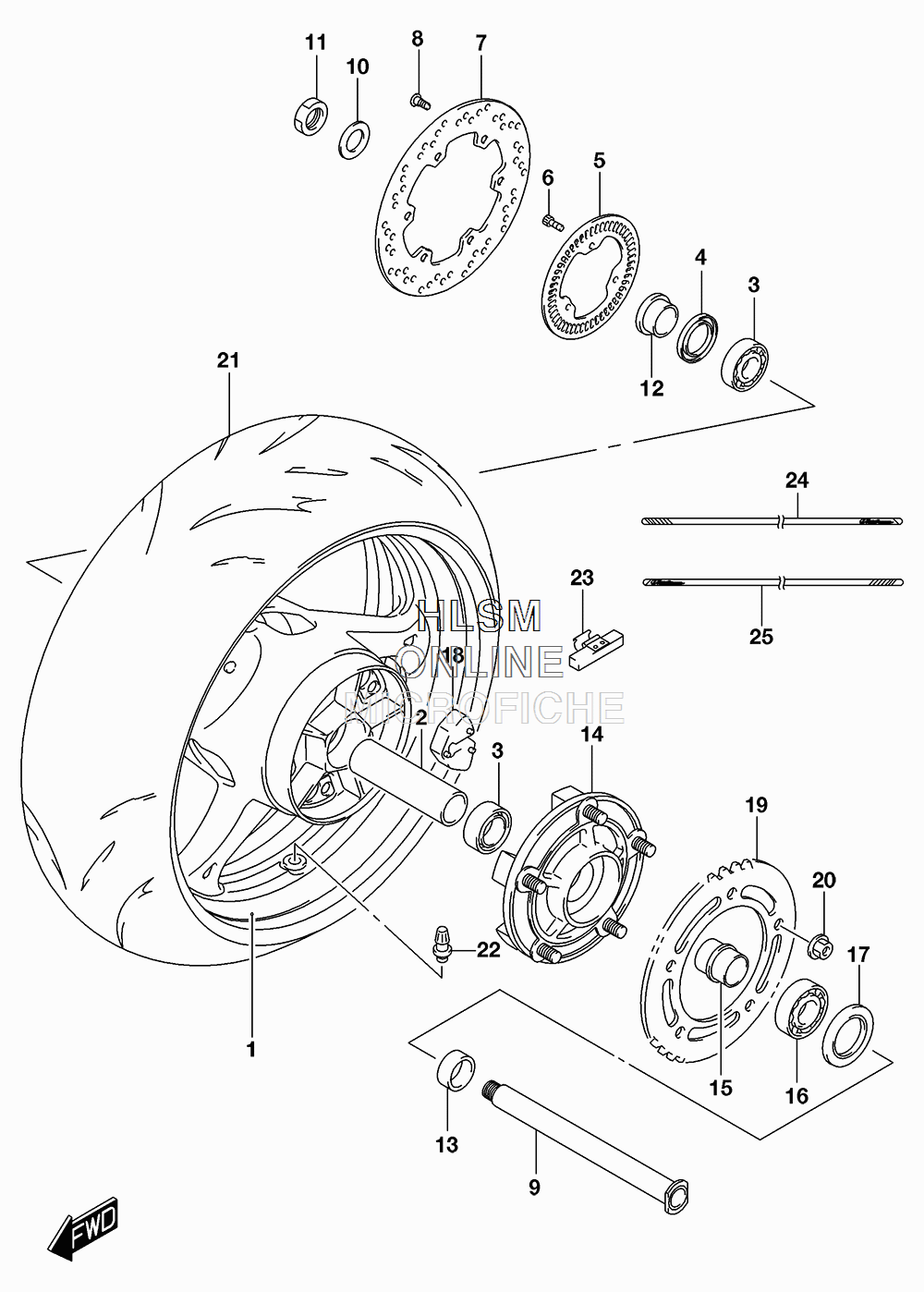

REAR WHEEL (CAN) для Suzuki GSX1300RA L6 HAYABUSA - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    64111-15H10-019 WHEEL, REAR (17M/CXMT6.00) (BLACK)
    WHEEL, REAR (17M/CXMT6.00) (BLACK)
  • 2
    64731-40F10 SPACER, HUB BEARING
    SPACER, HUB BEARING
  • 3
    09262-28052 BEARING (28X52X12)
    BEARING (28X52X12)
  • 4
    09284-37001 OIL SEAL (37X52X8) (RH)
    OIL SEAL (37X52X8) (RH)
  • 5
    64162-23H00 RING, SPEED SENSOR (60T)
    RING, SPEED SENSOR (60T)
  • 6
    07130-0512A BOLT
    BOLT
  • 7
    69211-15H00 DISC, REAR BRAKE
    DISC, REAR BRAKE
  • 8
    09106-08160 BOLT (8X21)
    BOLT (8X21)
  • 9
    64711-33E20 AXLE, REAR
    AXLE, REAR
  • 10
    09160-25070 WASHER (25.2X42X3.2)
    WASHER (25.2X42X3.2)
  • 11
    09159-25003 NUT
    NUT
  • 12
    64741-35F00 SPACER, AXLE (RH)
    SPACER, AXLE (RH)
  • 13
    64751-49G00 SPACER, AXLE (LH)
    SPACER, AXLE (LH)
  • 14
    64610-35F30 DRUM, REAR SPROCKET
    DRUM, REAR SPROCKET
  • 15
    64733-35F00 RETAINER, SPROCKET DRUM
    RETAINER, SPROCKET DRUM
  • 16
    09262-32022 BEARING (32X65X17)
    BEARING (32X65X17)
  • 17
    09285-39001 OIL SEAL (39X65X7)
    OIL SEAL (39X65X7)
  • 18
    64651-35F20 ABSORBER, HUB SHOCK
    ABSORBER, HUB SHOCK
  • 19
    64511-15H00 SPROCKET, REAR (NT:43)
    SPROCKET, REAR (NT:43)
  • 20
    08319-3110A NUT
    NUT
  • 21
    65110-24F50 TIRE, REAR 190/50 ZR17 M/C (73W) BT015 R (BRIDGESTONE)
    TIRE, REAR 190/50 ZR17 M/C (73W) BT015 R (BRIDGESTONE)
  • 22
    43130-24A00 VALVE ASSY, WHEEL RIM (TR412)
    VALVE ASSY, WHEEL RIM (TR412)
  • 23
    55411-22H00 BALANCER, WHEEL NO.1 (10G) (10G)
    BALANCER, WHEEL NO.1 (10G) (10G)
  • 23
    55412-22H00 BALANCER, WHEEL NO.2 (20G) (20G)
    BALANCER, WHEEL NO.2 (20G) (20G)
  • 23
    55413-22H00 BALANCER, WHEEL NO.3 (30G) (30G)
    BALANCER, WHEEL NO.3 (30G) (30G)
  • 24
    68251-15H00-AWZ TAPE, WHEEL REAR RIGHT HAND (BLACK/RED) (FOR AA3)
    TAPE, WHEEL REAR RIGHT HAND (BLACK/RED) (FOR AA3)
  • 24
    68251-15H00-GYR TAPE, WHEEL REAR RIGHT HAND (BLACK/SILVER) (FOR ARA,A9Z)
    TAPE, WHEEL REAR RIGHT HAND (BLACK/SILVER) (FOR ARA,A9Z)
  • 25
    68252-15H00-AWZ TAPE, WHEEL REAR LEFT HAND (BLACK/RED) (FOR AA3)
    TAPE, WHEEL REAR LEFT HAND (BLACK/RED) (FOR AA3)
  • 25
    68252-15H00-GYR TAPE, WHEEL REAR LEFT HAND (BLACK/SILVER) (FOR ARA,A9Z)
    TAPE, WHEEL REAR LEFT HAND (BLACK/SILVER) (FOR ARA,A9Z)
