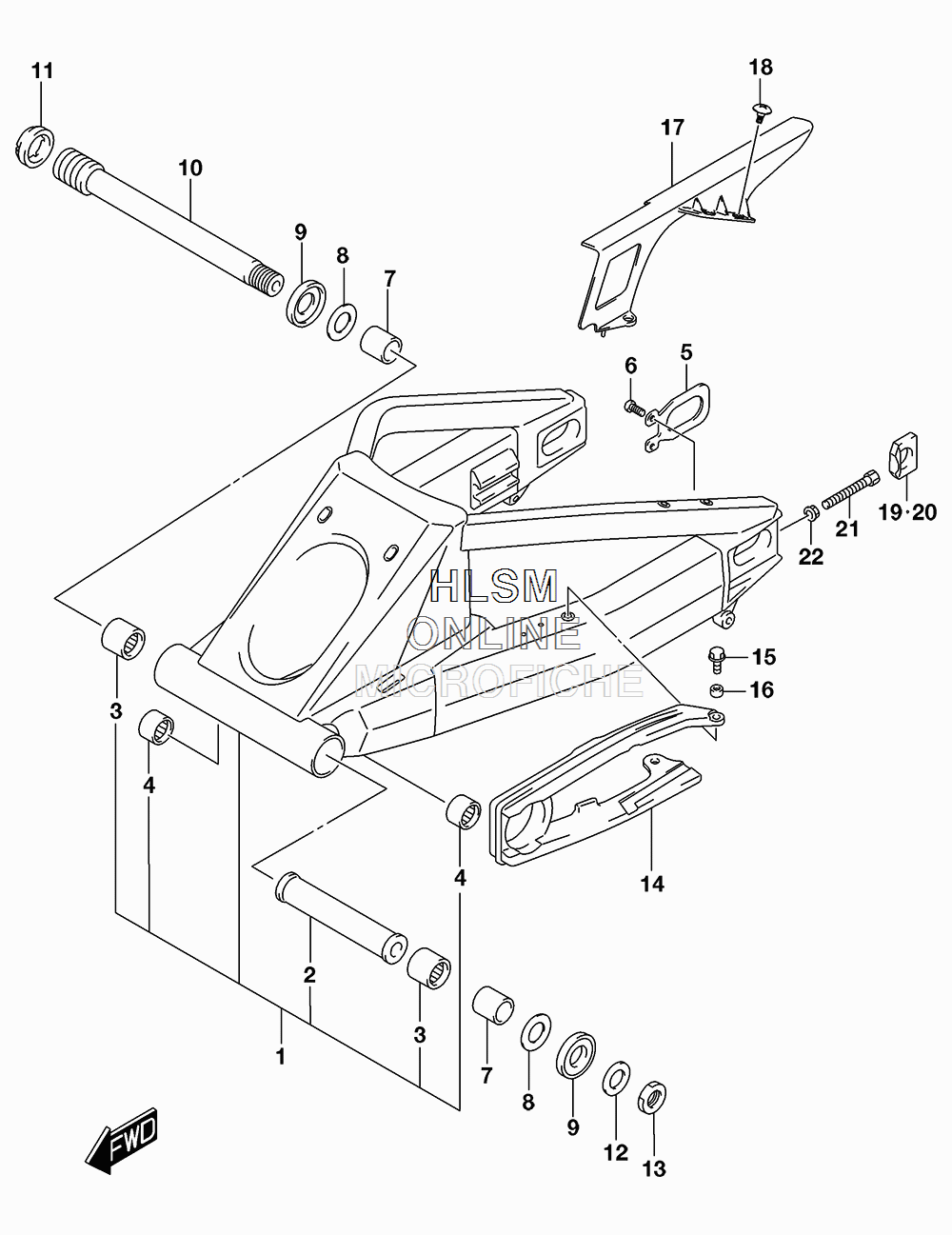

REAR SWINGARM для Suzuki GSX1300RA L6 HAYABUSA - 2016 года выпуска
-
№АртикулНазвание
-
161000-24F50-YAP SWINGINGARM ASSY, REAR (BLACK)SWINGINGARM ASSY, REAR (BLACK)
-
261281-33E20 ...SPACER, CENTER...SPACER, CENTER
-
309263-30040 ...BEARING (30X40X25)...BEARING (30X40X25)
-
409263-17037 ...BEARING (17X24X25)...BEARING (17X24X25)
-
561124-33E00 PLATE, BRACKETPLATE, BRACKET
-
609125-06073 SCREW (6X16)SCREW (6X16)
-
761251-17E20 SPACER, BEARINGSPACER, BEARING
-
808211-25481 WASHERWASHER
-
961262-17E10 SEAL, REAR SWGARM PIVOTSEAL, REAR SWGARM PIVOT
-
1061211-16G00 SHAFT, PIVOTSHAFT, PIVOT
-
1161214-40C31 NUT, PIVOT SHAFTNUT, PIVOT SHAFT
-
1209160-25070 WASHER (25.2X42X3.2)WASHER (25.2X42X3.2)
-
1309159-25003 NUTNUT
-
1461273-15H00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1509116-06152 BOLT (6X20)BOLT (6X20)
-
1609180-06306 SPACER (6.5X9X5)SPACER (6.5X9X5)
-
1761311-15H00 CASE, CHAINCASE, CHAIN
-
1809139-06168 SCREW (6X16)SCREW (6X16)
-
1961446-40F00 ADJUSTER, CHAIN (LH)ADJUSTER, CHAIN (LH)
-
2061445-40F00 ADJUSTER, CHAIN (RH)ADJUSTER, CHAIN (RH)
-
2109100-08287 BOLT (8X50)BOLT (8X50)
-
2208316-1008A NUTNUT
