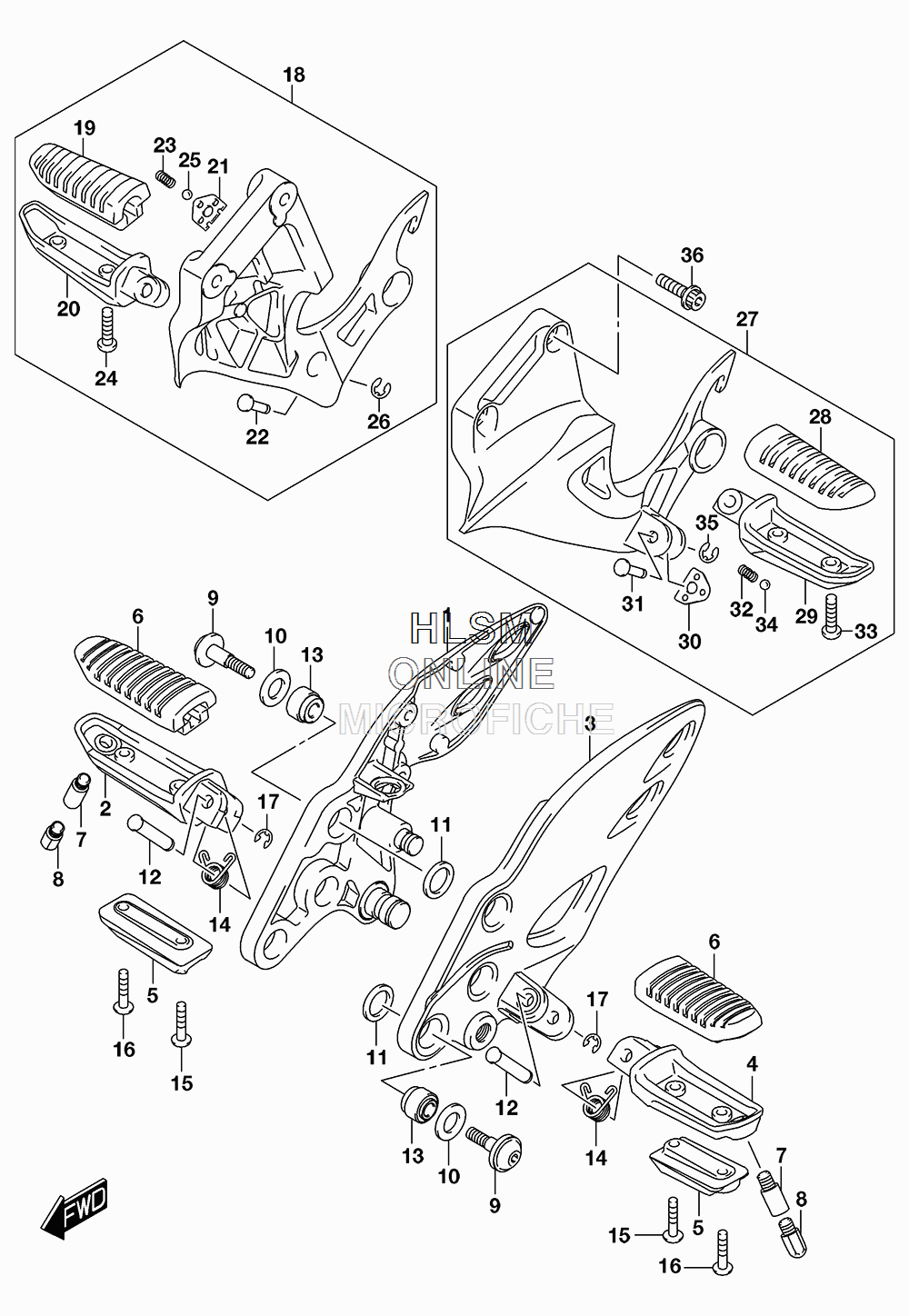

FOOTREST для Suzuki GSX1300RA L6 HAYABUSA - 2016 года выпуска
-
№АртикулНазвание
-
143510-15H00 BRACKET, FRONT FOOTREST (RH)BRACKET, FRONT FOOTREST (RH)
-
243511-44G10 BAR, FRONT FOOTREST (RH)BAR, FRONT FOOTREST (RH)
-
343521-15H00 BRACKET, FRONT FOOTREST (LH)BRACKET, FRONT FOOTREST (LH)
-
443521-44G10 BAR, FRONT FOOTREST (LH)BAR, FRONT FOOTREST (LH)
-
543536-44G00 BALANCER, FRONT FOOTRESTBALANCER, FRONT FOOTREST
-
643550-44G10 RUBBER, FOOTRESTRUBBER, FOOTREST
-
743576-15H00 BOLT, BANK SENSORBOLT, BANK SENSOR
-
843576-15H10 BOLT, BANK SENSORBOLT, BANK SENSOR
-
909106-08147 BOLT (8X30)BOLT (8X30)
-
1009161-13004 WASHER (13.7X24X2)WASHER (13.7X24X2)
-
1109161-17002 WASHER (17.2X24X2.2)WASHER (17.2X24X2.2)
-
1209208-08019 PINPIN
-
1309319-08045 BUSH (8.4X20X16)BUSH (8.4X20X16)
-
1409448-14046 SPRINGSPRING
-
1502142-0525A SCREWSCREW
-
1602142-0530A SCREWSCREW
-
1708332-1106A E RINGE RING
-
1843600-15H20 FOOTREST ASSY, PILLION (RH)FOOTREST ASSY, PILLION (RH)
-
1943550-44G00 ...RUBBER...RUBBER
-
2043611-44G10 ...BAR, PILLION FOOTREST (RH)...BAR, PILLION FOOTREST (RH)
-
2143816-01H10 ...PLATE, PILLION FOOTREST...PLATE, PILLION FOOTREST
-
2209208-08020 ...PIN...PIN
-
2309440-05003 ...SPRING...SPRING
-
2402142-0516A ...SCREW...SCREW
-
2506111-07004 ...BALL...BALL
-
2608332-1106A ...E RING...E RING
-
2743700-15H20 FOOTREST ASSY, PILLION (LH)FOOTREST ASSY, PILLION (LH)
-
2843550-44G00 ...RUBBER...RUBBER
-
2943621-44G10 ...BAR, PILLION FOOTREST (LH)...BAR, PILLION FOOTREST (LH)
-
3043816-01H10 ...PLATE, PILLION FOOTREST...PLATE, PILLION FOOTREST
-
3109208-08020 ...PIN...PIN
-
3209440-05003 ...SPRING...SPRING
-
3302142-0516A ...SCREW...SCREW
-
3406111-07004 ...BALL...BALL
-
3508332-1106A ...E RING...E RING
-
3609106-08121 BOLT (8X30)BOLT (8X30)
