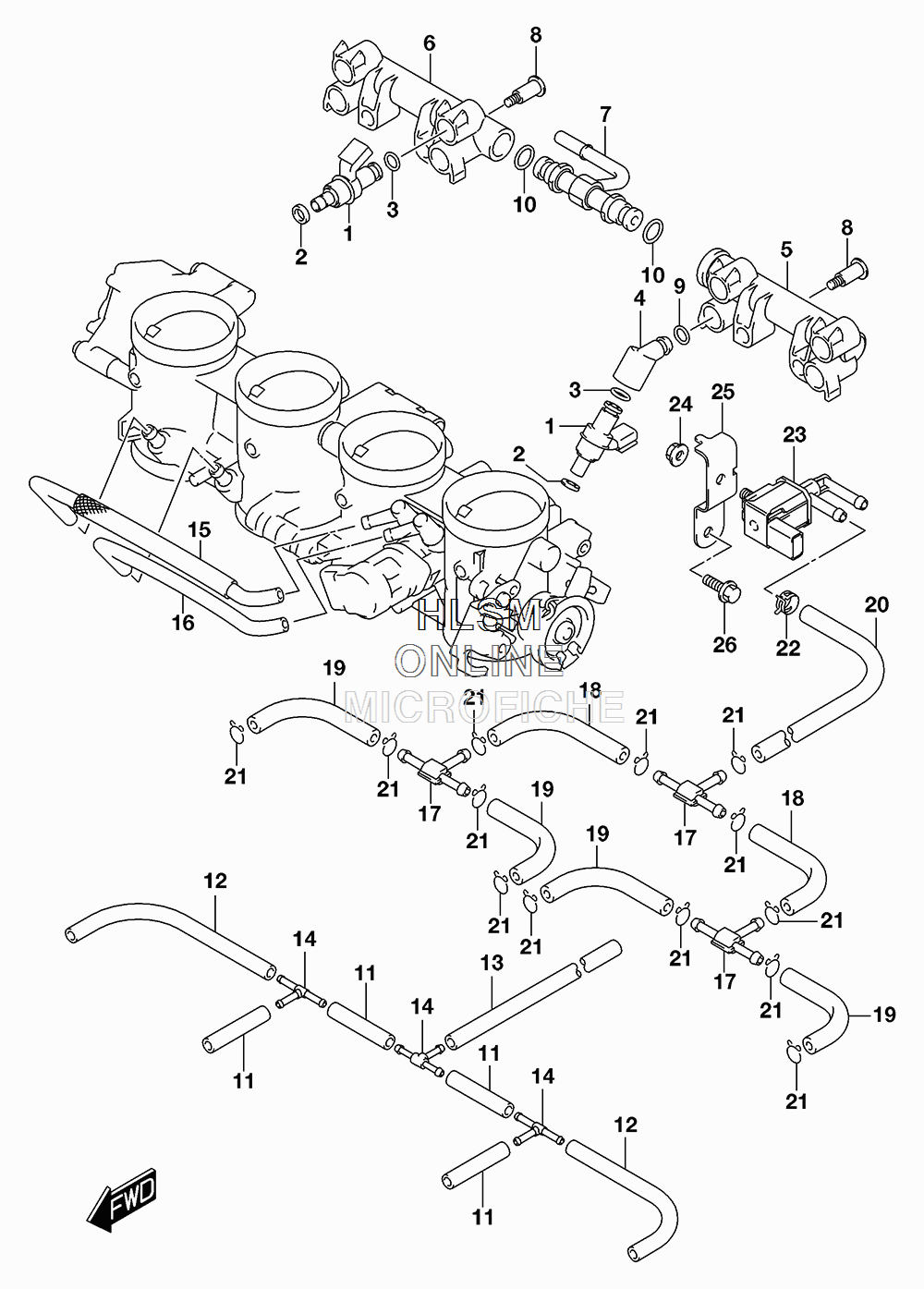

CARBURETOR - THROTTLE BODY FITTINGS (CALIF) для Suzuki GSX1300RA L6 HAYABUSA - 2016 года выпуска
-
№АртикулНазвание
-
115710-21H10 INJECTOR ASSYINJECTOR ASSY
-
215722-21H00 O RINGO RING
-
315721-21H00 O RINGO RING
-
413473-21H00 PIPE, FUELPIPE, FUEL
-
513474-21H00 PIPE, FUELPIPE, FUEL
-
613474-21H10 PIPE, FUELPIPE, FUEL
-
713473-15H10 JOINTJOINT
-
813601-35F00 SCREWSCREW
-
915721-24F00 O RINGO RING
-
1015721-10G00 O RINGO RING
-
1113697-24F00 HOSE, RUBBER (L:35)HOSE, RUBBER (L:35)
-
1213697-24F20 HOSE, RUBBER (L:100)HOSE, RUBBER (L:100)
-
1313697-35F00 HOSE, RUBBER (L:170)HOSE, RUBBER (L:170)
-
1413471-24F30 T JOINTT JOINT
-
1513680-21H10 TUBETUBE
-
1613698-21H00 TUBETUBE
-
1713685-36E50 T JOINTT JOINT
-
1813683-21H20 HOSEHOSE
-
1913683-21H10 HOSEHOSE
-
2013683-15H00 HOSEHOSE
-
2113693-24F00 CLIPCLIP
-
2209401-10411 CLIPCLIP
-
2318117-52G10 VALVE, CANISETER PURGEVALVE, CANISETER PURGE
-
2408316-1006B NUTNUT
-
2513165-15H00 BRACKETBRACKET
-
2601550-0610A BOLTBOLT
