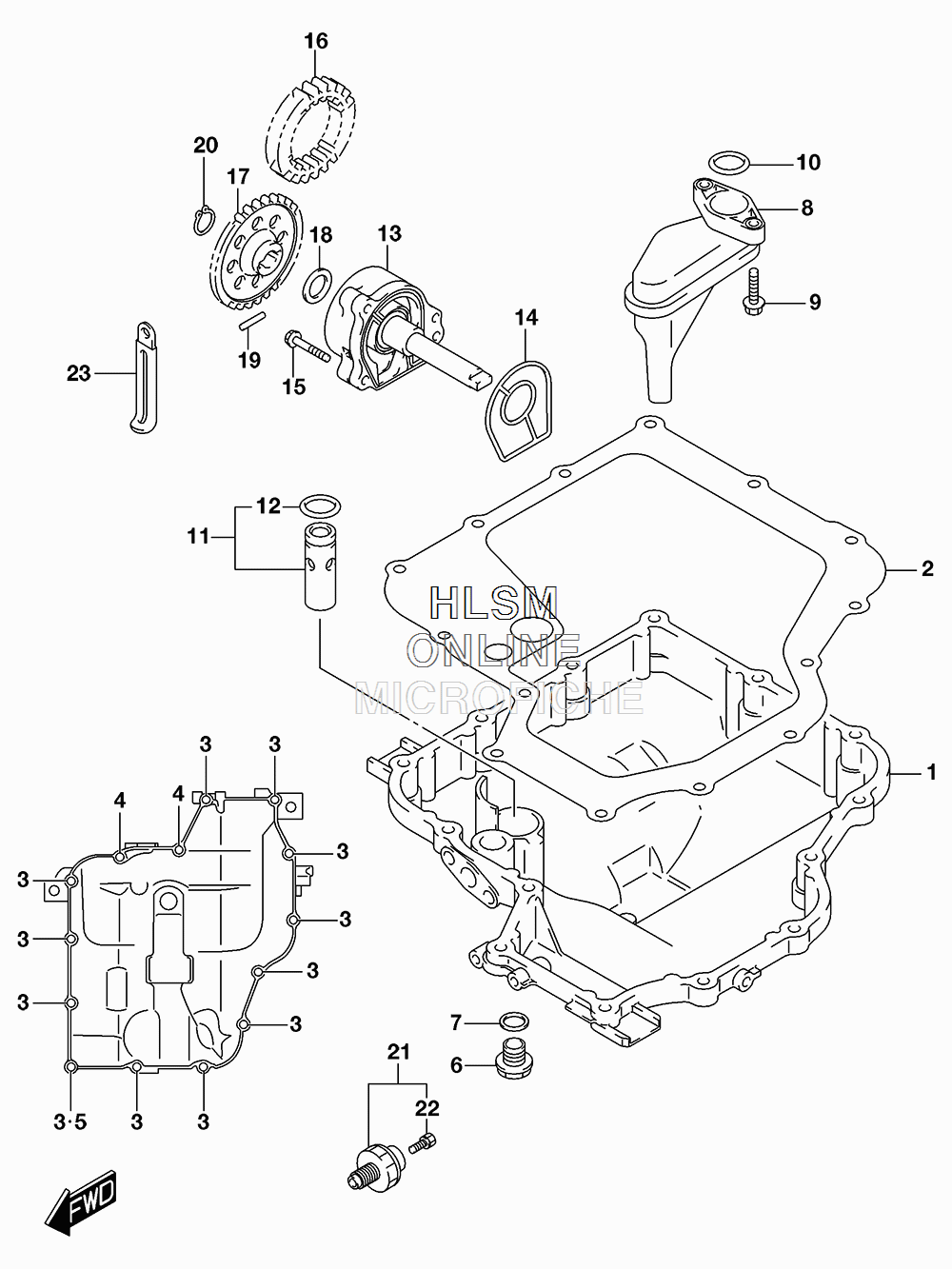

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX1300RA L6 HAYABUSA - 2016 года выпуска`
-
№АртикулНазвание
-
111511-24F10 PAN, OILPAN, OIL
-
211489-24F10 GASKET, OIL PANGASKET, OIL PAN
-
301547-0630A BOLTBOLT
-
401547-0640A BOLTBOLT
-
509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
609247-14036 PLUG (14X20) (OIL DRAIN)PLUG (14X20) (OIL DRAIN)
-
709168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
816520-24F01 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
901550-0620A BOLTBOLT
-
1009280-19008 O RING (D:2.62,ID:20.3)O RING (D:2.62,ID:20.3)
-
1116440-24F00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
1209280-13004 ...O RING (D:1.9,ID:13)...O RING (D:1.9,ID:13)
-
1316400-24F01 PUMP ASSY, ENGINE OILPUMP ASSY, ENGINE OIL
-
1416491-24F00 O RINGO RING
-
1501547-0630A BOLTBOLT
-
1616321-33E10 GEAR, OIL PUMP DRIVE (NT:34)GEAR, OIL PUMP DRIVE (NT:34)
-
1716331-33E00 GEAR, OIL PUMP DRIVEN (NT:37)GEAR, OIL PUMP DRIVEN (NT:37)
-
1809181-12158 SHIM (12X20X0.5)SHIM (12X20X0.5)
-
1909261-05006 PIN (5X18)PIN (5X18)
-
2008331-3112A CIRCLIPCIRCLIP
-
2137820-33D10 SWITCH ASSY, OIL PRESSURESWITCH ASSY, OIL PRESSURE
-
2237822-33D00 ...BOLT...BOLT
-
2309404-06429 CLAMP (L:45)CLAMP (L:45)
