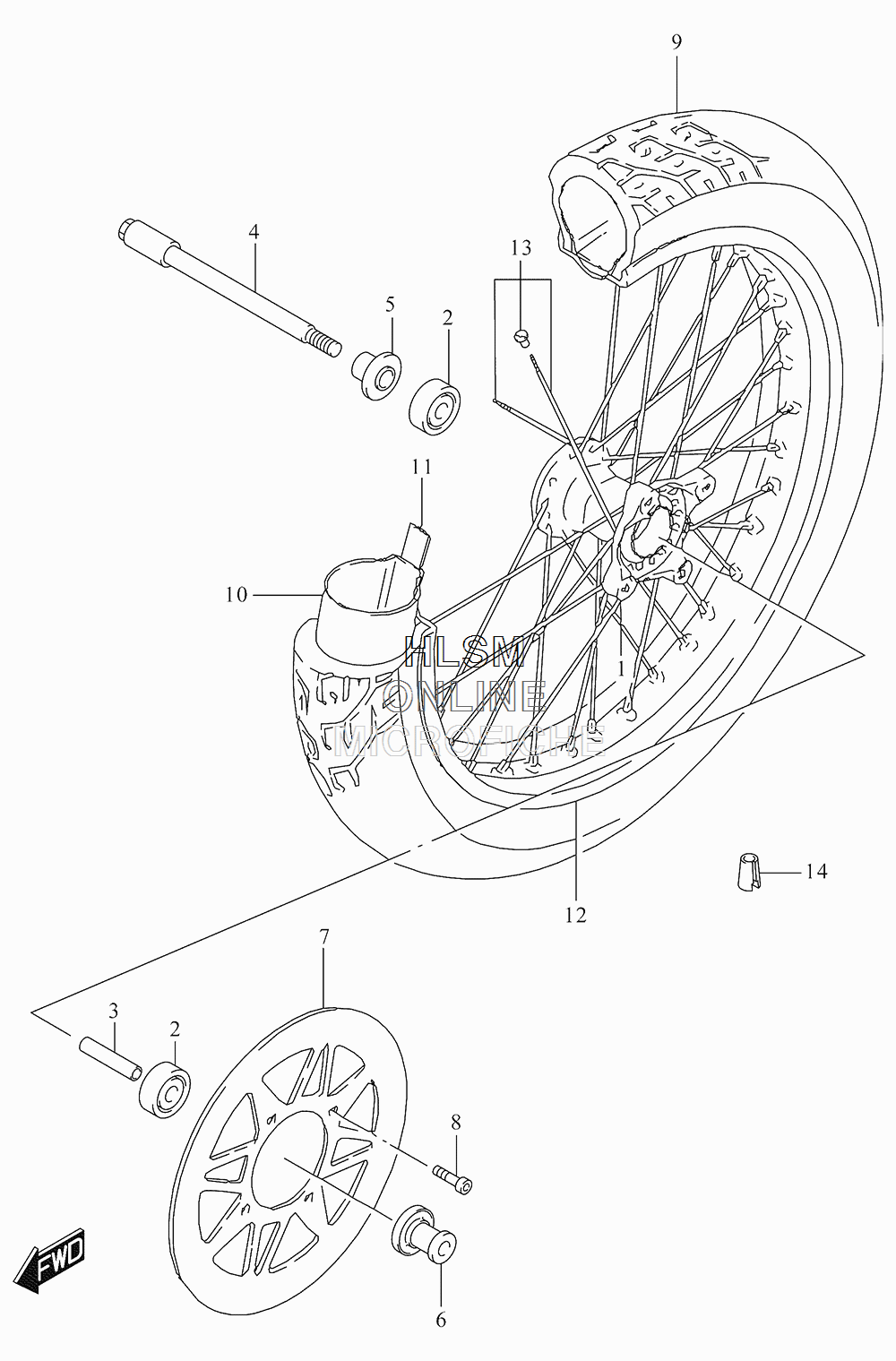

WHEEL - FRONT для Suzuki LS650 L5 BOULEVARD S40 - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    54111-24B01 HUB, FRONT
    HUB, FRONT
  • 2
    08123-63027 BEARING
    BEARING
  • 3
    09180-15074 SPACER (15.3X21.7X56)
    SPACER (15.3X21.7X56)
  • 4
    54711-24B01 AXLE, FRONT
    AXLE, FRONT
  • 5
    54740-24B00 SPACER, FRONT AXLE RIGHT HAND
    SPACER, FRONT AXLE RIGHT HAND
  • 6
    54750-24B00 SPACER, FRONT AXLE LEFT HAND
    SPACER, FRONT AXLE LEFT HAND
  • 7
    59211-24B10 DISC, FRONT BRAKE
    DISC, FRONT BRAKE
  • 8
    09106-08049 BOLT (8X25.5)
    BOLT (8X25.5)
  • 9
    55100-24B02 TIRE, FRONT (100/90-19M/C 57H) (IRC)
    TIRE, FRONT (100/90-19M/C 57H) (IRC)
  • 10
    55200-44610 TUBE ASSY, WHEEL INNER FRONT
    TUBE ASSY, WHEEL INNER FRONT
  • 11
    55261-15020 PROTECTOR, WHEEL INNER TUBE FRONT
    PROTECTOR, WHEEL INNER TUBE FRONT
  • 12
    55311-24B00 RIM, FRONT WHEEL (WM2.15X19)
    RIM, FRONT WHEEL (WM2.15X19)
  • 13
    55320-24B10 SPOKE SET, FRONT WHEEL
    SPOKE SET, FRONT WHEEL
  • 14
    55411-26G00 BALANCER, WHEEL NO.2 (15G)
    BALANCER, WHEEL NO.2 (15G)
  • 14
    55413-41F00 BALANCER, WHEEL NO.3 (30G)
    BALANCER, WHEEL NO.3 (30G)
