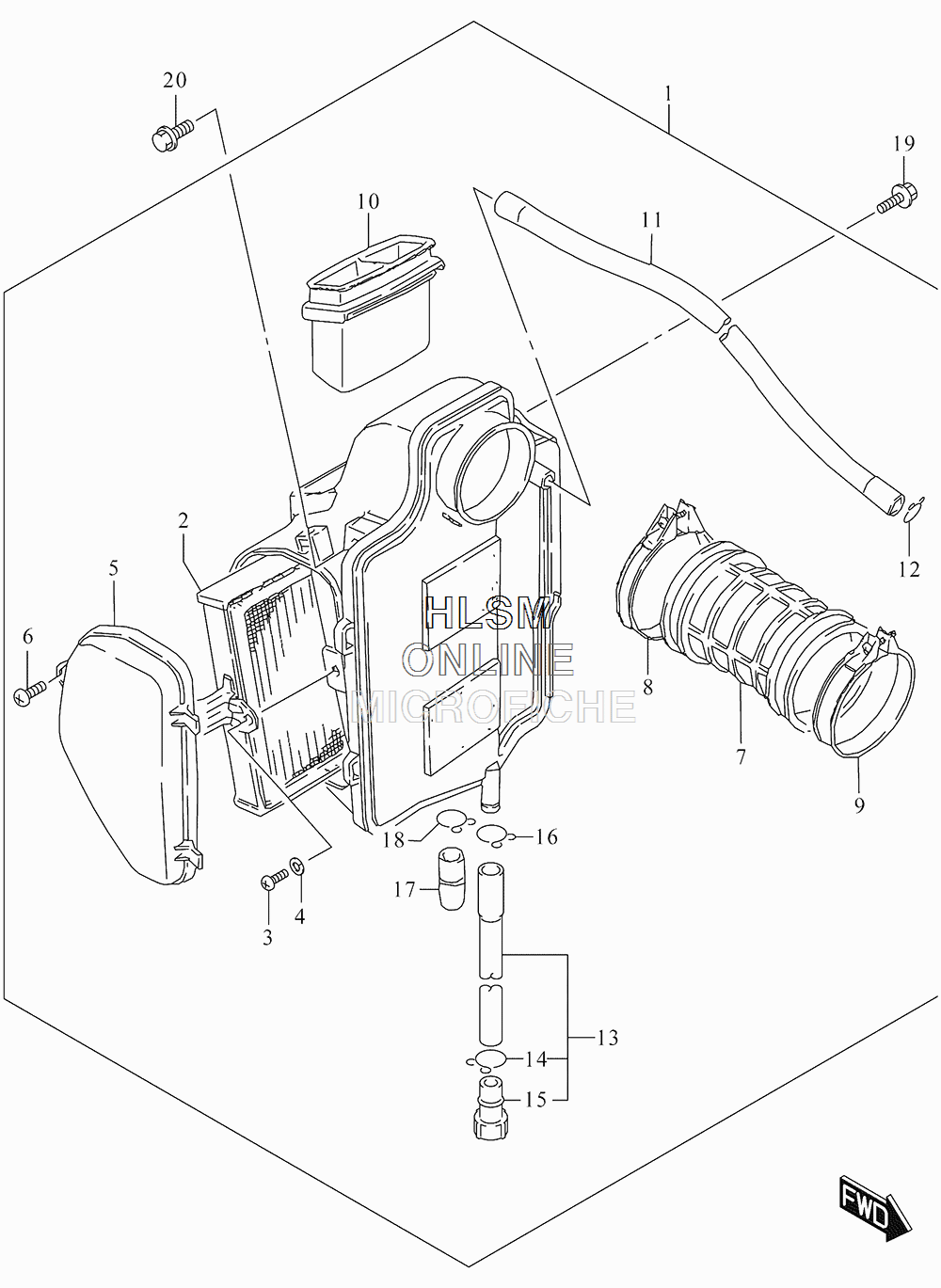

AIR CLEANER для Suzuki LS650 L5 BOULEVARD S40 - 2015 года выпуска

№

Артикул

Название
1

13700-24B06 CLEANER ASSY, AIR

CLEANER ASSY, AIR
2

13780-24B01 ...FILTER ASSY AIR

...FILTER ASSY AIR
3

02112-05107 ...SCREW

...SCREW
4

08321-0105A ...LOCK WASHER

...LOCK WASHER
5

13740-24B01 ...CAP AIR CLEANER

...CAP AIR CLEANER
6

02142-0512A ...SCREW

...SCREW
7

13881-24B01 ...TUBE, OUTLET

...TUBE, OUTLET
8

09402-70902 ...CLAMP

...CLAMP
9

09402-64203 ...CLAMP

...CLAMP
10

13891-24B00 ...TUBE, INLET

...TUBE, INLET
11

09352-11153-600 ...HOSE (11X15X600) (L:600->430)

...HOSE (11X15X600) (L:600->430)
12

09401-14301 ...CLIP

...CLIP
13

13870-11458 ...TUBE, DRAIN

...TUBE, DRAIN
14

13824-18910 …...CLIP

…...CLIP
15

13877-38A00 …...STOPPER, DRAIN

…...STOPPER, DRAIN
16

09401-13409 ...CLIP

...CLIP
17

13859-41B10 ...PLUG

...PLUG
18

09401-14301 ...CLIP

...CLIP
19

09116-06006 BOLT (6X16)

BOLT (6X16)
20

01550-0612B BOLT

BOLT
