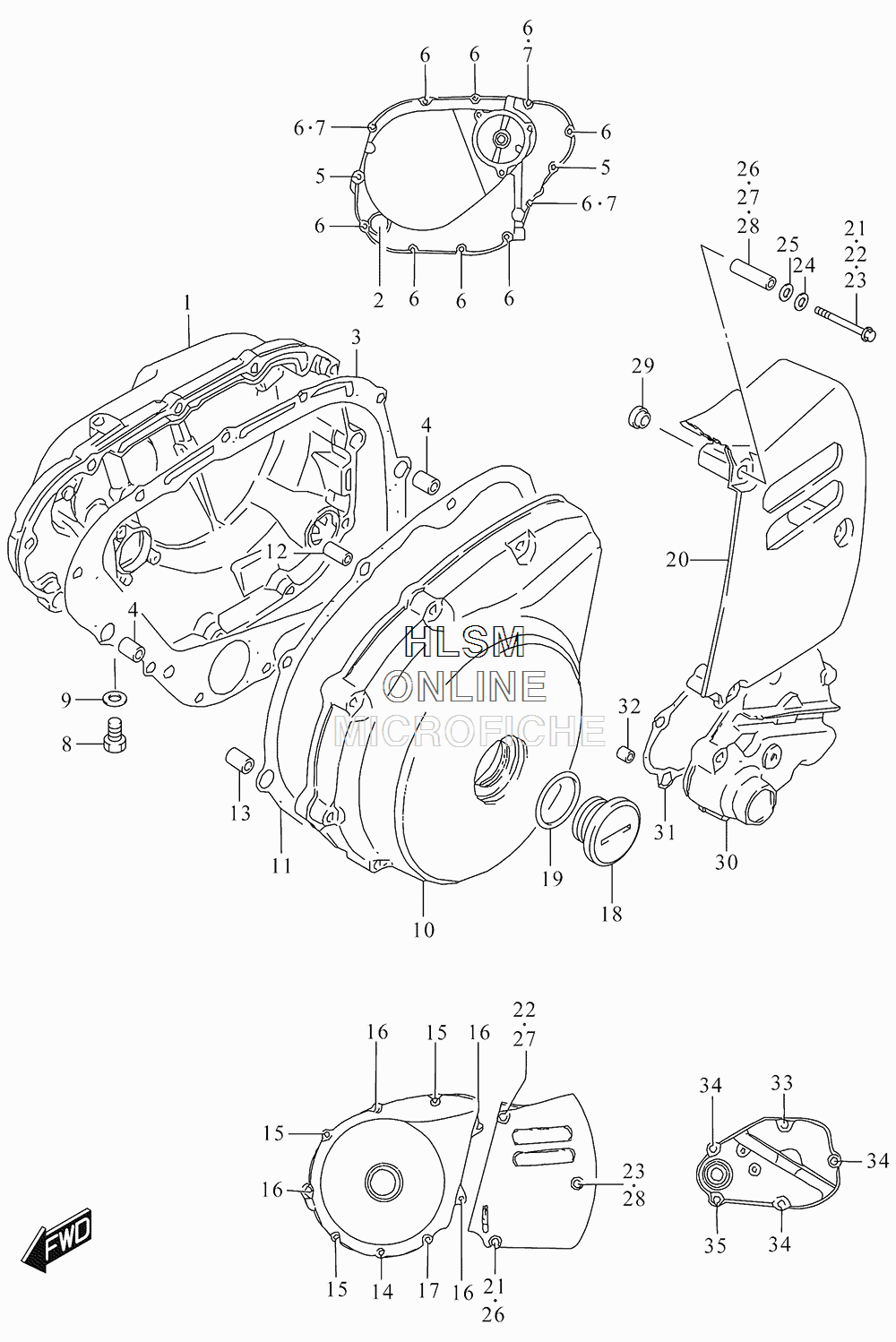

CRANKCASE COVER для Suzuki LS650 L5 BOULEVARD S40 - 2015 года выпуска`
-
№АртикулНазвание
-
111340-24B00 COVER, CLUTCHCOVER, CLUTCH
-
211971-33210 ...LENS, OIL LEVEL CHECK...LENS, OIL LEVEL CHECK
-
311482-24B20 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
404211-11169 PINPIN
-
509103-06214 BOLT (6X35)BOLT (6X35)
-
609103-06212 BOLT (6X25)BOLT (6X25)
-
709168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
809247-12104 PLUG (12X9)PLUG (12X9)
-
909168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
1011351-24B10 COVER, GENERATORCOVER, GENERATOR
-
1111483-24B01-H17 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1204211-09189 PINPIN
-
1304211-11189 PINPIN
-
1409103-06212 BOLT (6X25)BOLT (6X25)
-
1509103-06214 BOLT (6X35)BOLT (6X35)
-
1609103-06224 BOLT (6X45)BOLT (6X45)
-
1709103-06238 BOLT (6X50)BOLT (6X50)
-
1809259-36011 PLUG (36X10)PLUG (36X10)
-
1909280-33004 O RING (D:3.1,ID:32.7)O RING (D:3.1,ID:32.7)
-
2011361-24B10 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2109103-06224 BOLT (6X45)BOLT (6X45)
-
2209103-06238 BOLT (6X50)BOLT (6X50)
-
2309103-06216 BOLT (6X55)BOLT (6X55)
-
2409160-06125 WASHER (6.5X14X1.6)WASHER (6.5X14X1.6)
-
2509161-09006 WASHER (8.7X15X2.1)WASHER (8.7X15X2.1)
-
2609180-06277 SPACER (6.5X9X31.5) (NO.1)SPACER (6.5X9X31.5) (NO.1)
-
2709180-06279 SPACER (6.5X9X38.3) (NO.2)SPACER (6.5X9X38.3) (NO.2)
-
2809180-06280 SPACER (6.5X9X41.3) (NO.3)SPACER (6.5X9X41.3) (NO.3)
-
2909161-09005 WASHER (8.7X16X5)WASHER (8.7X16X5)
-
3011371-24B01 COVER, GEAR SHIFTCOVER, GEAR SHIFT
-
3111485-24B20 GASKET, GEAR SHIFT COVERGASKET, GEAR SHIFT COVER
-
3204211-09109 PINPIN
-
3301547-0616A BOLTBOLT
-
3401547-0630A BOLTBOLT
