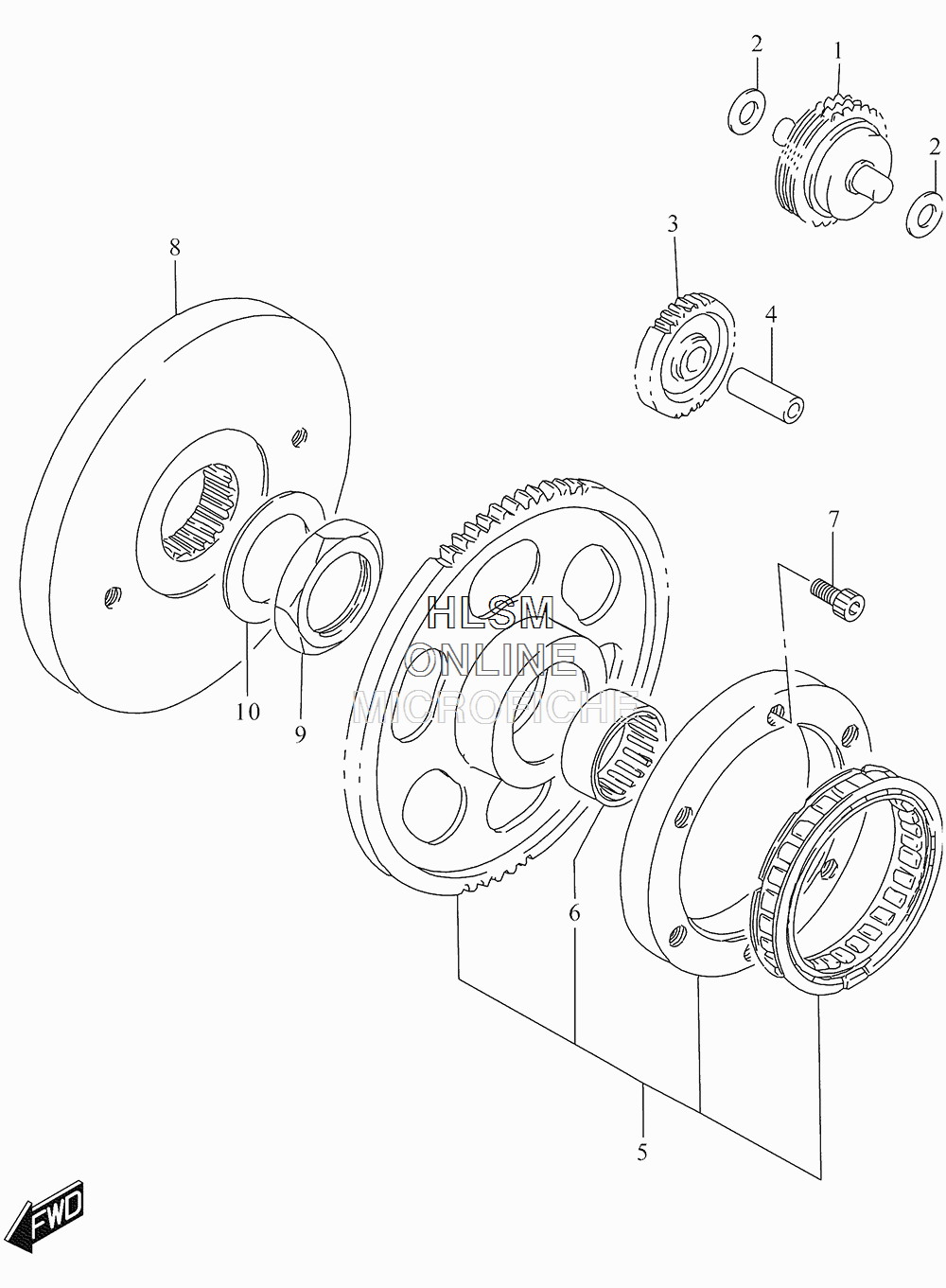

STARTER CLUTCH для Suzuki LS650 L5 BOULEVARD S40 - 2015 года выпуска
-
№АртикулНазвание
-
112600-24B11 LIMITER ASSY, STARTER IDLE GEAR (NT:37)LIMITER ASSY, STARTER IDLE GEAR (NT:37)
-
209181-10167 SHIM (10X18X1)SHIM (10X18X1)
-
312612-24B03 GEAR, STARTER IDLE NO.2 (NT:34)GEAR, STARTER IDLE NO.2 (NT:34)
-
409202-10011 PIN (10X30)PIN (10X30)
-
512600-24831 CLUTCH SET, STARTER (NT:80)CLUTCH SET, STARTER (NT:80)
-
609263-31009 ...BEARING (31X39X17.8)...BEARING (31X39X17.8)
-
709106-08190 BOLT (8X16)BOLT (8X16)
-
812656-24B02 FLYWHEELFLYWHEEL
-
912664-24B01 NUT, FLYWHEELNUT, FLYWHEEL
-
1009164-35002 WASHERWASHER
