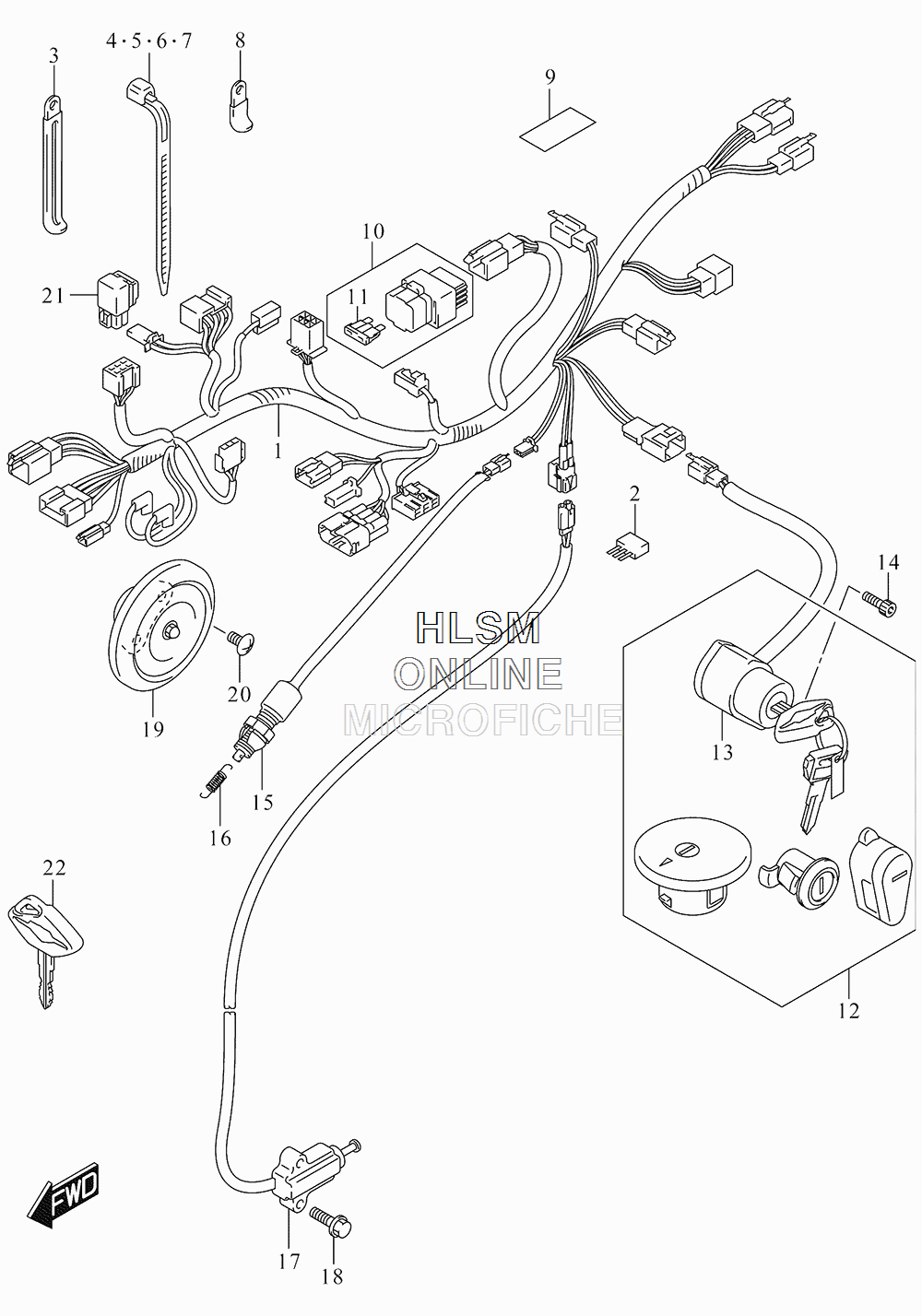

ELECTRICAL - WIRING HARNESS для Suzuki LS650 L5 BOULEVARD S40 - 2015 года выпуска

№

Артикул

Название
1

36610-24BD0 HARNESS, WIRING

HARNESS, WIRING
2

36611-38A00 ...DIODE

...DIODE
3

09404-08419 CLAMP (L:80)

CLAMP (L:80)
4

09407-11401 CLAMP (L:95)

CLAMP (L:95)
5

09407-14403 CLAMP (L:125)

CLAMP (L:125)
6

09407-18402 CLAMP (L:165)

CLAMP (L:165)
7

09407-25401 CLAMP (L:235)

CLAMP (L:235)
8

36651-24B10 CLAMP, WIRING HARNESS

CLAMP, WIRING HARNESS
9

36930-60A10 TAPE, WIRING HARNESS

TAPE, WIRING HARNESS
10

36740-24B01 FUSE ASSY, MAIN

FUSE ASSY, MAIN
11

09481-20101 ...FUSE (20A)

...FUSE (20A)
12

37101-24830 LOCK SET

LOCK SET
13

37110-24B10 ...SWITCH ASSY, IGNITION

...SWITCH ASSY, IGNITION
14

07130-0516B BOLT

BOLT
15

37740-45D00 SWITCH ASSY, STOP LAMP

SWITCH ASSY, STOP LAMP
16

09443-06077 SPRING

SPRING
17

37840-12X50 SWITCH ASSY, SIDE STAND

SWITCH ASSY, SIDE STAND
18

01550-0620B BOLT

BOLT
19

38500-24B00 HORN ASSY

HORN ASSY
20

02142-0612B SCREW

SCREW
21

38740-24X50 RELAY ASSY, SIDE STAND WARING

RELAY ASSY, SIDE STAND WARING
22

37146-38B00 KEY, BLANK (OPT TYPE C)

KEY, BLANK (OPT TYPE C)
22

37146-38B10 KEY, BLANK (OPT TYPE D)

KEY, BLANK (OPT TYPE D)
22

37146-38B20 KEY, BLANK (OPT TYPE E)

KEY, BLANK (OPT TYPE E)
22

37146-38B30 KEY, BLANK (OPT TYPE F)

KEY, BLANK (OPT TYPE F)
