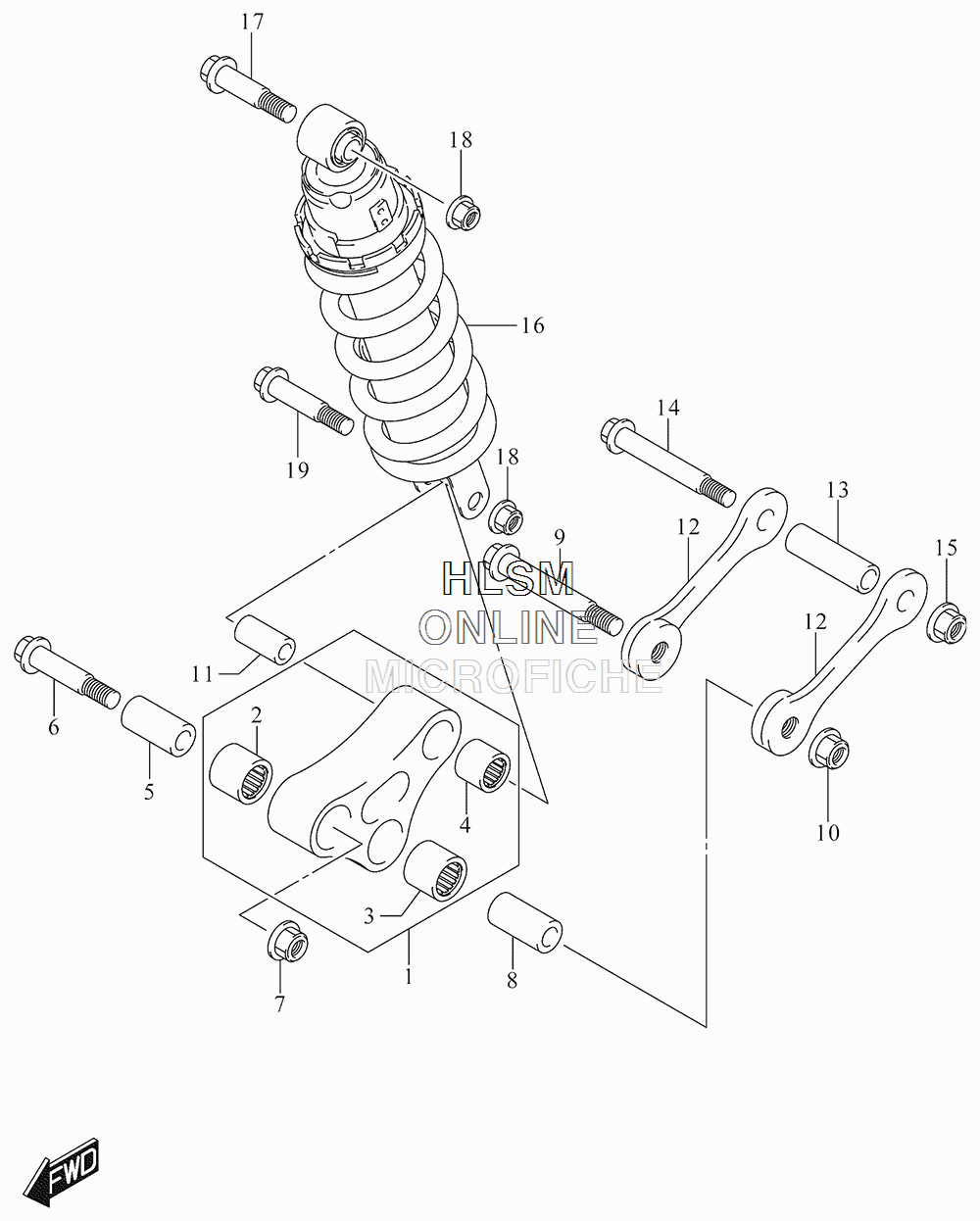

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki GSX-S750 L5 - 2015 года выпуска`
-
№АртикулНазвание
-
162600-08840 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20074 ...BEARING (20X27X32) (FRONT)...BEARING (20X27X32) (FRONT)
-
309263-20074 ...BEARING (20X27X32) (CENTER)...BEARING (20X27X32) (CENTER)
-
409263-17046 ...BEARING (17X24X32) (REAR)...BEARING (17X24X32) (REAR)
-
562317-44B00 SPACER, FRONTSPACER, FRONT
-
662668-42A02 BOLT, FRONTBOLT, FRONT
-
709159-12056 NUTNUT
-
862317-44B00 SPACER, CENTERSPACER, CENTER
-
962658-37F10 BOLT, CENTERBOLT, CENTER
-
1009159-12056 NUTNUT
-
1162317-47H00 SPACER, REARSPACER, REAR
-
1262640-08J00 ROD, REAR CUSHIONROD, REAR CUSHION
-
1362646-08J00 SPACER, RODSPACER, ROD
-
1462658-37F10 BOLT, RODBOLT, ROD
-
1509159-12056 NUTNUT
-
1662100-08JB0-17U ABSORBER ASSY, REAR SHOCK (GRAY)ABSORBER ASSY, REAR SHOCK (GRAY)
-
1709103-10213 BOLT (10X52) (UPPER)BOLT (10X52) (UPPER)
-
1809159-10115 NUTNUT
-
1909103-10428 BOLT (10X58) (LOWER)BOLT (10X58) (LOWER)
