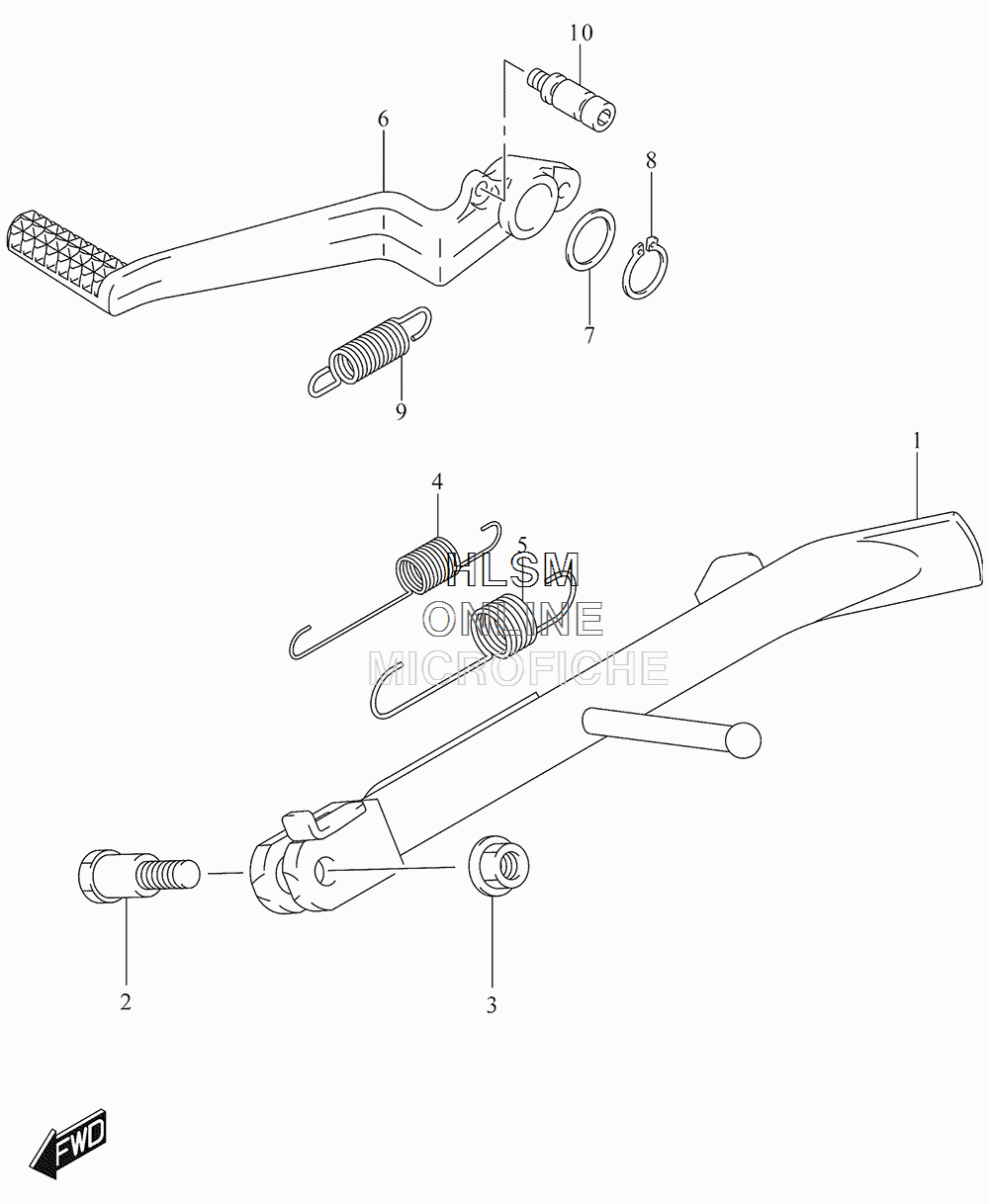

BRAKE PEDAL W/ STAND для Suzuki GSX-S750 L5 - 2015 года выпуска
-
№АртикулНазвание
-
142310-04K10 STAND, PROPSTAND, PROP
-
209111-10059 BOLT (10X21)BOLT (10X21)
-
308319-3110A NUTNUT
-
409443-14058 SPRINGSPRING
-
509443-19011 SPRINGSPRING
-
643111-08J00 PEDAL, BRAKEPEDAL, BRAKE
-
709160-18022 WASHER (18X24X1)WASHER (18X24X1)
-
808331-3118A CIRCLIPCIRCLIP
-
909443-13032 SPRINGSPRING
-
1043561-24F00 HOOK, RETURN SPRINGHOOK, RETURN SPRING
