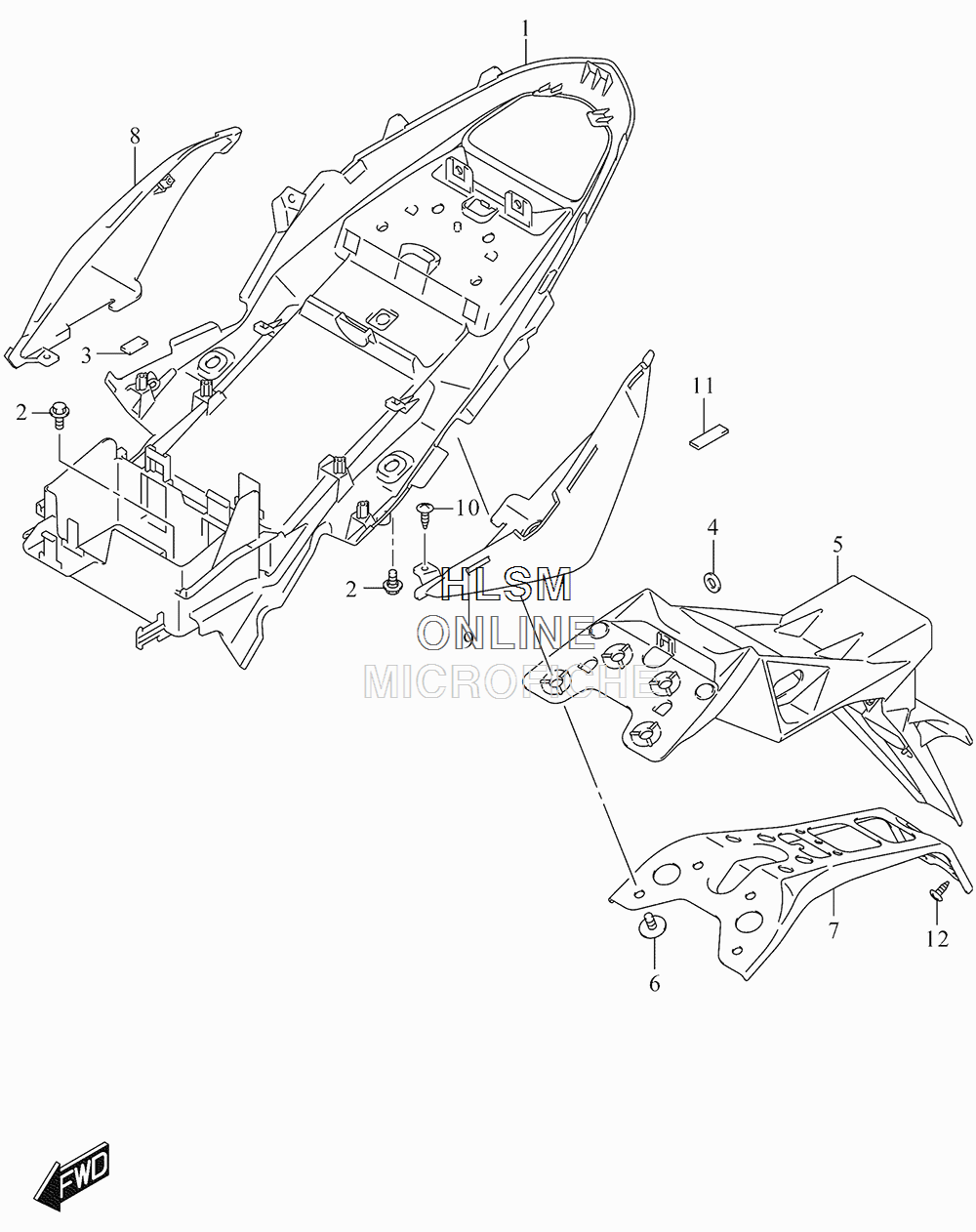

FENDER - REAR для Suzuki GSX-S750 L5 - 2015 года выпуска
-
№АртикулНазвание
-
163111-08J00 FENDER, REAR FRONTFENDER, REAR FRONT
-
209111-06107 BOLT (6X12)BOLT (6X12)
-
344612-13600 CUSHION (CUT AS REQUIRED)CUSHION (CUT AS REQUIRED)
-
409160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
563113-08J10 FENDER, REAR REARFENDER, REAR REAR
-
609116-06168 BOLT (6X16)BOLT (6X16)
-
763131-08J00 BRACKET, REAR FENDER REARBRACKET, REAR FENDER REAR
-
863171-08J00 COVER, REAR FENDER RIGHT HANDCOVER, REAR FENDER RIGHT HAND
-
963181-08J00 COVER, REAR FENDER LEFT HANDCOVER, REAR FENDER LEFT HAND
-
1003541-0516A SCREWSCREW
-
1194443-06G00 TAPE, REAR FENDERTAPE, REAR FENDER
-
1203541-0616A SCREWSCREW
