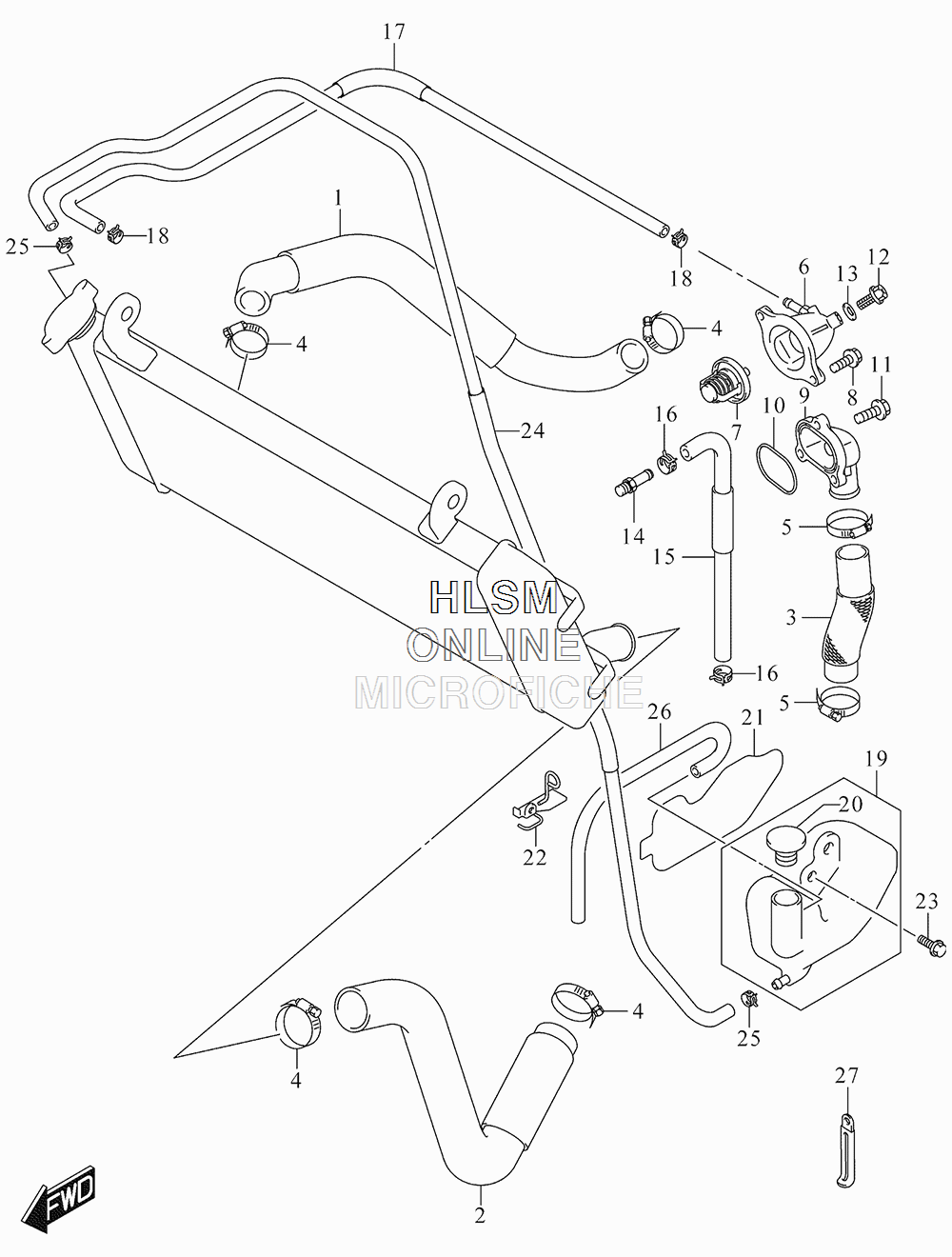

RADIATOR HOSE W/ RESERVOIR для Suzuki GSX-S750 L5 - 2015 года выпуска
-
№АртикулНазвание
-
117851-08J00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
217852-08J10 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
317853-35F10 HOSE, CYLINDER INLETHOSE, CYLINDER INLET
-
409402-35501 CLAMPCLAMP
-
509402-38512 CLAMPCLAMP
-
617661-35F00 COVER, THERMOSTATCOVER, THERMOSTAT
-
717670-76G00 THERMOSTAT, WATERTHERMOSTAT, WATER
-
801547-0620A BOLTBOLT
-
917861-08J00 CONNECTOR, CYLINDER WATERCONNECTOR, CYLINDER WATER
-
1017863-33E00 O RINGO RING
-
1101547-0620A BOLTBOLT
-
1217568-50F00 BOLT, THERMOSTAT COVER AIRBOLT, THERMOSTAT COVER AIR
-
1309168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
1409362-09011 UNIONUNION
-
1517854-08J00 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
1609401-12414 CLAMPCLAMP
-
1717855-08J00 HOSE, WATER AIR BLEEDHOSE, WATER AIR BLEED
-
1809401-10409 CLIPCLIP
-
1917910-08J00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
2017931-02FA0 ...CAP...CAP
-
2117912-08J00 SHIELD, RESERVIOR TANK HEATSHIELD, RESERVIOR TANK HEAT
-
2217914-08J00 PLATE, RESERVOIR TANK CAPPLATE, RESERVOIR TANK CAP
-
2309111-06085 BOLT (6X12)BOLT (6X12)
-
2417981-08J00 HOSE, RESERVOIR TANK INLETHOSE, RESERVOIR TANK INLET
-
2509401-08411 CLIPCLIP
-
2617981-19F00 HOSE, OVER FLOW (CUT AS REQUIRED)HOSE, OVER FLOW (CUT AS REQUIRED)
-
2709404-06429 CLAMP (L:45)CLAMP (L:45)
