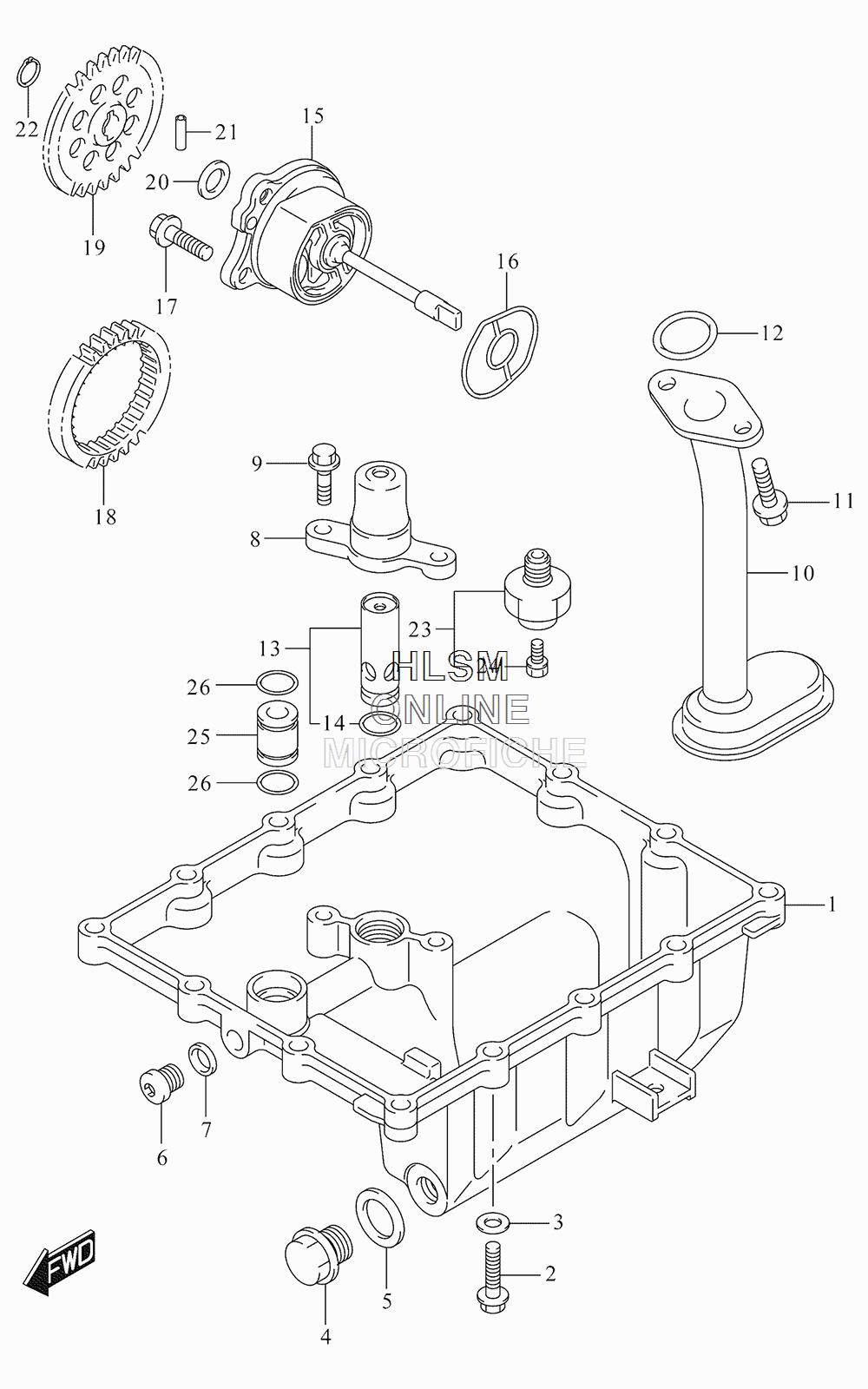

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX-S750 L5 - 2015 года выпуска
-
№АртикулНазвание
-
111511-08J00 PAN, OILPAN, OIL
-
201547-0625A BOLTBOLT
-
309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
409247-14036 PLUG (14X20) (OIL DRAIN)PLUG (14X20) (OIL DRAIN)
-
509168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
609248-10010 PLUG (10X10)PLUG (10X10)
-
709168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
811512-44G00 CAP, OIL RELIEF VALVECAP, OIL RELIEF VALVE
-
901547-0620A BOLTBOLT
-
1016520-44G00 STRAINER ASSY, ENGINE OILSTRAINER ASSY, ENGINE OIL
-
1101550-0616A BOLTBOLT
-
1209280-19008 O RING (D:2.62,ID:20.3)O RING (D:2.62,ID:20.3)
-
1316440-24F00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
1409280-13004 ...O RING (D:1.9,ID:13)...O RING (D:1.9,ID:13)
-
1516400-35F00 PUMP ASSY, ENGINE OILPUMP ASSY, ENGINE OIL
-
1616491-35F00 O RINGO RING
-
1701547-0620A BOLTBOLT
-
1816321-35F01 GEAR, OIL PUMP DRIVE (NT:33)GEAR, OIL PUMP DRIVE (NT:33)
-
1916331-35F00 GEAR, OIL PUMP DRIVEN (NT:35)GEAR, OIL PUMP DRIVEN (NT:35)
-
2009181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
2109261-04009 PIN (4X15.8)PIN (4X15.8)
-
2208331-31109 CIRCLIPCIRCLIP
-
2337820-33D10 SWITCH ASSY, OIL PRESSURESWITCH ASSY, OIL PRESSURE
-
2437822-33D00 ...BOLT...BOLT
-
2511281-44G00 PIPE, OIL GALLERYPIPE, OIL GALLERY
-
2609280-13004 O RING (D:1.9,ID:13)O RING (D:1.9,ID:13)
