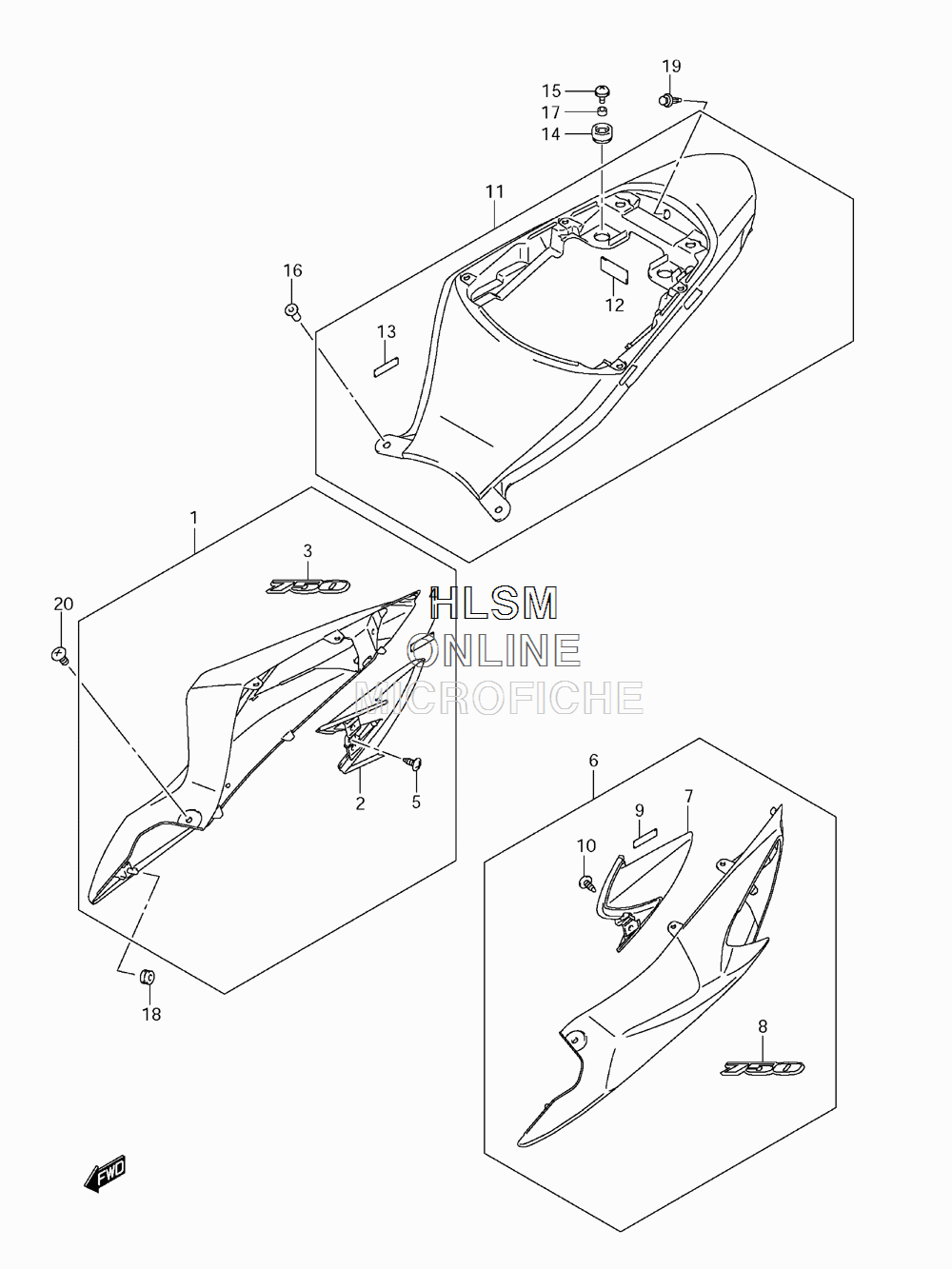

SIDE COVER для Suzuki GSX-R750 L2 - 2012 года выпуска

№

Артикул

Название
1

47100-15J10-YBD COVER, FRAME RIGHT (WHITE FOR GLR - BLUE)

COVER, FRAME RIGHT (WHITE FOR GLR - BLUE)
1

47100-15J10-6UX COVER, FRAME RIGHT (BLACK - FOR KGK - YELLOW)

COVER, FRAME RIGHT (BLACK - FOR KGK - YELLOW)
2

47611-14J00 ...COVER, FRAME

...COVER, FRAME
3

68131-15J00-JWH ...EMBLEM, "750" (ORANGE/BLACK FOR GLR)

...EMBLEM, "750" (ORANGE/BLACK FOR GLR)
3

68131-15J00-DUJ ...EMBLEM, "750" (GRAY/BLACK FOR KGK)

...EMBLEM, "750" (GRAY/BLACK FOR KGK)
4

94443-06G00 ...TAPE

...TAPE
5

03541-0512A ...SCREW

...SCREW
6

47200-15J10-YBD COVER, FRAME LEFT (WHITE FOR GLR - BLUE)

COVER, FRAME LEFT (WHITE FOR GLR - BLUE)
6

47200-15J10-6UX COVER, FRAME LEFT (BLACK - FOR KGK - YELLOW)

COVER, FRAME LEFT (BLACK - FOR KGK - YELLOW)
7

47621-14J00 ...COVER, FRAME

...COVER, FRAME
8

68131-15J00-JWH ...EMBLEM, "750" (ORANGE/BLACK FOR GLR)

...EMBLEM, "750" (ORANGE/BLACK FOR GLR)
8

68131-15J00-DUJ ...EMBLEM, "750" (GRAY/BLACK FOR KGK)

...EMBLEM, "750" (GRAY/BLACK FOR KGK)
9

94443-06G00 ...TAPE

...TAPE
10

03541-0512A ...SCREW

...SCREW
11

47300-14J00 COVER, FRAME CENTER

COVER, FRAME CENTER
12

48128-14FA0 ...CUSHION

...CUSHION
13

94443-06G00 ...TAPE

...TAPE
14

47312-37H00 CUSHION, CENTER

CUSHION, CENTER
15

09136-06056 SCREW (6X16)

SCREW (6X16)
16

09159-05019 NUT

NUT
17

09180-06283 SPACER (6.5X10X7)

SPACER (6.5X10X7)
18

09320-06504 CUSHION

CUSHION
19

09409-06314-5PK CLIP (BLACK)

CLIP (BLACK)
20

02142-1520B SCREW

SCREW
