GASKET SET для Suzuki GSX-R750 L2 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1

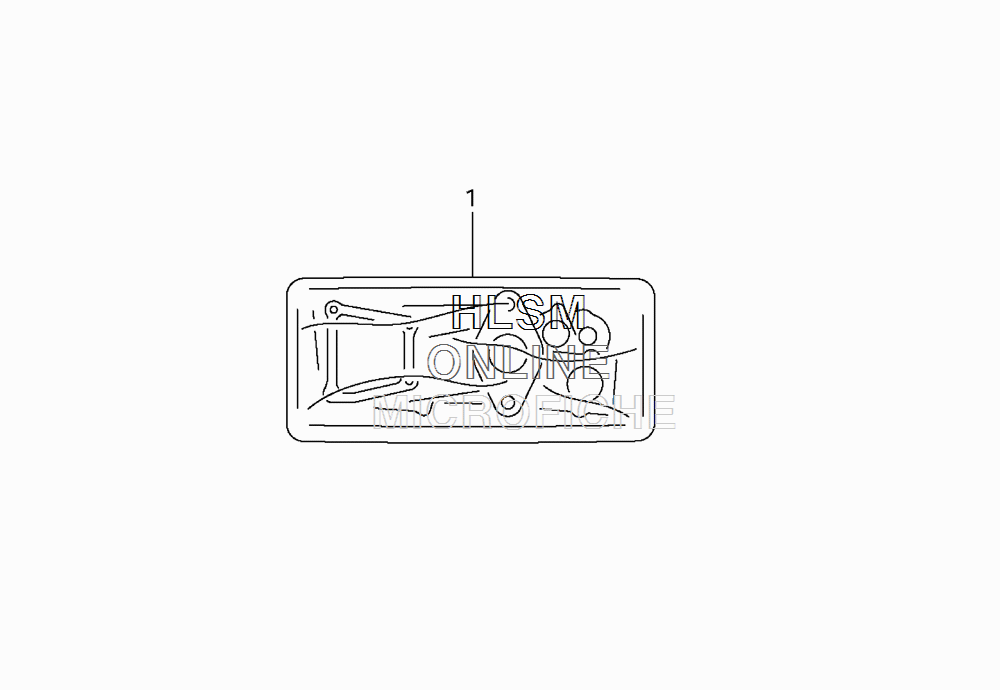

    11401-02891 GASKET SET
    GASKET SET
  • 2
    11141-02H00 ...GASKET, CYLINDER HEAD
    ...GASKET, CYLINDER HEAD
  • 3
    11173-01H00 ...GASKET, CYLINDER HEAD COVER NO.1
    ...GASKET, CYLINDER HEAD COVER NO.1
  • 4
    11178-01H00 ...GASKET, CYLINDER HEAD COVER NO.2
    ...GASKET, CYLINDER HEAD COVER NO.2
  • 5
    11191-27E00 ...WASHER, HEAD COVER
    ...WASHER, HEAD COVER
  • 6
    11482-01H00 ...GASKET, CLUTCH COVER
    ...GASKET, CLUTCH COVER
  • 7
    11483-01H00 ...GASKET, GENERATOR COVER
    ...GASKET, GENERATOR COVER
  • 8
    11484-01H00 ...GASKET, BREATHER COVER
    ...GASKET, BREATHER COVER
  • 9
    11489-01H01 ...GASKET, OIL PAN
    ...GASKET, OIL PAN
  • 10
    12837-02H00 ...GASKET, TENSIONER ADJUSTER
    ...GASKET, TENSIONER ADJUSTER
  • 11
    14181-46E00 ...GASKET, EXHAUST PIPE
    ...GASKET, EXHAUST PIPE
  • 12
    09280-15007 ...O RING (D:2.4,ID:15.8)
    ...O RING (D:2.4,ID:15.8)
  • 13
    09280-17003 ...O RING (D:3.1,ID:16.8)
    ...O RING (D:3.1,ID:16.8)
  • 14
    09280-25004 ...O RING (D:2.4,ID:24.7)
    ...O RING (D:2.4,ID:24.7)
  • 15
    09280-33004 ...O RING (D:3.1,ID:32.7)
    ...O RING (D:3.1,ID:32.7)
  • 16
    09280-71008 ...O RING (D:2.6,ID:67.1)
    ...O RING (D:2.6,ID:67.1)
