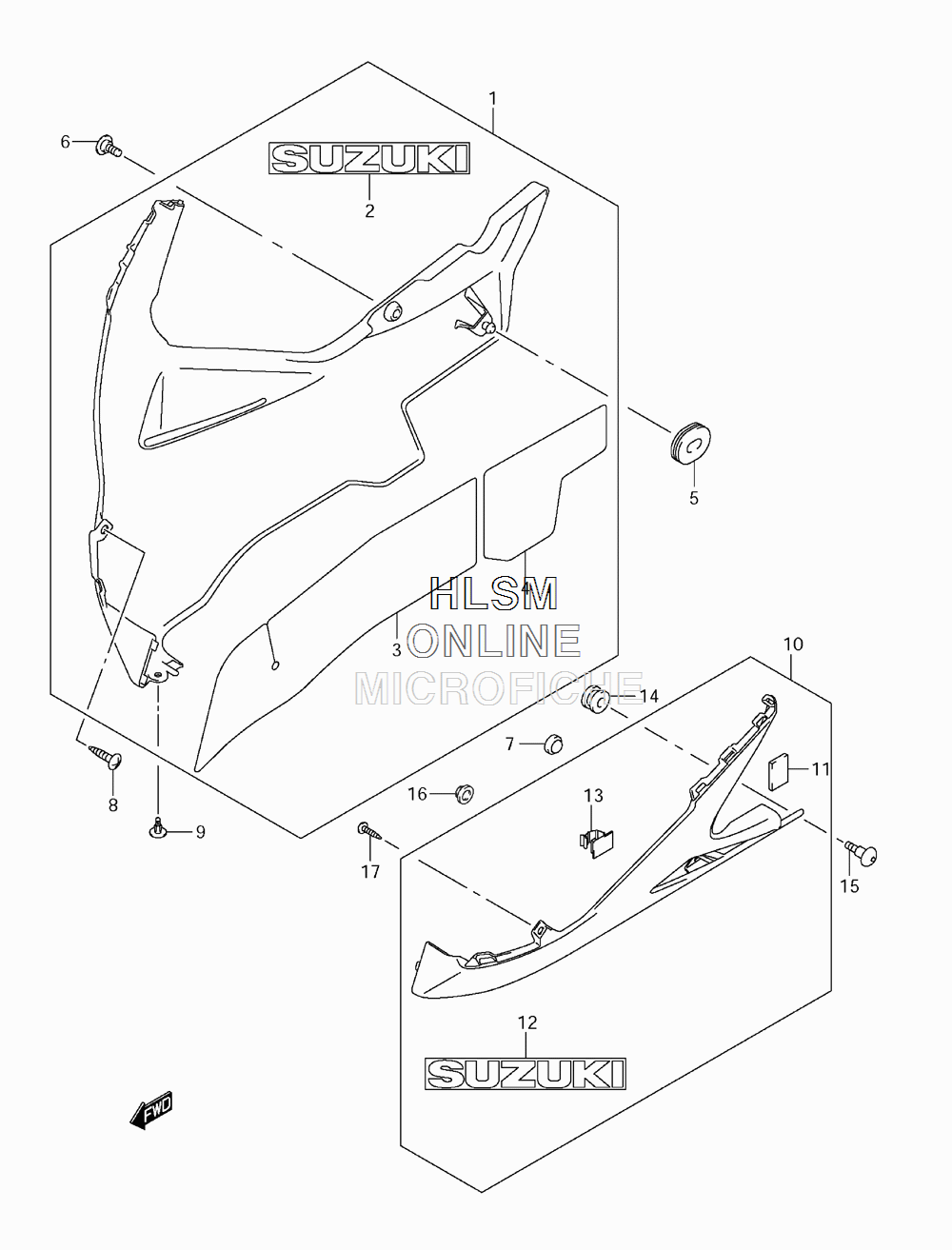

COWLING - UNDER BODY для Suzuki GSX-R750 L2 - 2012 года выпуска
-
№АртикулНазвание
-
194470-14J00-YUA COWLING, UNDER RIGHT (YUA - STELLAR BLUE FOR GLR)COWLING, UNDER RIGHT (YUA - STELLAR BLUE FOR GLR)
-
194470-14J00-YKV COWLING, UNDER RIGHT (YKV - MET BLACK FOR KGK)COWLING, UNDER RIGHT (YKV - MET BLACK FOR KGK)
-
268181-33C20-Y4P ...EMBLEM (Y4P - GRAY FOR YUA - BLUE)...EMBLEM (Y4P - GRAY FOR YUA - BLUE)
-
268181-33C20-17U ...EMBLEM (17U - GRAY FOR YKV - BLACK)...EMBLEM (17U - GRAY FOR YKV - BLACK)
-
394479-14J00 ...SHIELD, UNDER COWL HEAT...SHIELD, UNDER COWL HEAT
-
494479-14J10 ...SHIELD, UNDER COWL HEAT...SHIELD, UNDER COWL HEAT
-
594478-14J00 CUSHIONCUSHION
-
694476-14J00 SCREW (5X13)SCREW (5X13)
-
709321-10018 CUSHIONCUSHION
-
803541-0512A SCREWSCREW
-
994479-35F00 CLIPCLIP
-
1094480-14J00-YUA COWLING, UNDER LEFT (YUA - STELLAR BLUE FOR GLR)COWLING, UNDER LEFT (YUA - STELLAR BLUE FOR GLR)
-
1094480-14J00-YKV COWLING, UNDER LEFT (YKV - MET BLACK FOR KGK)COWLING, UNDER LEFT (YKV - MET BLACK FOR KGK)
-
1147161-10FA0 ...PROTECTOR, UNDER COWL...PROTECTOR, UNDER COWL
-
1268181-33C20-Y4P ...EMBLEM (Y4P - GRAY FOR YUA - BLUE)...EMBLEM (Y4P - GRAY FOR YUA - BLUE)
-
1268181-33C20-17U ...EMBLEM (17U - GRAY FOR YKV - BLACK)...EMBLEM (17U - GRAY FOR YKV - BLACK)
-
1309403-14311 ...CLAMP...CLAMP
-
1409320-09016 CUSHIONCUSHION
-
1509139-06190 BOLT (6X20)BOLT (6X20)
-
1609321-10018 CUSHIONCUSHION
-
1703541-0512A SCREWSCREW
