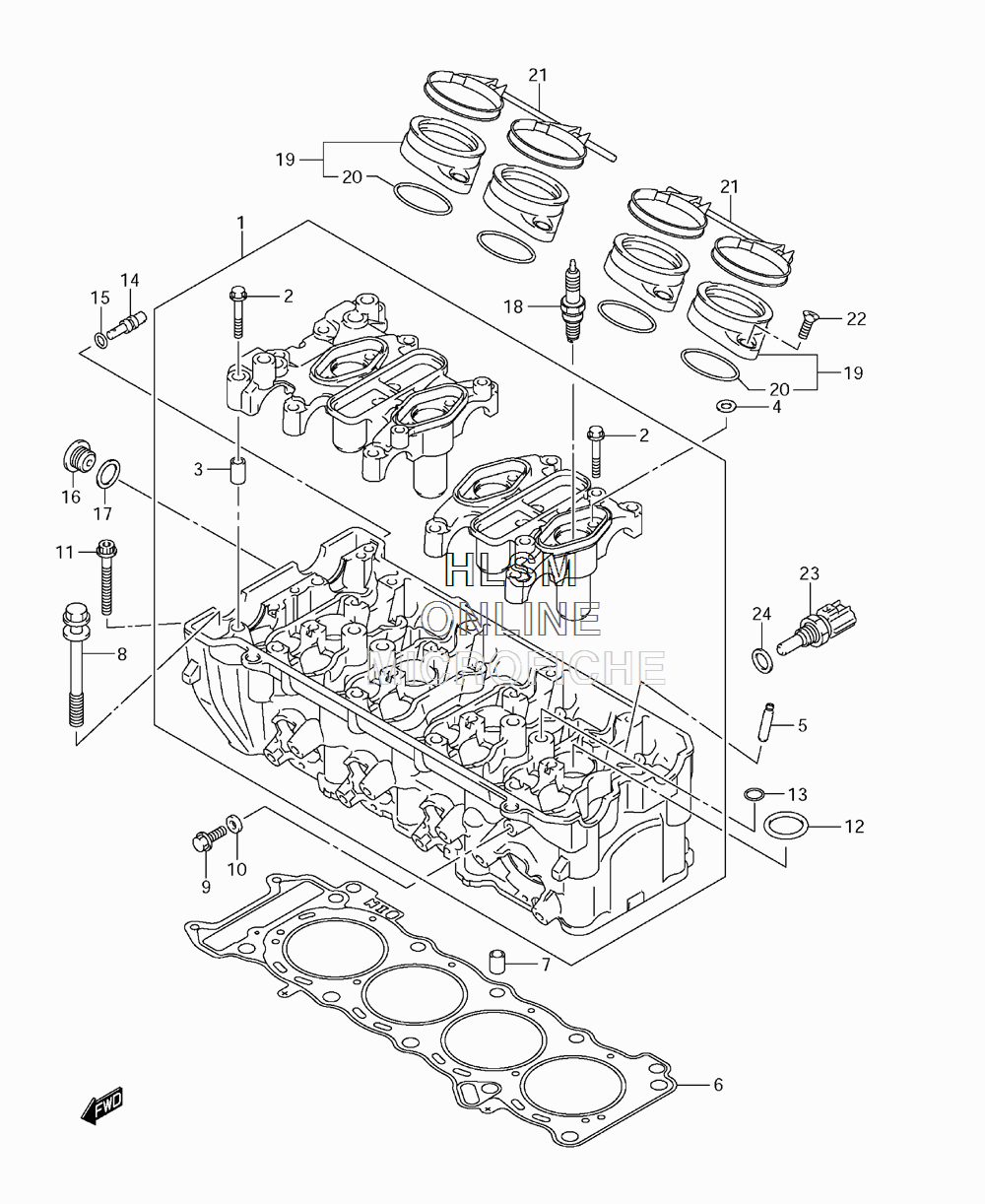

CYLINDER HEAD для Suzuki GSX-R750 L2 - 2012 года выпуска

№

Артикул

Название
1

11100-38H00 HEAD ASSY, CYLINDER

HEAD ASSY, CYLINDER
2

09103-06266 ...BOLT (6X40)

...BOLT (6X40)
3

09206-08007 ...PIN (6.2X8X16)

...PIN (6.2X8X16)
4

09168-06018 GASKET (6.2X13X1.2)

GASKET (6.2X13X1.2)
5

11115-29G70 GUIDE, VALVE (OS 0.5)

GUIDE, VALVE (OS 0.5)
6

11141-02H00 GASKET, CYLINDER HEAD

GASKET, CYLINDER HEAD
7

04211-11169 PIN

PIN
8

11117-29G00 BOLT (10X95)

BOLT (10X95)
9

09103-06222 BOLT (6X12)

BOLT (6X12)
10

09168-06023 GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)
11

07120-0650A BOLT

BOLT
12

11179-81402 O RING, SPARK PLUG PIPE

O RING, SPARK PLUG PIPE
13

09280-11001 O RING (D:2.4,ID:10.8)

O RING (D:2.4,ID:10.8)
14

09493-80005 JET, OIL (8)

JET, OIL (8)
15

09280-04004 O RING (D:1.2,ID:4)

O RING (D:1.2,ID:4)
16

09248-16012 PLUG

PLUG
17

09168-16009 GASKET (16X22X0.8)

GASKET (16X22X0.8)
18

09482-00558 SPARK PLUG (NGK,CR9EIA-9)

SPARK PLUG (NGK,CR9EIA-9)
18

09482-00557 SPARK PLUG (DENSO,IU27D)

SPARK PLUG (DENSO,IU27D)
18

09482-00556 SPARK PLUG (NGK,CR8EIA-9)

SPARK PLUG (NGK,CR8EIA-9)
18

09482-00560 SPARK PLUG (NGK,CR10EIA-9)

SPARK PLUG (NGK,CR10EIA-9)
18

09482-00555 SPARK PLUG (DENSO,IU24D)

SPARK PLUG (DENSO,IU24D)
18

09482-00559 SPARK PLUG (DENSO,IU31D)

SPARK PLUG (DENSO,IU31D)
19

13101-15J00 PIPE, INTAKE

PIPE, INTAKE
20

09280-46006 ...O RING (D:2.4,ID:47X42)

...O RING (D:2.4,ID:47X42)
21

13826-02H12 CLAMP, INTAKE PIPE

CLAMP, INTAKE PIPE
22

09120-06007 BOLT (6X18.4)

BOLT (6X18.4)
23

13650-49X00 SENSOR, WATER TEMPERATURE

SENSOR, WATER TEMPERATURE
24

09168-12017 GASKET (12X17X1)

GASKET (12X17X1)
