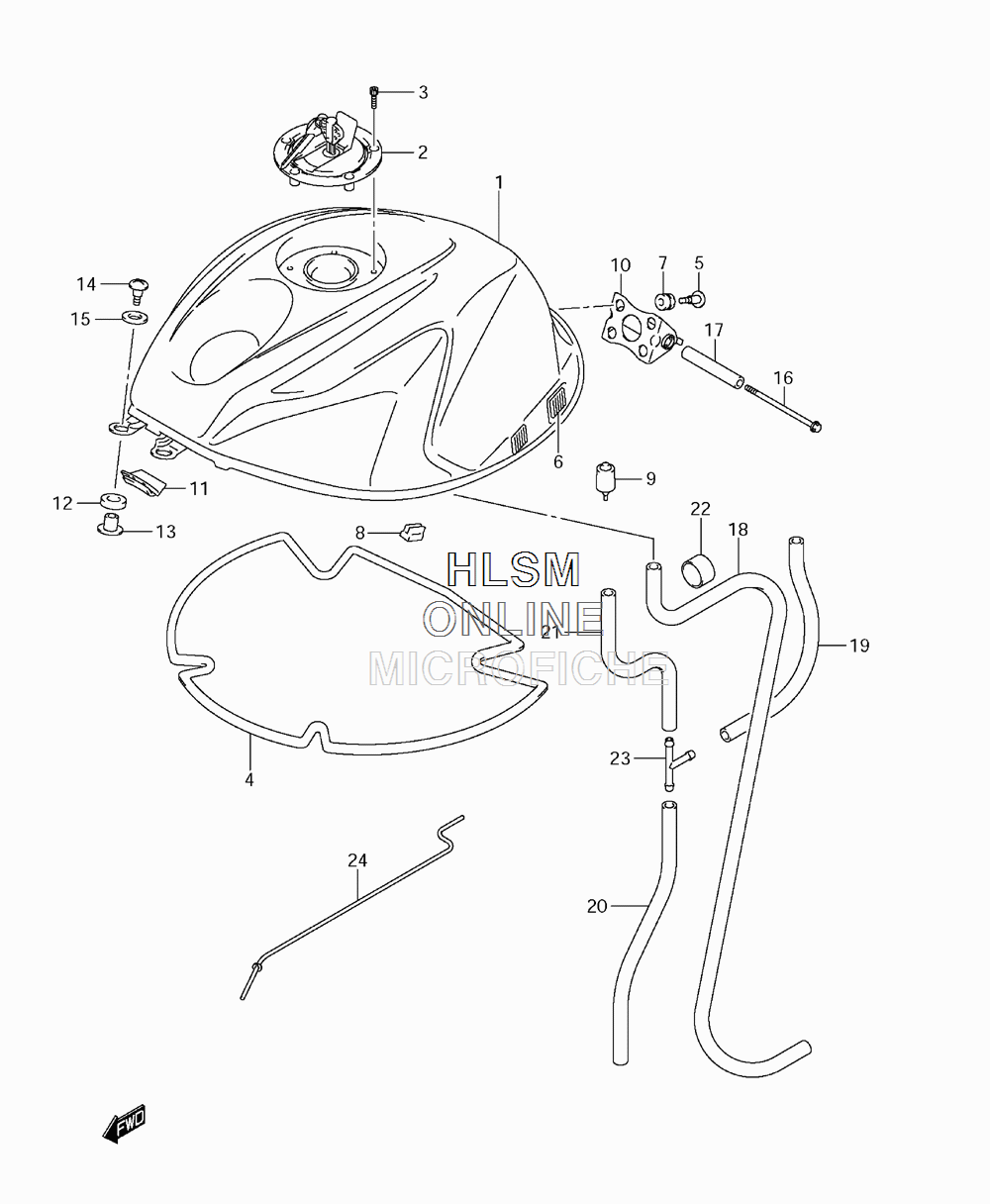

FUEL TANK (EXCEPT CALIF. ) для Suzuki GSX-R750 L2 - 2012 года выпуска
-
№АртикулНазвание
-
144100-14J30-YSF TANK ASSY, FUEL (YSF - TRITON BLUE FOR GLR)TANK ASSY, FUEL (YSF - TRITON BLUE FOR GLR)
-
144100-14J30-YMF TANK ASSY, FUEL (YMF - DAYTONA YELLOW FOR KGK)TANK ASSY, FUEL (YMF - DAYTONA YELLOW FOR KGK)
-
244200-16850 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
309106-05017 BOLT (5X20)BOLT (5X20)
-
444191-14J00 SHIELD, FUEL TANK HEATSHIELD, FUEL TANK HEAT
-
544543-14J00 SCREW, FUEL TANK REAR BRKTSCREW, FUEL TANK REAR BRKT
-
644572-13G00 FASTENER, COVERFASTENER, COVER
-
709320-08071 CUSHIONCUSHION
-
844276-21H00 CUSHION, TANK COVERCUSHION, TANK COVER
-
944542-41G00 CUSHION, REARCUSHION, REAR
-
1044530-41G00 BRACKET, REARBRACKET, REAR
-
1144546-44H00 RUBBER, TANK FRONTRUBBER, TANK FRONT
-
1244511-16G00 CUSHIONCUSHION
-
1344512-16G00 SPACER, TANK FRONTSPACER, TANK FRONT
-
1409139-06192 SCREW (6X25)SCREW (6X25)
-
1509160-06054 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
1609106-06119 BOLT (6X110)BOLT (6X110)
-
1744561-18G00 SPACER, TANK REARSPACER, TANK REAR
-
1844423-14J00 HOSE, DRAINHOSE, DRAIN
-
1944424-14J00 HOSE, BREATHER NO.1HOSE, BREATHER NO.1
-
2044424-14J10 HOSE, BREATHER NO.2HOSE, BREATHER NO.2
-
2144425-09E00 HOSE, BREATHER NO.3HOSE, BREATHER NO.3
-
2209352-12163-600 HOSE (12X16X600)HOSE (12X16X600)
-
2309367-06007 3 WAY3 WAY
-
2444574-35F00 STAY, FUEL TANKSTAY, FUEL TANK
-
3006111-07004 ...BALL...BALL
-
3143826-47H00 ...PLATE...PLATE
-
3208332-1106A ...E RING...E RING
-
3309280-08013 ...O RING,D:2.4,ID6.9...O RING,D:2.4,ID6.9
-
3409160-08091 ...WASHER,8.5X14X1...WASHER,8.5X14X1
-
3509106-08186 BOLT (8X23)BOLT (8X23)
