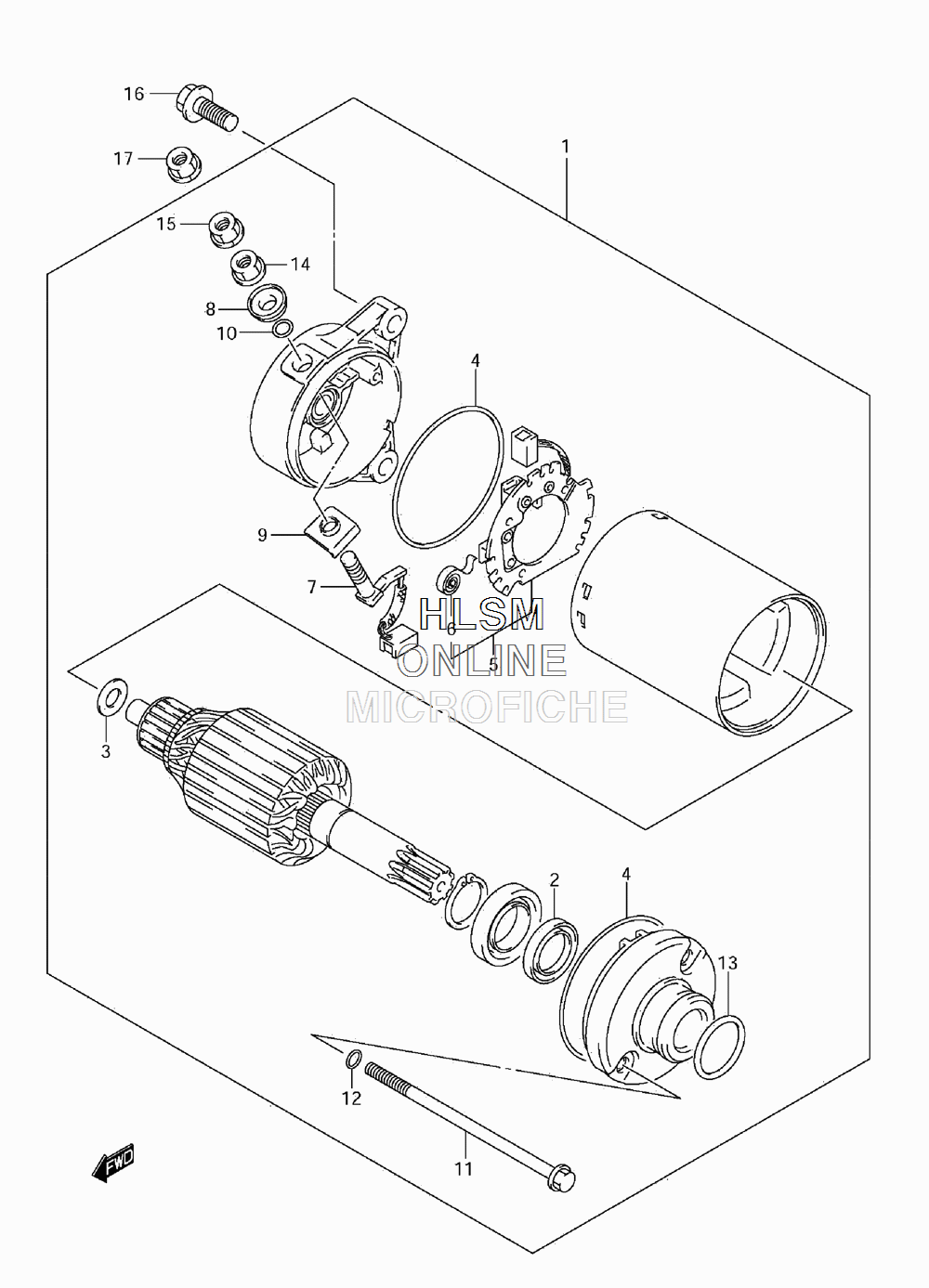

STARTING MOTOR для Suzuki TU-250 L1 - 2011 года выпуска
-
№АртикулНазвание
-
131100-38300-H17 MOTOR ASSY, STARTING (INCL. 2 - 15)MOTOR ASSY, STARTING (INCL. 2 - 15)
-
231153-49210 OIL SEALOIL SEAL
-
331170-43400 SHIM SETSHIM SET
-
431264-44110 O-RINGO-RING
-
531132-27A01 HOLDER, BRUSH (INC 6)HOLDER, BRUSH (INC 6)
-
631135-65010 SPRINGSPRING
-
731130-38300 BRUSH, PLUSBRUSH, PLUS
-
831172-38300 BUSHINGBUSHING
-
931171-38300 BUSH, BBUSH, B
-
1031143-38300 O-RINGO-RING
-
1131281-87402 BOLTBOLT
-
1231156-38300 O-RINGO-RING
-
1309280-24003 O RING (D:3,ID:24.5)O RING (D:3,ID:24.5)
-
1408310-00067 NUTNUT
-
1508361-3506A NUTNUT
-
1609103-06212 BOLT (6X25)BOLT (6X25)
-
1708361-3506A NUTNUT
