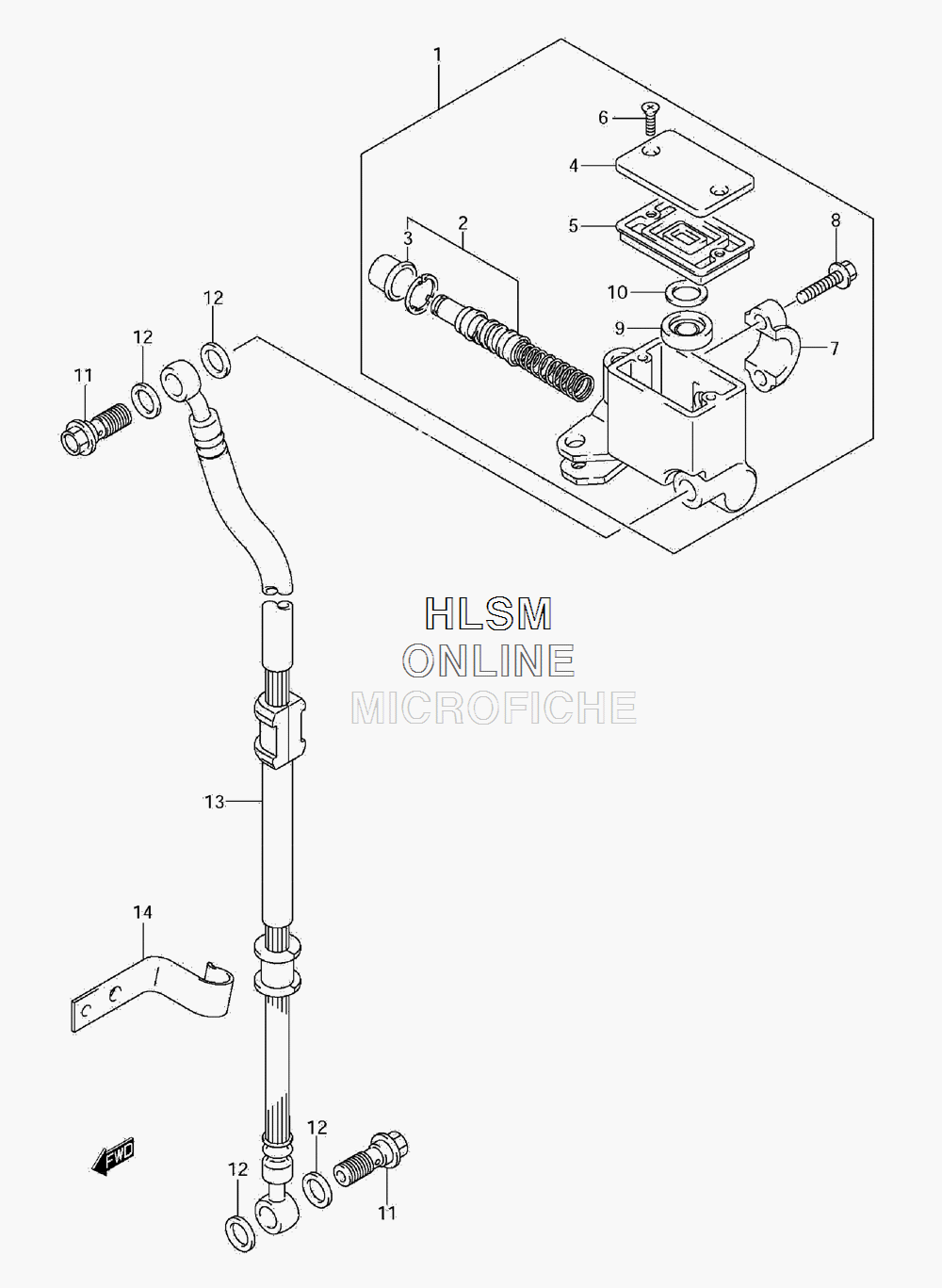

BRAKE - FRONT MASTER CYLINDER для Suzuki TU-250 L1 - 2011 года выпуска`
-
№АртикулНазвание
-
159600-31D20 CYLINDER ASSY, FRONT MASTER (INCL. 2 - 10)CYLINDER ASSY, FRONT MASTER (INCL. 2 - 10)
-
259600-04810 PISTON/CUP SET (INCL. 3)PISTON/CUP SET (INCL. 3)
-
359666-44300 BOOTBOOT
-
469669-20C00 CAPCAP
-
559667-44B00 DIAPHRAGMDIAPHRAGM
-
669689-49300 SCREWSCREW
-
759671-36500 HOLDER, MASTER CYLINDERHOLDER, MASTER CYLINDER
-
859675-19C00 BOLT, HOLDER (6X25)BOLT, HOLDER (6X25)
-
959748-15400 SEPARATORSEPARATOR
-
1059749-15400 PLATEPLATE
-
1109360-10062 UNIONUNION
-
1209161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1359480-26G01 HOSE, FRONT BRAKEHOSE, FRONT BRAKE
-
1459268-26G00 CLAMP, FR BRAKE HOSE LOWERCLAMP, FR BRAKE HOSE LOWER
