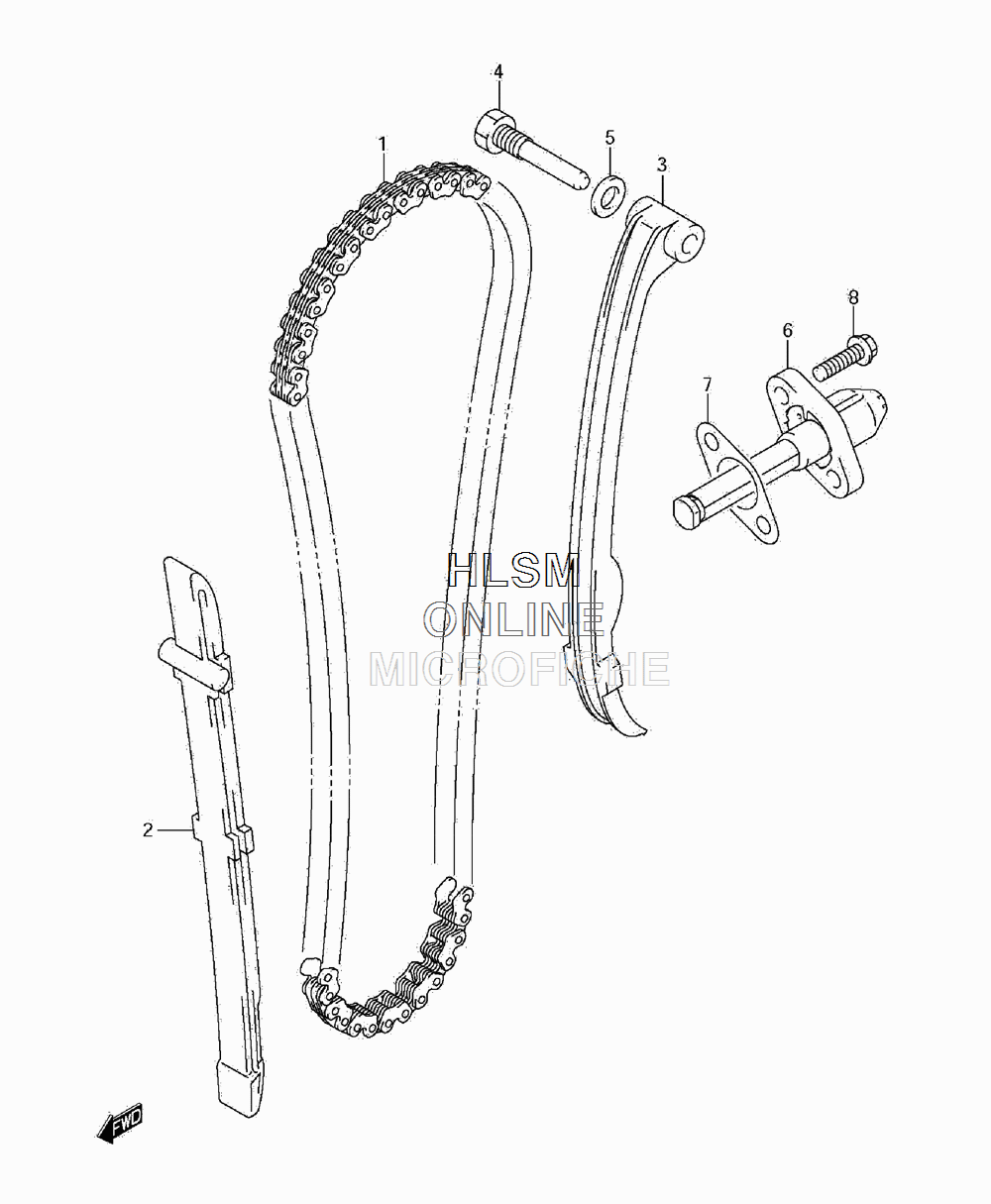

CAM CHAIN ASSY. W/ TENSIONER для Suzuki TU-250 L1 - 2011 года выпуска`
-
№АртикулНазвание
-
112760-26G00 CHAIN, CAMSHAFT DRIVECHAIN, CAMSHAFT DRIVE
-
212771-26G00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-26G00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
412812-32400 BOLTBOLT
-
509168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
612830-26G00 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
712837-32410 GASKETGASKET
-
809103-06223 BOLT (6X20)BOLT (6X20)
