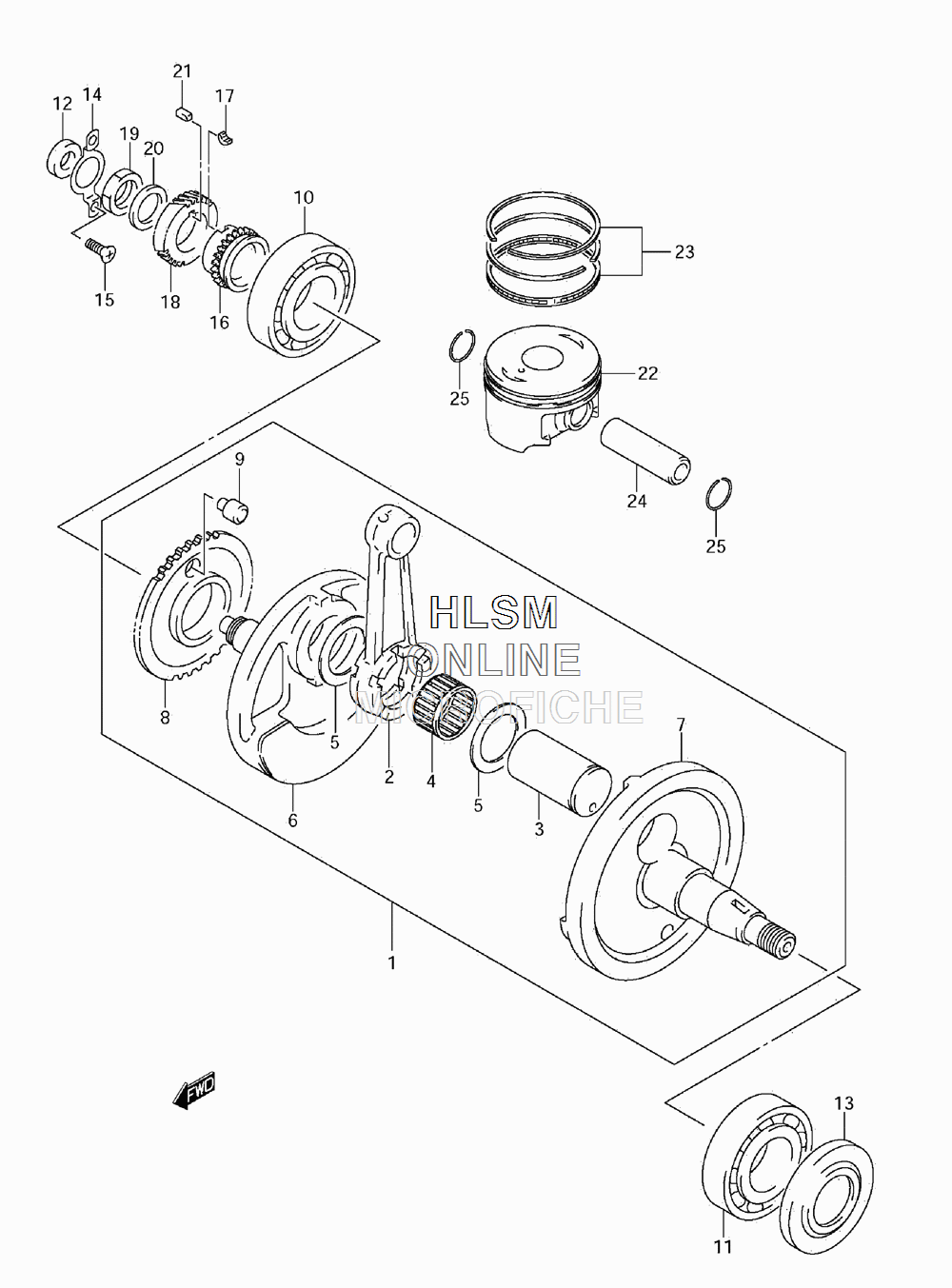

CRANKSHAFT W/ PISTON для Suzuki TU-250 L1 - 2011 года выпуска

№

Артикул

Название
1

12200-26G11 CRANKSHAFT ASSY (INCL. 2 - 9)

CRANKSHAFT ASSY (INCL. 2 - 9)
2

12161-38201 CONNROD

CONNROD
3

12211-38211 PIN, CRANK

PIN, CRANK
4

09263-31012-0B0 BEARING (31X39X21)

BEARING (31X39X21)
5

09160-31002 WASHER (31X48.5X1)

WASHER (31X48.5X1)
6

12221-26G10 CRANKSHAFT, RIGHT HAND

CRANKSHAFT, RIGHT HAND
7

12261-26G10 CRANKSHAFT, LEFT HAND

CRANKSHAFT, LEFT HAND
8

12661-38202 GEAR, CRANK BALANCER DRIVE

GEAR, CRANK BALANCER DRIVE
9

09209-12006 PIN

PIN
10

09262-30077 BEARING (30X72X19)

BEARING (30X72X19)
11

09262-35028 BEARING (35X80X21)

BEARING (35X80X21)
12

09282-14001 OIL SEAL (14X26X6)

OIL SEAL (14X26X6)
13

12521-38300 WASHER

WASHER
14

12548-38200 RETAINER

RETAINER
15

02122-0510B SCREW

SCREW
16

12731-26G00 SPROCKET, CAM CHAIN DRIVE

SPROCKET, CAM CHAIN DRIVE
17

12749-32400 KEY, CAM CHAIN DRIVE SPROCKET

KEY, CAM CHAIN DRIVE SPROCKET
18

21111-38200 GEAR, PRIMARI DRIVE

GEAR, PRIMARI DRIVE
19

09140-20013 NUT

NUT
20

09164-20003 WASHER

WASHER
21

09421-07002 KEY

KEY
22

12111-26G00-0F0 PISTON

PISTON
23

12140-49280 RING SET, PISTON

RING SET, PISTON
24

12151-15501 PIN

PIN
25

09381-18002 CIRCLIP

CIRCLIP
