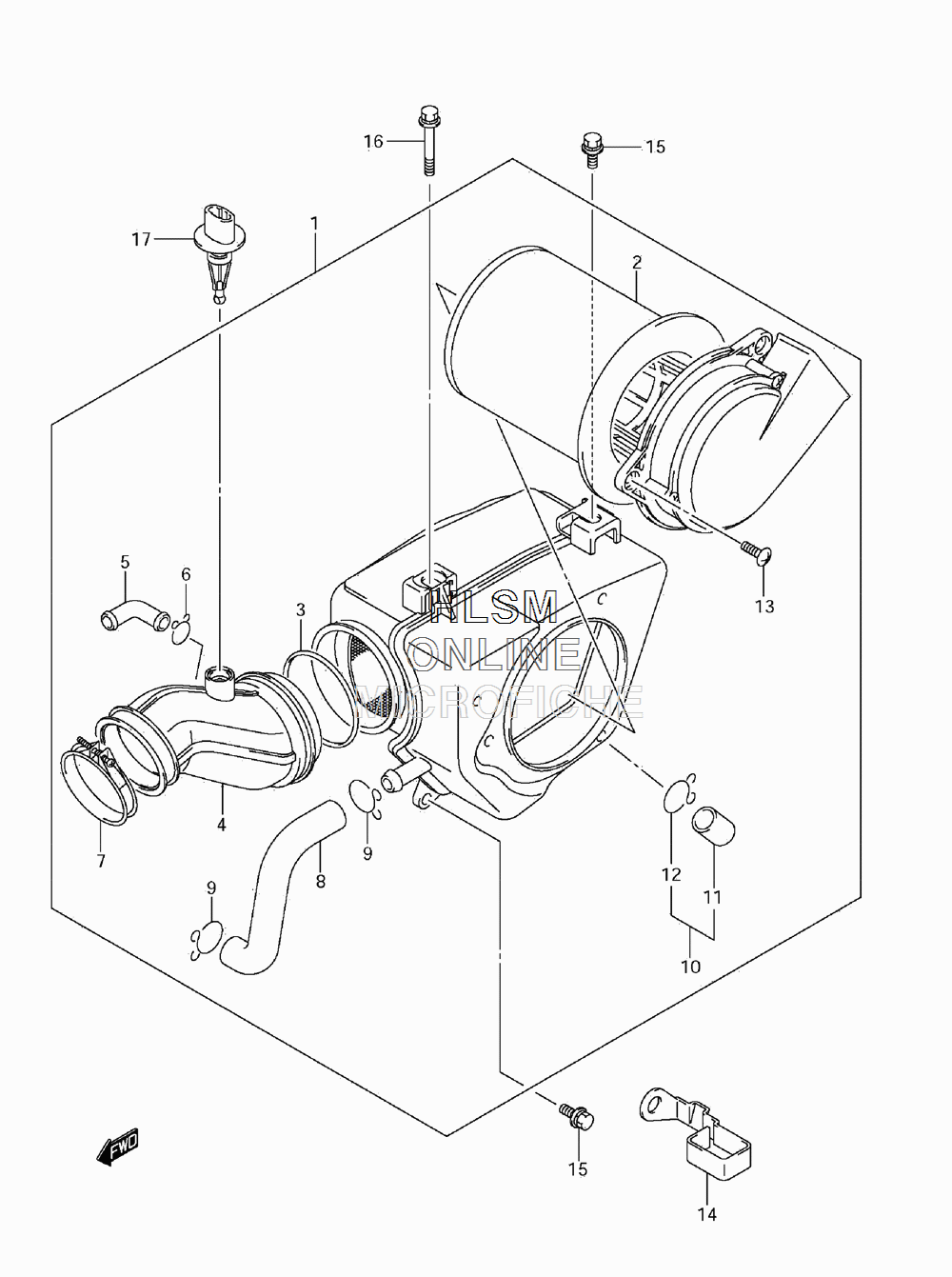

AIR CLEANER для Suzuki TU-250 L1 - 2011 года выпуска
-
№АртикулНазвание
-
113700-26GA2 CLEANER ASSY, AIR (INCL. 2 - 13)CLEANER ASSY, AIR (INCL. 2 - 13)
-
213780-38301 FILTERFILTER
-
313826-38300 CLAMP, AIR CLEANER SIDECLAMP, AIR CLEANER SIDE
-
413881-26GA0 TUBE, OUTLETTUBE, OUTLET
-
513858-14D20 JOINTJOINT
-
609401-14101 CLIPCLIP
-
713826-26GA1 CLAMPCLAMP
-
813853-38300 TUBE, BREATHERTUBE, BREATHER
-
909401-16401 CLIPCLIP
-
1013856-19B03 PLUG ASSY, DRAIN (INCL. 11 - 12)PLUG ASSY, DRAIN (INCL. 11 - 12)
-
1113859-41B10 PLUGPLUG
-
1209401-14101 CLIPCLIP
-
1302142-0512A SCREWSCREW
-
1413827-38300 CLAMPCLAMP
-
1501580-0616A BOLTBOLT
-
1601580-0640A BOLTBOLT
-
1713650-52G00 SENSOR, INLET AIR TEMPSENSOR, INLET AIR TEMP
