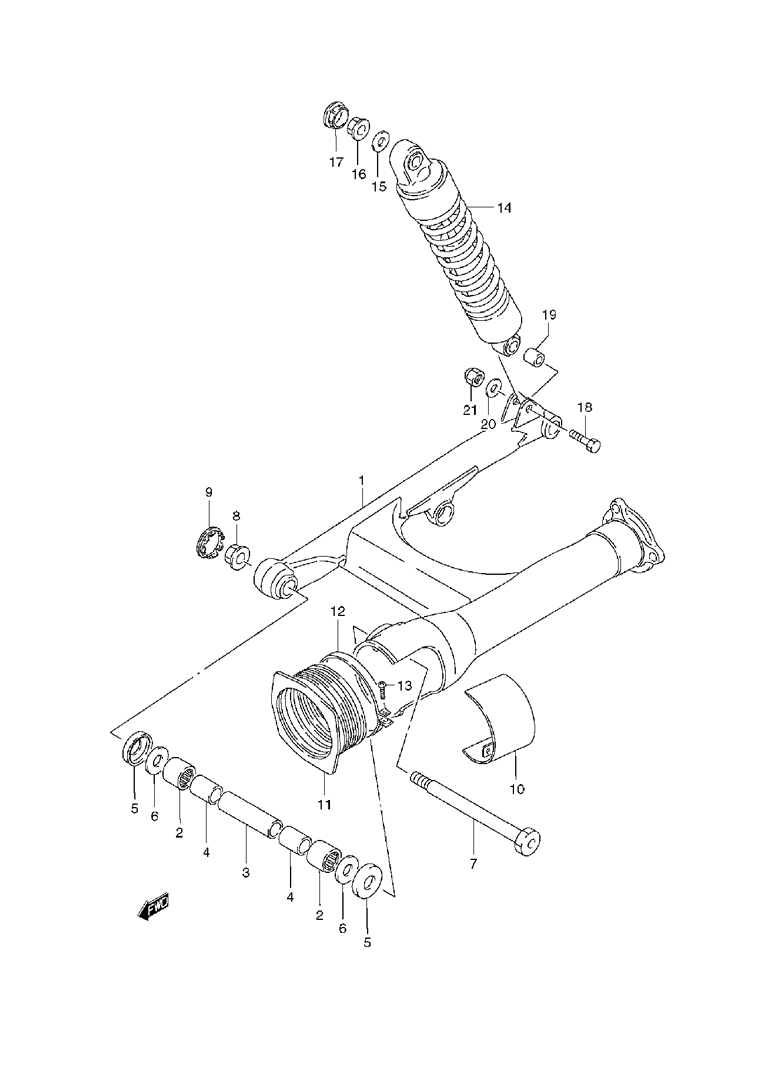

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki VS1400 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
161100-38B01-YAY SWINGING ARM, REAR (BLACK) (FOR YAY)SWINGING ARM, REAR (BLACK) (FOR YAY)
-
161100-38B01-YHG SWINGING ARM, REAR (GRAY) (FOR YHG)SWINGING ARM, REAR (GRAY) (FOR YHG)
-
209263-22017 BEARING (22X29X30)BEARING (22X29X30)
-
361282-38B00 SPACER, CENTERSPACER, CENTER
-
461251-38B00 SPACER, PIVOTSPACER, PIVOT
-
561262-14A00 DUST SEALDUST SEAL
-
608211-16341 THRUST WASHERTHRUST WASHER
-
761211-38B00 SHAFT, PIVOTSHAFT, PIVOT
-
808319-3114A NUTNUT
-
961222-38A01 CAP, RIGHT HANDCAP, RIGHT HAND
-
1061230-38B00-YAY CAP, LEFT HAND (BLACK) (FOR YAY)CAP, LEFT HAND (BLACK) (FOR YAY)
-
1061230-38B00-YHG CAP, LEFT HAND (GRAY) (FOR YHG)CAP, LEFT HAND (GRAY) (FOR YHG)
-
1161372-38B00 BOOT, SHAFTBOOT, SHAFT
-
1209402-92306-XC0 CLAMPCLAMP
-
1303211-0425B SCREWSCREW
-
1462100-38B10 ABSORBER ASSY, REAR SHOCKABSORBER ASSY, REAR SHOCK
-
1509160-10123 WASHER, UPPER (10.5X20X2.3)WASHER, UPPER (10.5X20X2.3)
-
1608316-1010B NUTNUT
-
1795672-24A00 CAP, UPPERCAP, UPPER
-
1809100-10247 BOLT, LOWER RIGHT HAND (10X39)BOLT, LOWER RIGHT HAND (10X39)
-
1909180-10139 SPACER, LOWER RIGHT HAND (10.2X14X20.7)SPACER, LOWER RIGHT HAND (10.2X14X20.7)
-
2009160-10093 WASHER, LOWER (10.5X24X2.3)WASHER, LOWER (10.5X24X2.3)
-
2108313-10107 NUTNUT
