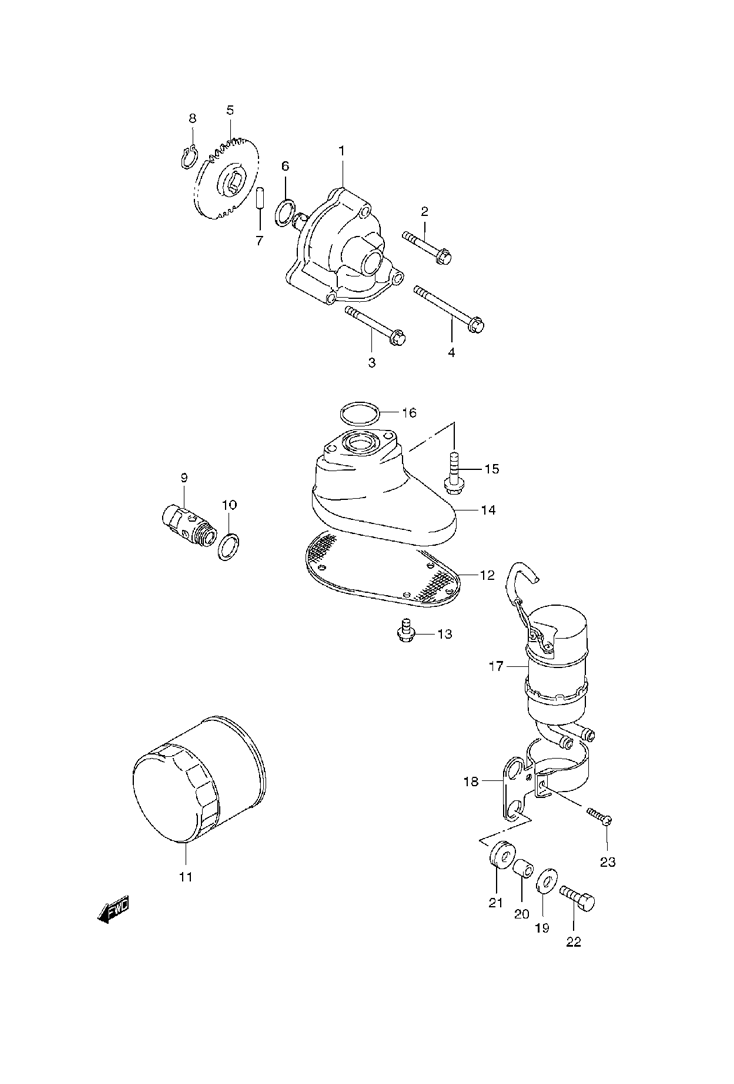

OIL PUMP - FUEL PUMP для Suzuki VS1400 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
116400-38B00 PUMP ASSY, OILPUMP ASSY, OIL
-
201547-0645B BOLTBOLT
-
301547-0655B BOLTBOLT
-
401547-0665B BOLTBOLT
-
516331-38B01 GEAR, OIL PUMP DRIVEN (NT:31)GEAR, OIL PUMP DRIVEN (NT:31)
-
609181-12158 WASHERWASHER
-
709261-05006 PINPIN
-
808331-31126 CIRCLIPCIRCLIP
-
916440-17C20 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
1009168-16002 GASKETGASKET
-
1116510-03G00-X07 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1216520-38B10 STRAINER, OILSTRAINER, OIL
-
1301550-0510A BOLTBOLT
-
1416525-38B10 HOLDER, OIL STRAINERHOLDER, OIL STRAINER
-
1501550-0625A BOLTBOLT
-
1609280-22008 O RING (D:3.1,ID:22.7)O RING (D:3.1,ID:22.7)
-
1715100-38A00 PUMP ASSY, FUELPUMP ASSY, FUEL
-
1815110-38B01 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
1909160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
2009180-06286 SPACER (6.5X10X9.4)SPACER (6.5X10X9.4)
-
2109320-10015 CUSHIONCUSHION
-
2201500-0625B BOLTBOLT
-
2302142-04167 SCREWSCREW
